Installing

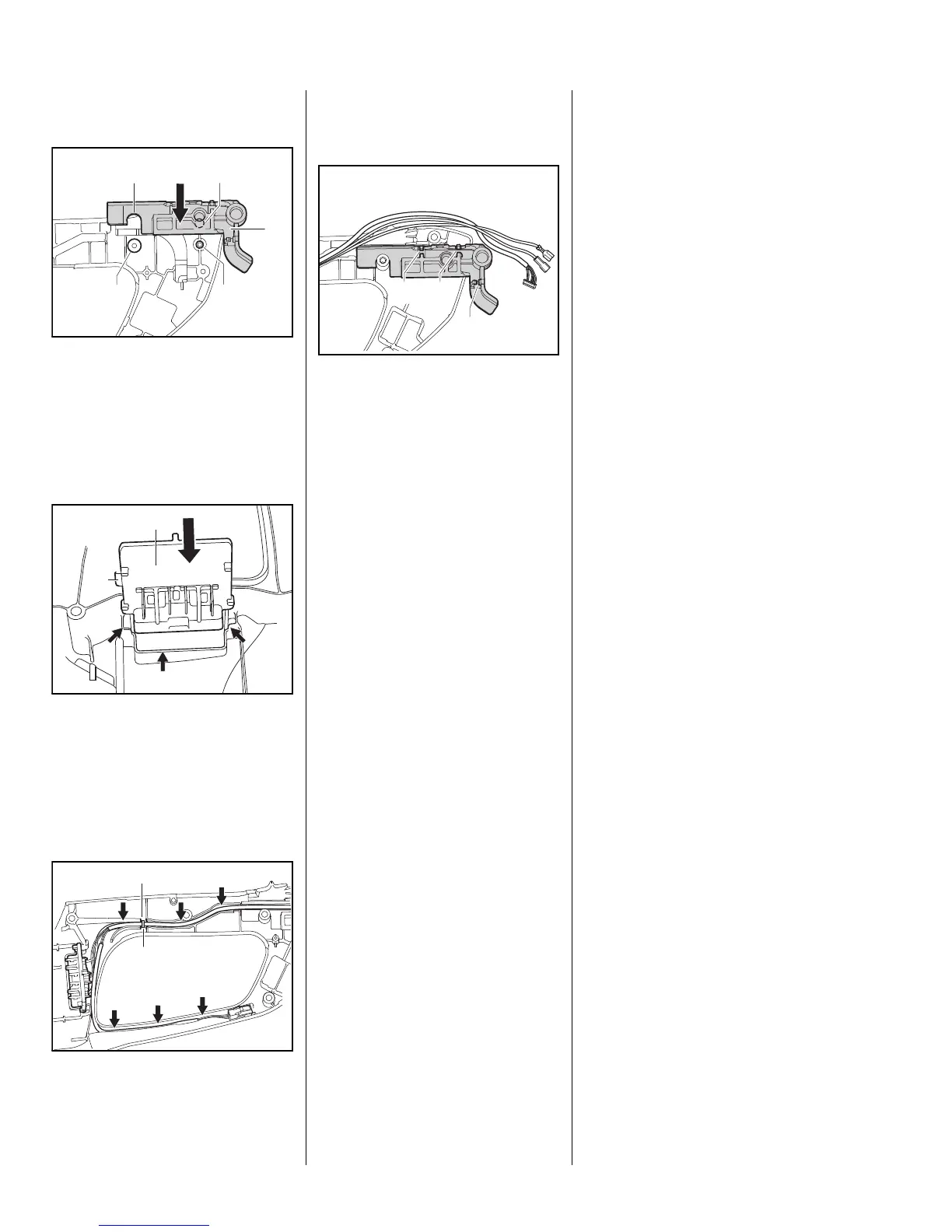

: Fit the adapter (1) in the left half
of the handle housing.
Engage recess (2) on large peg (3)
and recess (4) on the smaller
peg (5).
: Fit the contact plate (1) in the
guides (arrows) in the handle
molding and clamp it securely.
The lug (2) on the contact plate
locates behind the housing wall.
: Lay the wiring harness in the
guides in the handle housing.
9927RA046 GM
35
24
1
9927RA048 BL
1
2
1
2
9927RA047 GM
The cable tie (1) fits in the
recess (2).
: Fit wiring harness in the
guides (1, 2, 3) in the adapter.
Guides 1 and 2: Red and black
wires at the bottom and the wire
with connector on top.
Guide 3: Wire with connector at
bottom, then the red wire and the
black wire on top.
– Reassemble all other parts in the
reverse sequence.
9927RA049 GM
1 2
3

Stihl BGA 85 Specifications

General

Battery Type	Lithium-Ion
Air Velocity	69 m/s
Air Volume	844 m³/h
Weight	3.2 kg (without battery)
Sound Pressure Level	83 dB(A)
Battery Technology	Lithium-Ion
Power source	Battery
Voltage	36 V
Type	Handheld blower
