22 BT 130

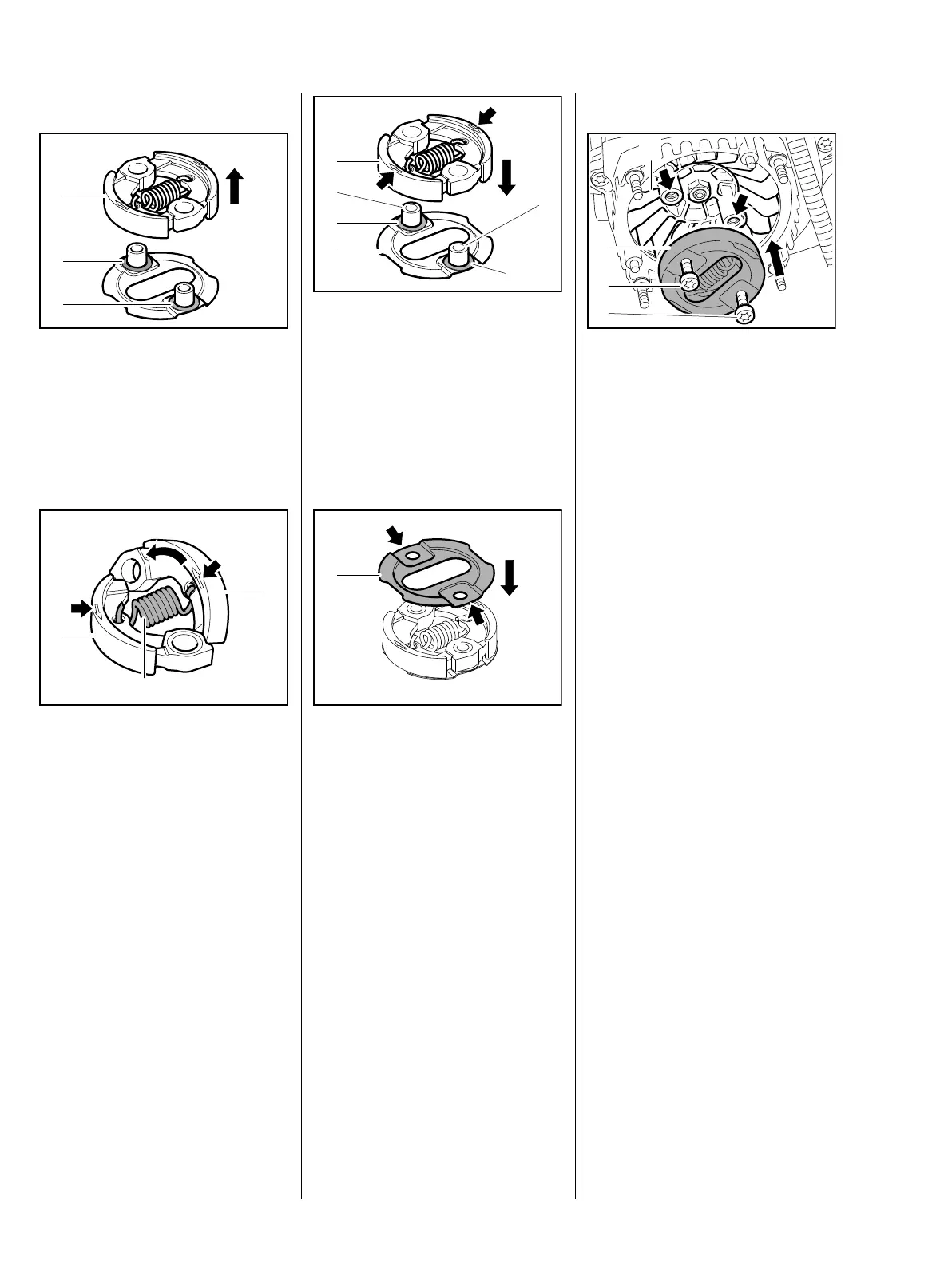

Disassembling
Remove the upper cover washer.
: Pull the clutch (1) off the lower
cover washer.
: Remove the washers (2).
: Fold the clutch shoes (1) and
unhook the spring (2).
Assembling
Position the clutch shoes (1) so that
the markings (arrows) are visible.
The spring (2) must be hooked into
the front of the clutch shoes (1).
Reassemble the clutch shoes in
the reverse sequence.
9912RA383 TG
1
2
2
0208RA011 TG
1
2
1
: Fit the washers (1) over the
sleeves.
: Position the clutch (2) so that the
marks (arrows) face up.
: Push clutch (2) onto sleeves (3)
of lower cover washer (4).
: Fit upper cover washer (1) so that
the recesses (arrows) face up
and the holes are in alignment.
Inspect the brake band and
replace if necessary, b 5.2
0208RA012 TG
1
1
2
3
3
4
0208RA013 TG
1
Installing
: Position clutch (1) with cover
washers on the tapped holes
(arrows) in the flywheel (2).
: Insert and tighten down the
screws (3) firmly.
Remove the locking screw from
the cylinder.
Fit the spark plug and tighten it
down firmly.
Fit the boot on the spark plug.
Reassemble all other parts in the
reverse sequence.
9912RA024 TG
2
3
1
3
