10.1.1 Throttle Trigger / Lockout
Lever

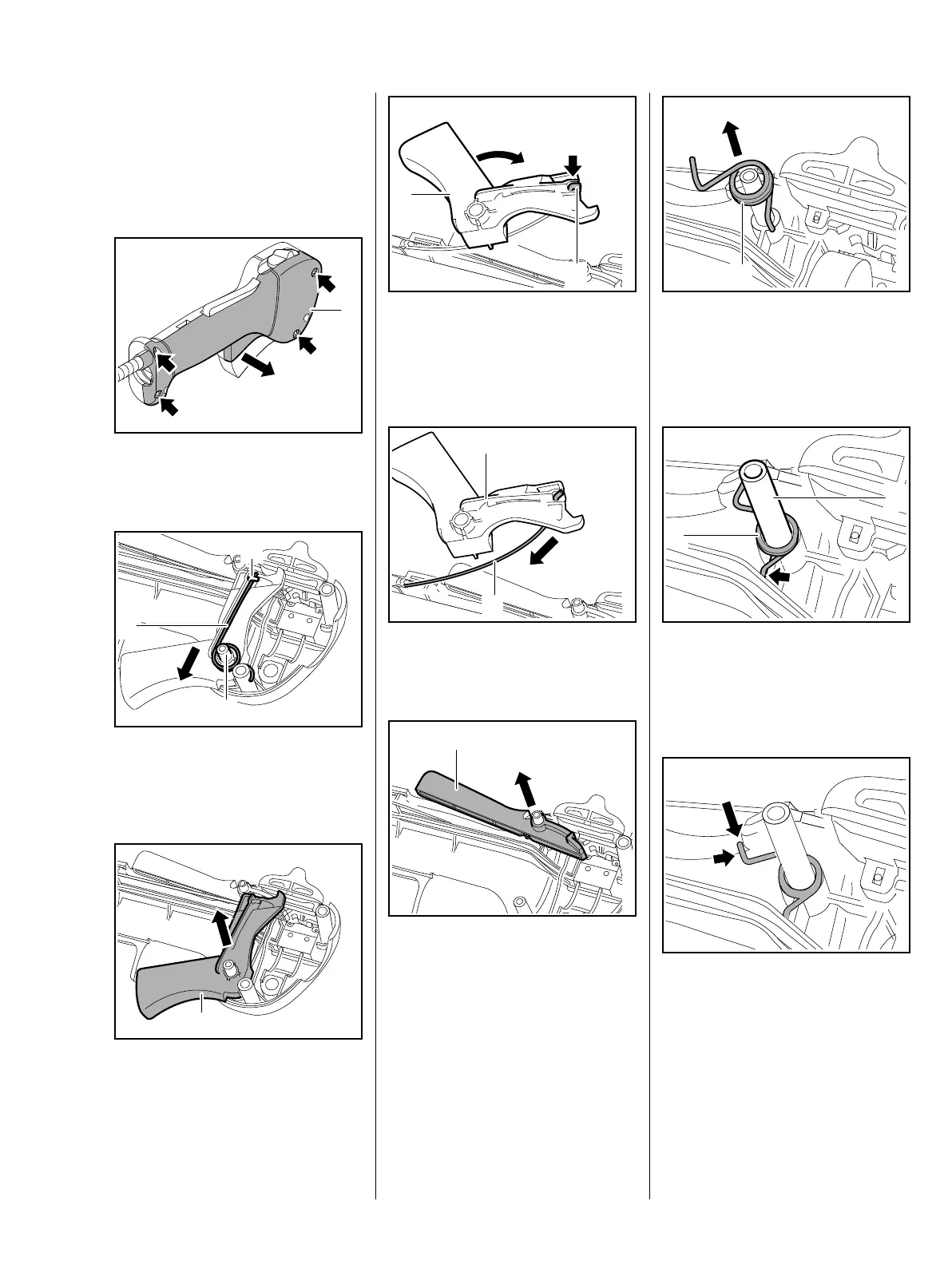

– To install the lockout lever, pull
out the handlebar, b 10.1
: Take out the screws (arrows) and
remove the handle molding (1).
: Remove the torsion spring (1)
from the guide (2) and pull it out
from under the throttle cable (3).
: Remove the throttle trigger (1).
1
9912RA295 TG
2
1
3
9912RA278 TG
9912RA279 TG
1
: Turn the throttle trigger (1) 90°
clockwise until the hook (2) on
the throttle cable locates against
the face (arrow).
: Disconnect the throttle cable (1)
from the trigger (2).
: Carefully remove the lockout
lever (1) – tension of torsion
spring is suddenly relieved.
1
2
9912RA280 TG
1
2
9912RA281 TG
9912RA282 TG
1
: Remove the torsion spring (1)
– the side control may pop out.
Installing
: Fit the torsion spring (1) on the
pivot pin (2) so that its lower, bent
leg butts against the web (arrow)
on the left.
: Push the upper leg (arrow) of the
torsion spring towards the
handlebar and hold it there.
1
9912RA283 TG
1
2
9912RA284 TG9912RA285 TG
