Stihl FS 111 R User Manual

FS 111, FS 111 R
English
21

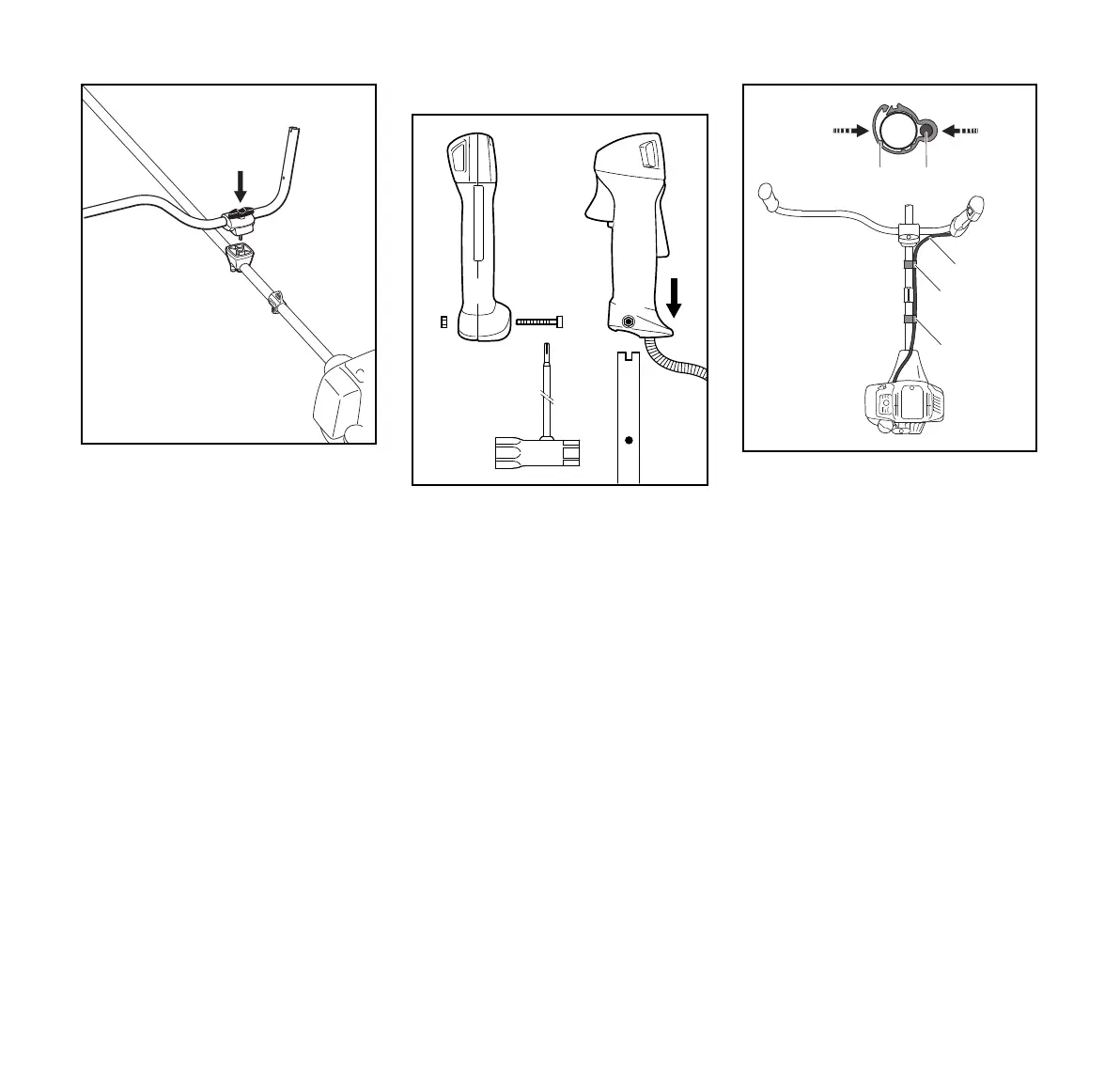

N Place the secured assembly on the
handle support (8) with the wing
screw at the side nearest the
engine.
N Push the wing screw into the handle
support as far as stop and then
screw it down – but do not finally
tighten yet.
N Line up the handlebar at a right
angle to the drive tube – check
distance A again.
N Tighten down the wing screw firmly.
Mounting the Control Handle
N Take out the screw (9) – the nut (10)
remains in the control handle (11).
N Push the control handle onto the
handlebar (7) until the holes (13)
line up – the throttle trigger (12)
must point towards the gearbox.
N Insert the screw (9) and tighten it
down firmly.
Fitting the Throttle Cable
NOTICE
Do not kink the throttle cable or lay it in
tight radii – make sure the throttle trigger
moves freely.
N Position the clamp (15) and handle
support (14) against the drive tube.
N Close the throttle cable
retainer (15). The retainer (15)
snaps into place.
Adjusting the Throttle Cable
N Check adjustment of throttle cable –
see chapter on "Adjusting the
Throttle Cable".
0000-GXX-0510-A0
8
13
9
11
12
7
13
0000-GXX-0511-A0
10
15
15
15
14
14
0000-GXX-0512-A1

Stihl FS 111 R Specifications

General

Engine Displacement	31.4 cc
Power Output	1.05 kW
Cutting Width	420 mm
Sound Power Level	107 dB(A)
Engine Power	1.4 bhp
Shaft Type	Straight
Vibration Damping	Yes
Anti-Vibration System	Yes
Overall Length	180 cm
Fuel Capacity	0.71 l
Fuel Tank Capacity	0.71 l
