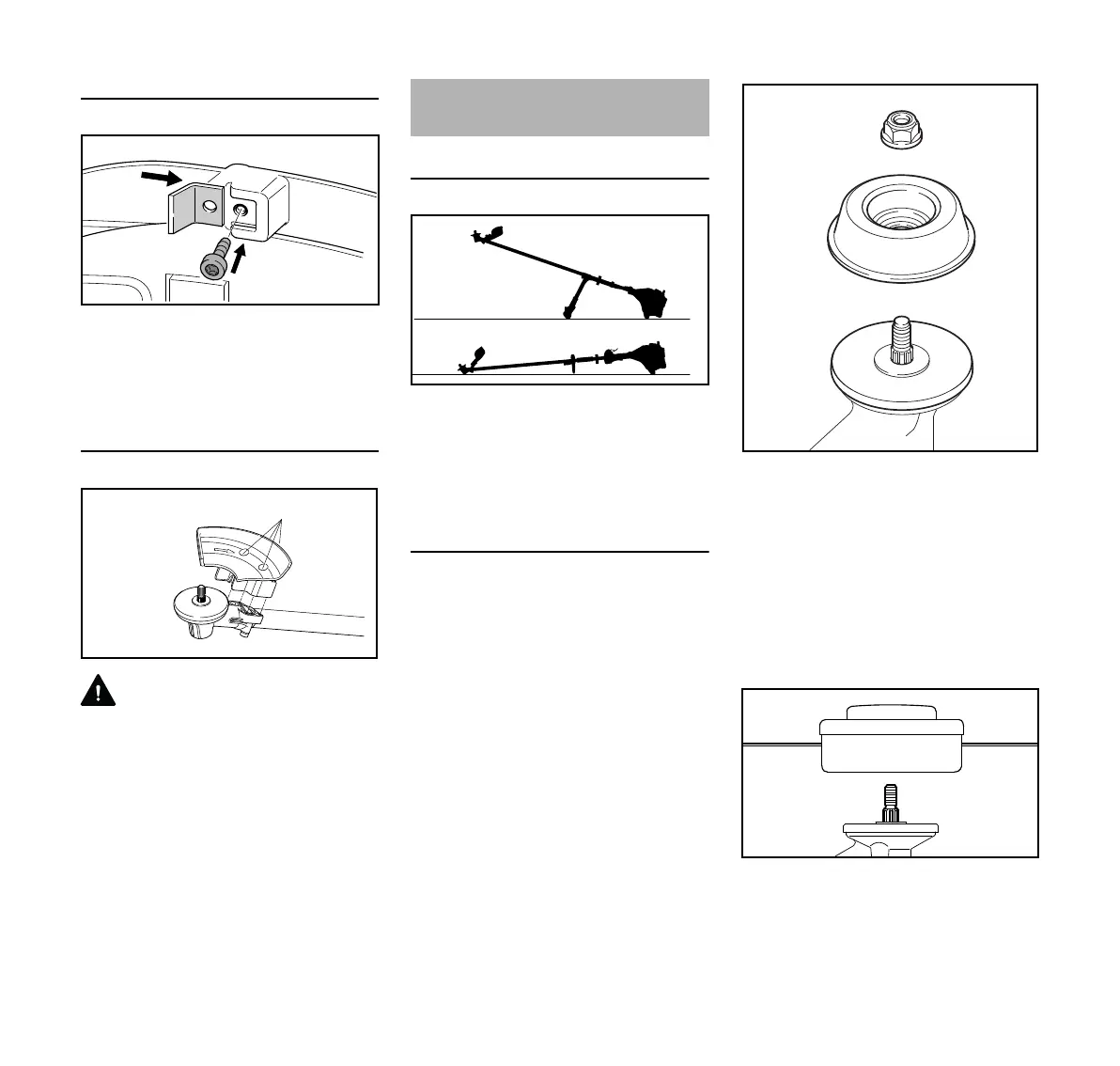

Mounting the Blade
N Slide the line limiting blade into the
guide on the skirt.
N Insert the screw and tighten it down
firmly.
Mounting the Limit Stop
WARNING
Risk of injury from thrown objects and
contact with the cutting attachment.
Always fit the limit stop (6) when you use
a circular saw blade.
N Position the limit stop (6) on the
gearbox flange.
N Insert the screws (7) and tighten
them down firmly.
Placing power tool on the ground
N Shut off the engine.
N Lay your power tool on its back so
that the cutting attachment
mounting face is pointing up.
Mounting Hardware for Cutting
Attachments
The mounting hardware supplied
depends on the cutting attachment that
comes as original equipment with the
new machine.
Machine supplied with mounting
hardware
Mowing heads and metal cutting
attachments may be mounted.
Depending on the cutting attachment, it
may be necessary to use the nut (3) and
rider plate (2). The thrust plate (1) must
be used with all cutting attachments.
These parts are included in a kit
supplied with the machine and are also
available as special accessories.
Machine supplied without mounting
hardware
Only mowing heads may be used which
mount directly to the shaft (2).
002BA638 KN
7
002BA639 KN
6
Mounting the Cutting
Attachment
002BA104 KN
1
0000-GXX0500-A0
3
2
2
002BA266 KN

Stihl FS 111 R Specifications

General

Engine Displacement	31.4 cc
Power Output	1.05 kW
Cutting Width	420 mm
Sound Power Level	107 dB(A)
Engine Power	1.4 bhp
Shaft Type	Straight
Vibration Damping	Yes
Anti-Vibration System	Yes
Overall Length	180 cm
Fuel Capacity	0.71 l
Fuel Tank Capacity	0.71 l
