Stihl FS 111 R User Manual

FS 111, FS 111 R
English
22

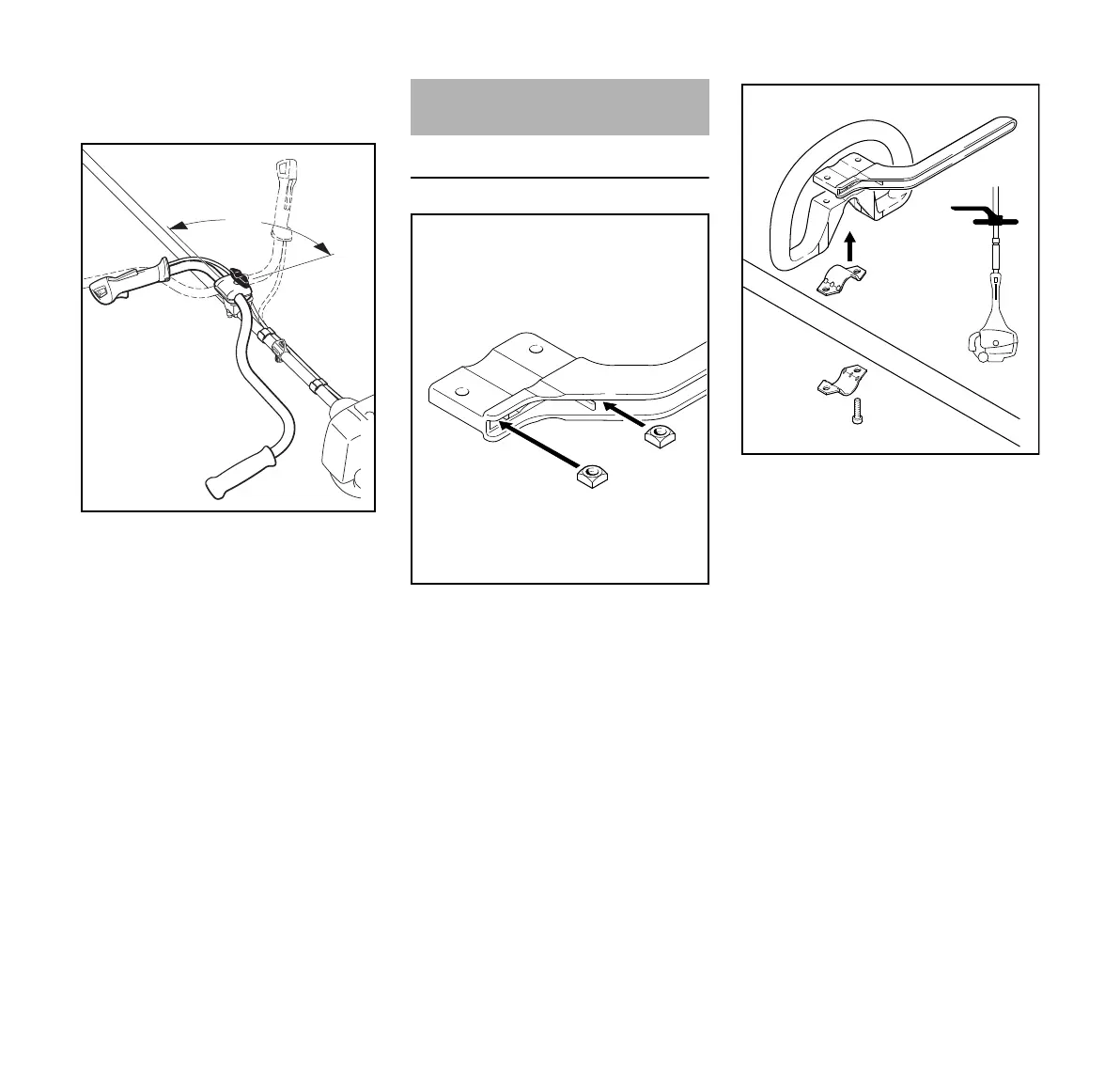

Swiveling the Handlebar
Transport position
N Loosen the wing screw (3) and
unscrew it until the handlebar (7)
can be rotated.
N Rotate the handlebar 90°
counterclockwise and then swing
the handles down.
N Tighten down the wing screw (3)
firmly.
Working position
N Reverse the sequence described
above to swing the handles up and
turn the handlebar clockwise.
Mounting Loop Handle with Barrier Bar
N Fit the square nuts (1) in the barrier
bar (2); the holes must line up.
N Place the clamp (3) in the loop
handle (4) and position them both
against the drive tube (5).
N Position the clamp (6) against the
drive tube.
N Place the barrier bar (2) in position
as shown.
N Line up the holes.
N Insert the screws (7) in the holes
and screw them into the barrier
bar (2) as far as stop.
N Go to "Securing the Loop Handle".
3
7
90°
0000-GXX-0513-A1
Mounting the Loop Handle
2
002BA098 KN
1
1
5
4
002BA099 KN
2
3
6
7

Stihl FS 111 R Specifications

General

Engine Displacement	31.4 cc
Power Output	1.05 kW
Cutting Width	420 mm
Sound Power Level	107 dB(A)
Engine Power	1.4 bhp
Shaft Type	Straight
Vibration Damping	Yes
Anti-Vibration System	Yes
Overall Length	180 cm
Fuel Capacity	0.71 l
Fuel Tank Capacity	0.71 l
