5/20/2018
STIHL FS 350 Service manual.pdf - slidepdf.com
http://slidepdf.com/reader/full/stihl-fs-350-service-manualpdf 55/63

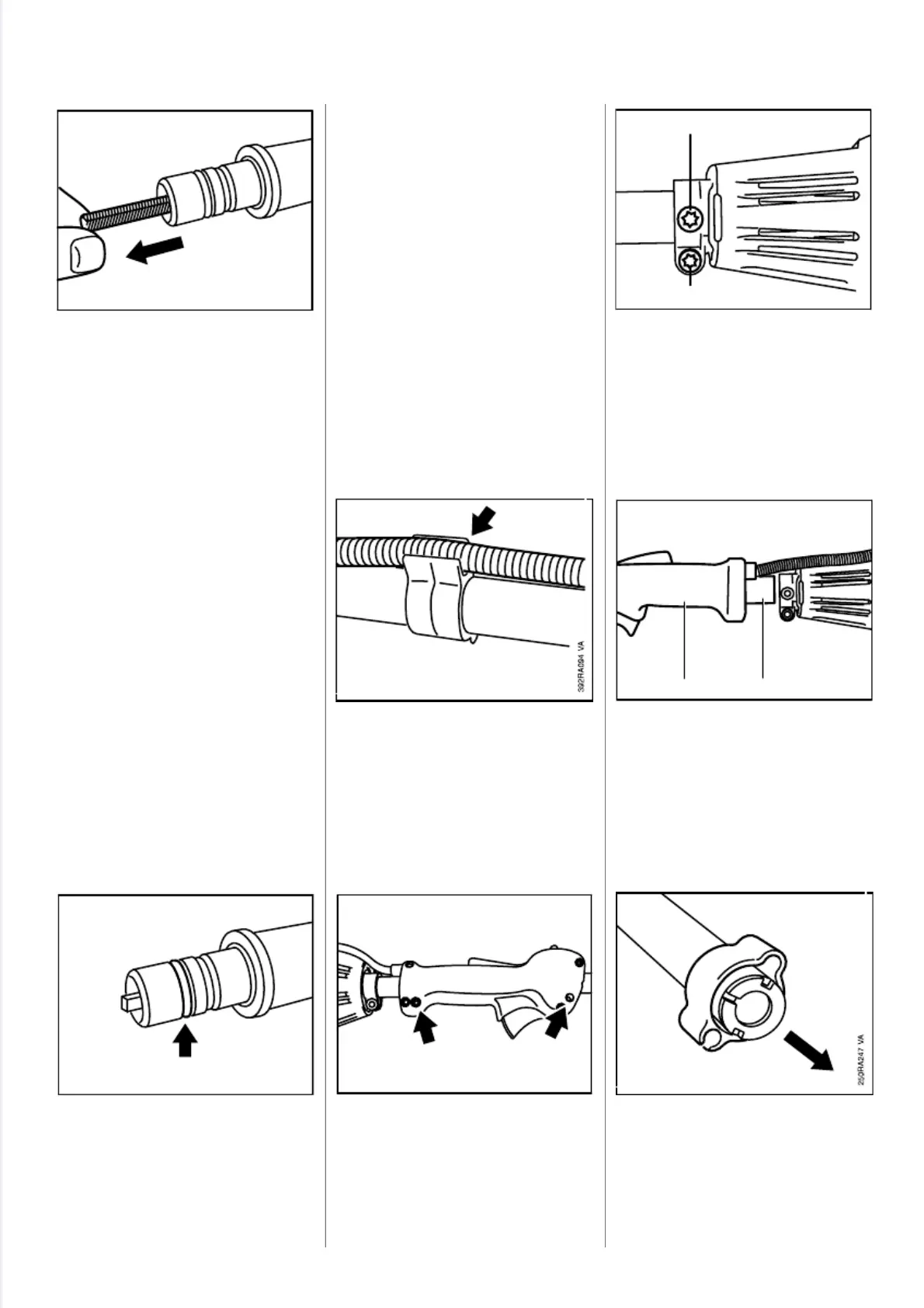

Pull flexible shaft out of the
drive tube.
Note:If flexible shaft has turned
blue, fit a new one.
- Coat the flexible shaft with
STIHL gear lubricant 0781 120
1109, see 13.2, before installa-
tion.
Important:Apply the grease
uniformly and thinly to the whole
shaft. Do not pump grease directly
into the drive tube.
Inspect the 0-ring and fit a new
one if necessary.
- Install flexible shaft and fit
throttle cable in the retainers.
FS 120/200
- Remove the drive shaft - see
10.4.
- Remove the bike or loop handle -
see 10.1 and 10.3.
On machines with bike handle,
take throttle cable out of
retainers.
On machines with loop handle,
release screws on control handle
clamps.
Take the fixing screw (1) out of
the AV sleeve.
Release the clamp screw (2).
- Pull out the drive tube.
On machines with loop handle,
pull the drive tube (1) out of the
control handle (2) at the same
time.
Slip the throttle cable retainer, if
fitted, off the drive tube.
3
9
2
R
A
1
2
9
V
A
2
1
3
9
2
R
A
1
5
6
2
1
V
A
10.6 Drive Tube
2
5
0
R
A
2
0
6
V
A
3
6
2
R
A
1
7
4
3
6
2
R
A
1
7
4
V
A
3
6
2
R
A
1
7
5
3
6
2
R
A
1
7
5
V
A
54 FS 120, 200, 300, 350, 400, 450, FR 350, 450
