22
English / USA
FS 130, FS 130 R

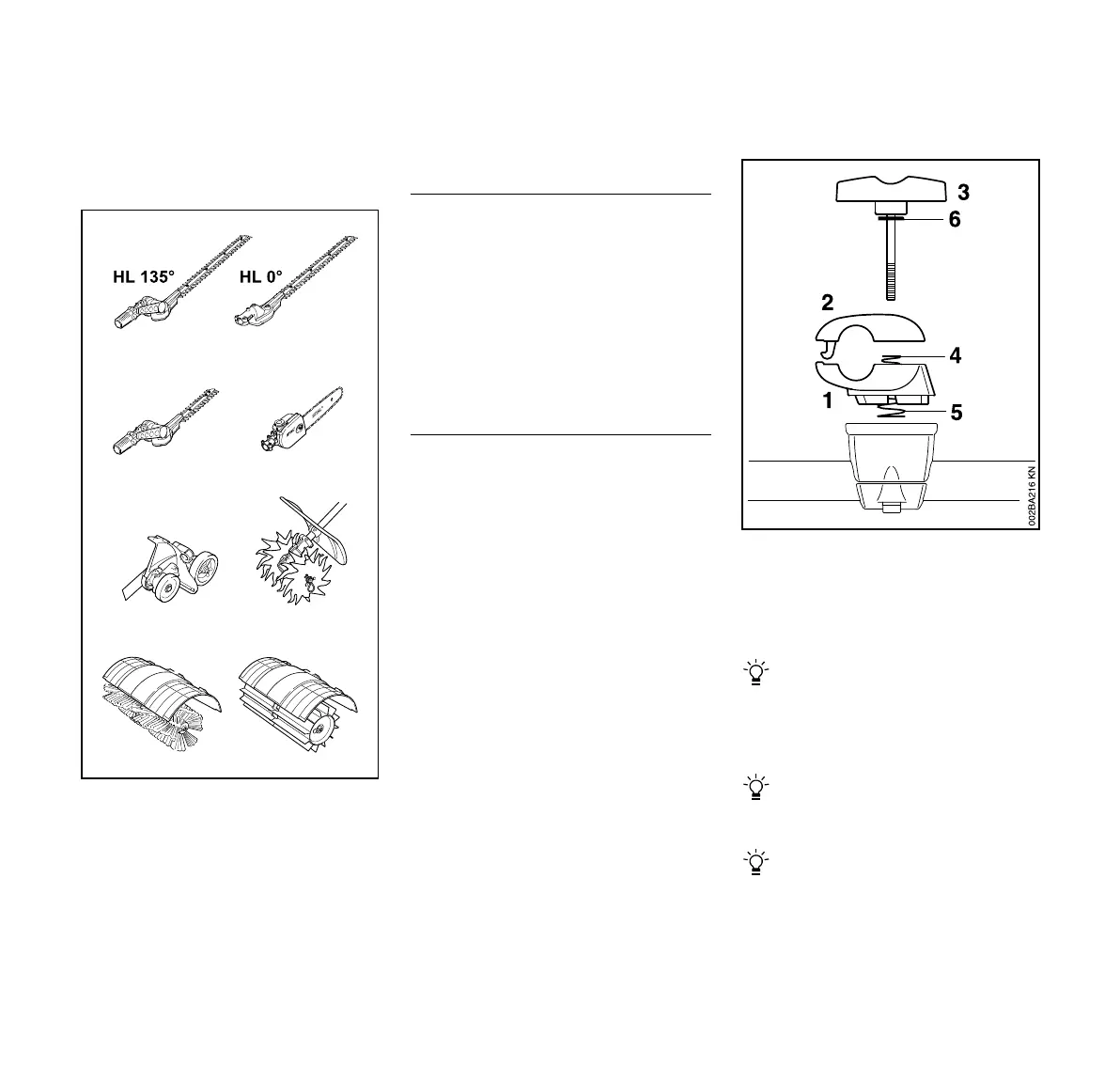

The following STIHL attachments may
be mounted to the basic power tool:
STIHL power tool attachments are
available for converting the single
purpose FS unit into other power tool
combinations.
1)
Barrier bar must be fitted on the
loop handle
2)
Not approved for use with bike-
handled units
3)
It is not necessary to use a shoulder
strap
Removing Clamp Moldings
: Hold the lower clamp (1) and upper
clamp (2) firmly.
: Release the wing screw (3).
The clamps are loose once the wing
screw has been released. They are
pushed apart by the two springs (4
and 5).
: Pull out the wing screw.
Washer (6) remain at the tommy
screw .
: Separate the clamps.
Springs (4) and (5) remain in the
lower clamp.
Approved Power Tool
Attachments
228BA037 KN
BF
FH
FCS
KB
KW
HT
Attachment Application
BF
1)
Cultivator
FCS
2)3)
Power Edger
FH
1)
Power Scythe
HL 0°
2)
Hedge Trimmer
HL 135°
1)2)
Hedge Trimmer
(adjustable)
HT
2)
Pole Pruner
KB (4601)
2)
Bristle Brush
KW (4601)
2)
PowerSweep
KW (4602)
2)
PowerSweep
Mounting the Bike Handle
