23FS 130, FS 130 R
English / USA

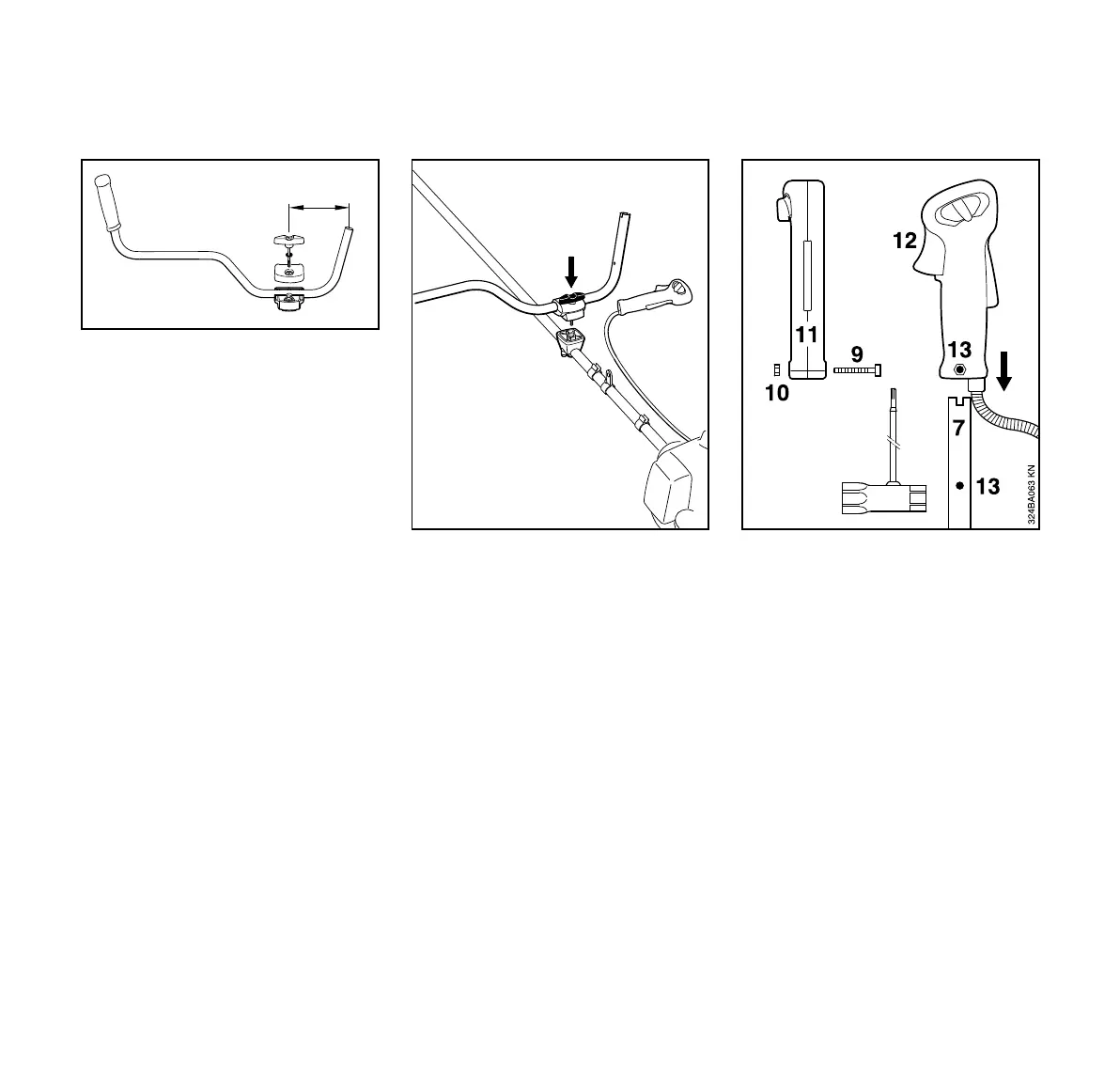

Mounting the Handlebar
: Place the handlebar (7) in the lower
clamp (1) so that distance A is no
more than 6 in (15 cm).
: Place the upper clamp in position
and hold both clamps together.
: Push the wing screw, with washer,
through the two clamps as far as
stop – hold all parts together and
secure them.
: Place the secured assembly on the
handle support (8) with the wing
screw at the engine side.
: Push the wing screw into the handle
support as far as stop and then
screw it down – but do not finally
tighten yet.
: Line up the handlebar at a right
angle to the drive tube – check
dimension A again.
: Tighten down the wing screw firmly
Mounting the Control Handle
: Loosen the screw (9). The nut (10)
remains in the control handle (11).
: Push the control handle – throttle
trigger (12) must point toward the
gearbox – onto the handlebar (7) so
that the holes (13) line up.
: Insert screw and tighten down
firmly.
