Stihl FS 130 User Manual

24
English / USA
FS 130, FS 130 R

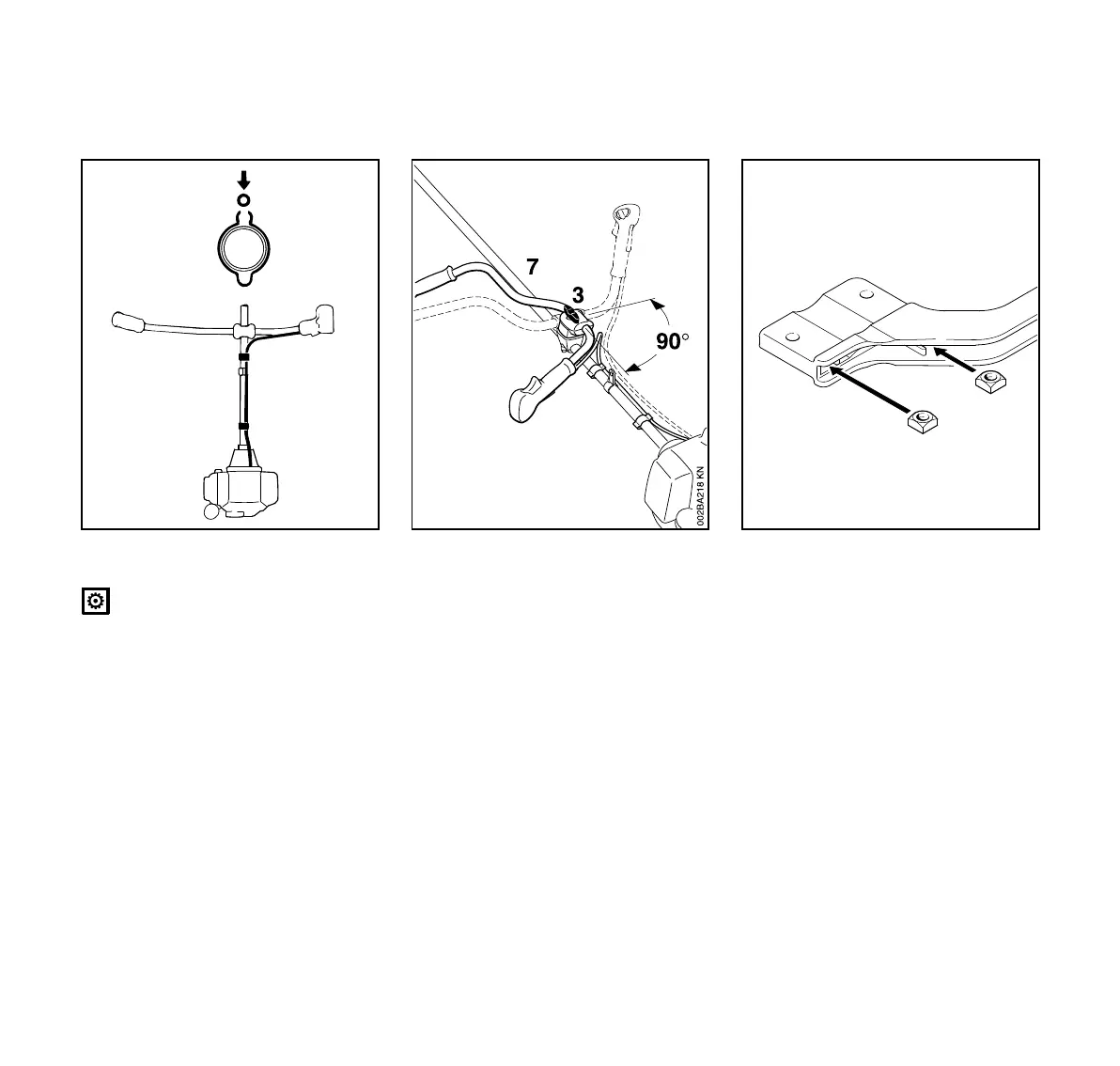

Fitting the Throttle Cable
Do not kink the throttle cable or lay
it in tight radii – make sure the
throttle trigger moves freely.
: Press the throttle cable (14) into the
retainers (15).
Throttle Cable Adjustment
: Go to chapter "Adjusting the
Throttle Cable".
Swiveling the Handlebar
Transport position:
: Release the wing screw (3) and
unscrew it until the handlebar (7)
can be turned clockwise.
: Turn the handlebar 90° and then
swing the handles down.
: Tighten down the wing screw firmly.
Working position:
: Reverse the sequence described
above to swing the handles up
and turn the handlebar counter-
clockwise.
Loop handle with barrier bar
: Insert square nuts (1) in the
barrier bar (2).
: Line up the holes.
15
14
15
14
15
250BA002 KN
Mounting the Loop Handle
2
002BA098 KN
1
1

Stihl FS 130 Specifications

General

Engine Type	4-MIX
Displacement	36.3 cc
Sound Power Level	109 dB(A)
Weight	5.9 kg
Fuel Capacity	0.53 liters
Cutting Diameter	420 mm
Maximum Recommended Cutting Diameter (with blade)	250 mm
Maximum Recommended Cutting Diameter (with line head)	420 mm
Engine Power	1.4 kW (1.9 bhp)
