FS 130, FS 130 R
A properly adjusted throttle cable is
the precondition for correct
operation in the full throttle, starting
throttle and idle positions.
Adjust the throttle cable only after
the unit is fully assembled – the
control handle must be in the normal
operating position.

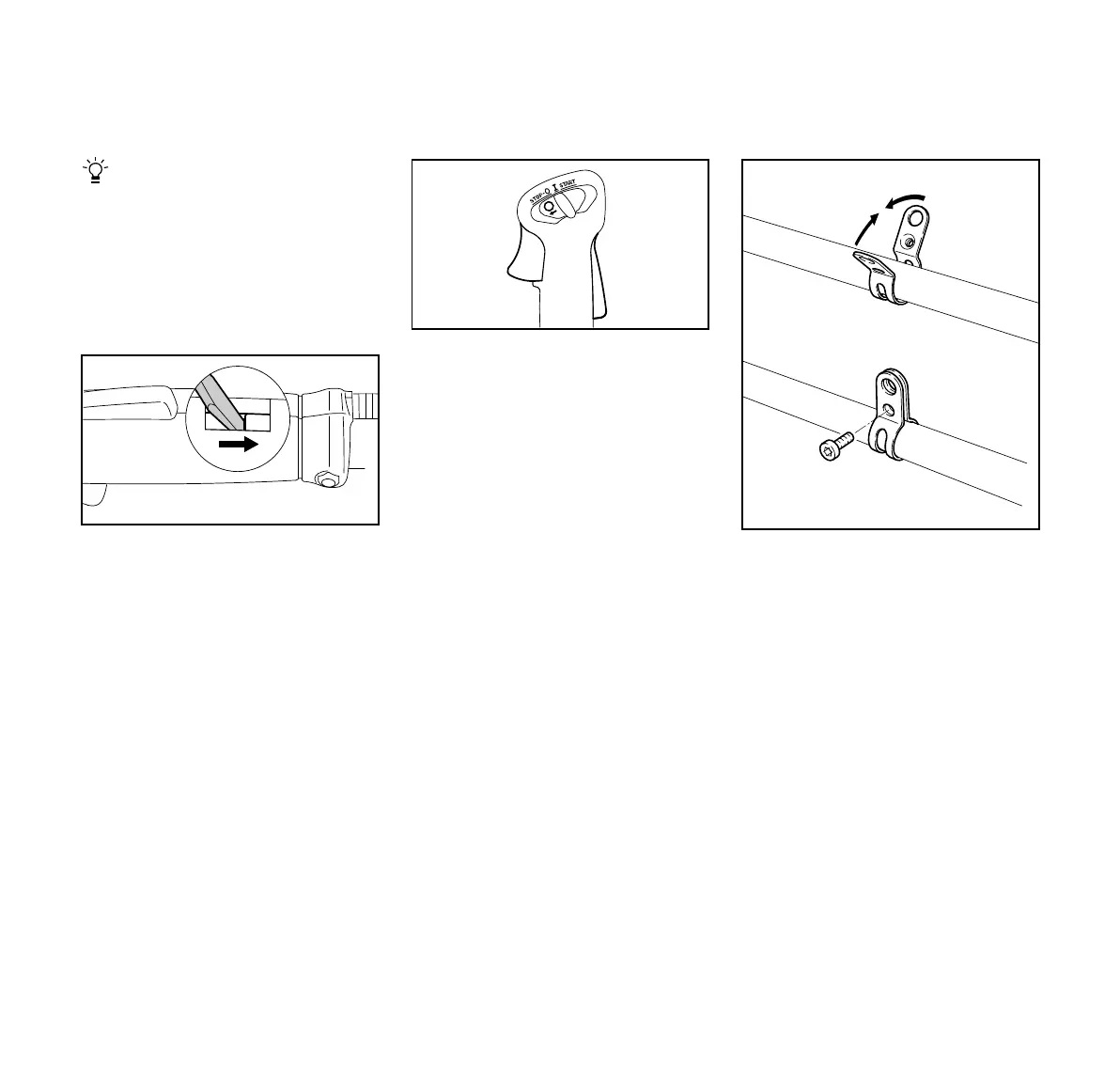

: Use a suitable tool to push the slide
to the bottom of the slot (see
illustration).
: Press down the trigger interlock (1)
and squeeze the throttle trigger (2)
(full throttle) – this sets the throttle
cable correctly.
: For position of carrying eye
1)
see
"Parts and Controls"
: Place the clamp (1) with the
tapped hole on the left-hand side
of the drive tube.
: Squeeze the two ends of the clamp
together and hold in that position.
: Insert M 6 x 14 screw (2).
: Line up the carrying eye.
: Tighten down the screw firmly.
1) Included as standard or available as
special accessory
Adjusting the Throttle Cable
