Stihl FS 130 User Manual

27FS 130, FS 130 R
English / USA

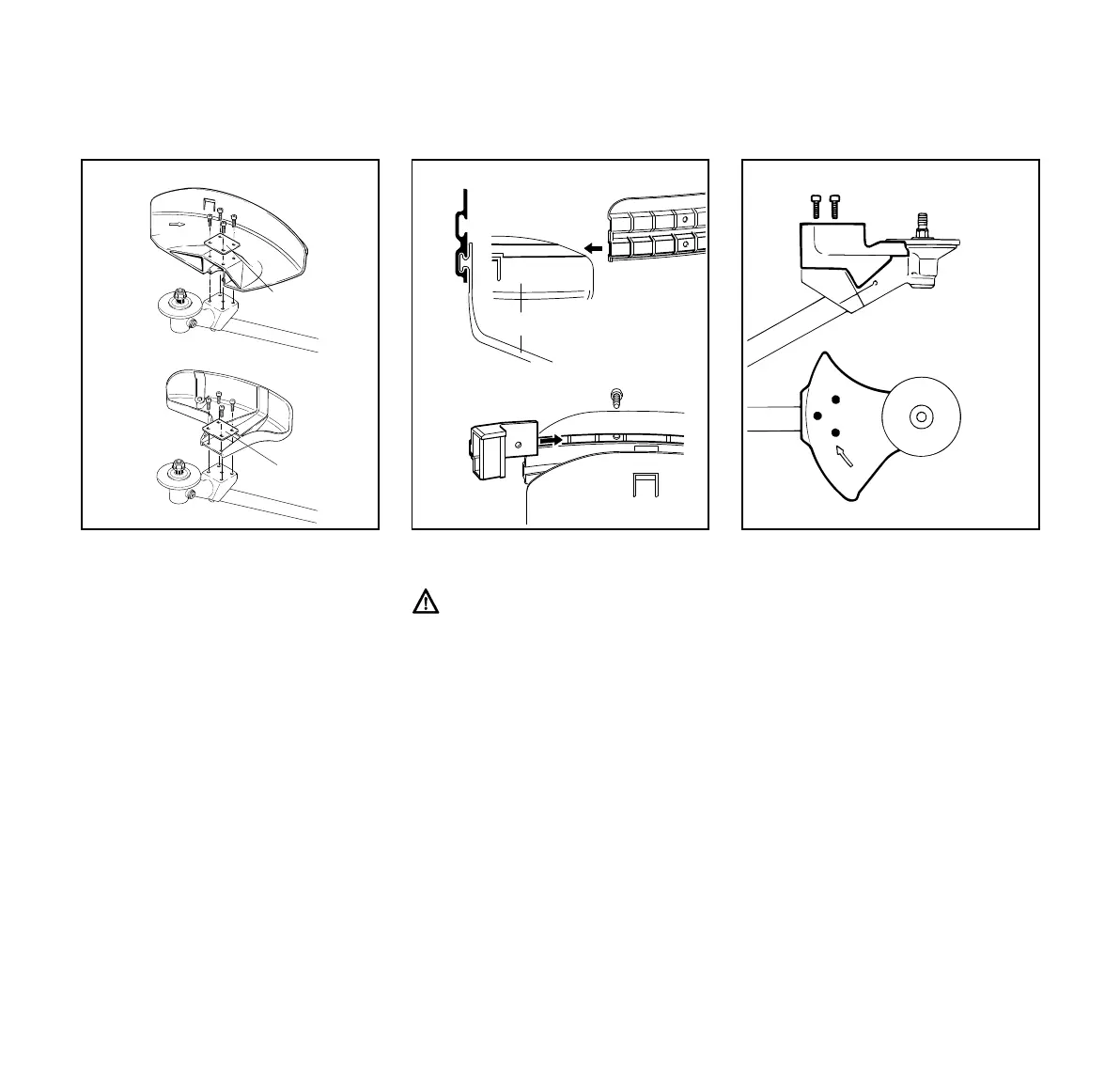

Mounting the deflector
1 = Deflector approved for all cutting
tools
2 = Deflector approved for use with
mowing heads only
: Place the deflector on the
gearhead.
: Fit the plate (3) and line it up.
: Insert M 5 x 18 screws and tighten
down firmly.
Fitting skirt and blade
These parts must be fitted to the
deflector (1) when you use a
mowing head:
: Slide the lower guide slot of the
skirt (4) onto the deflector (1) – it
must snap into position.
: Push the blade (5) into the upper
guide slot on the skirt and line it up
with the first hole.
: Fit the screw and tighten it down
firmly.
Mounting the stop
: Always fit stop (6) when you use a
circular saw blade.
: Place the stop on the gearhead
flange.
: Fit the three M 5 x 18 screws (7) and
tighten down securely.
Mounting the Deflector
002BA102 KN
1
3
2
3
4
1
5
4
002BA103 KN
7 7
7
6
002BA028 KN

Stihl FS 130 Specifications

General

Engine Type	4-MIX
Displacement	36.3 cc
Sound Power Level	109 dB(A)
Weight	5.9 kg
Fuel Capacity	0.53 liters
Cutting Diameter	420 mm
Maximum Recommended Cutting Diameter (with blade)	250 mm
Maximum Recommended Cutting Diameter (with line head)	420 mm
Engine Power	1.4 kW (1.9 bhp)
