28
English / USA
FS 130, FS 130 R
Preparations
: Lay your brushcutter on its back
with the gearhead facing upward.
Mounting Hardware
for Cutting Tools
The mounting hardware supplied
depends on the cutting tool that comes
as original equipment with the new
brushcutter.
Mounting hardware is not packed
with the machine
Only mowing heads may be
mounted.

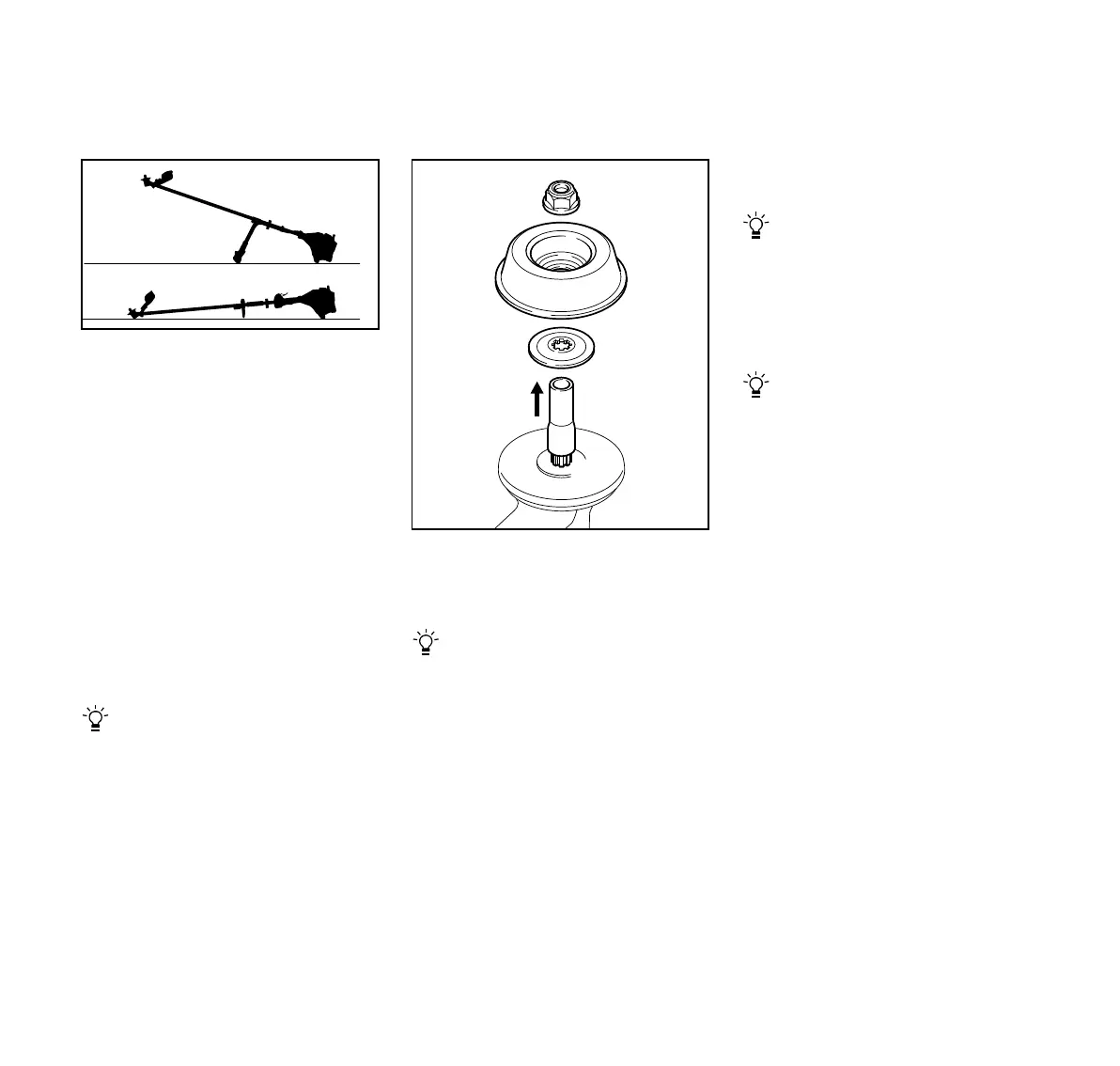

: Pull the hose (1) (protector for
shipping) off the shaft (2).
: Go to "Mounting the Mowing Head".
If you want to mount a metal cutting
tool in place of a mowing head, you
will need the following additional
parts: Nut (3), rider plate (4) and
thrust washer (5) (special
accessories).
Mounting hardware is packed with
the machine
Mowing heads and metal cutting
tools may be mounted.
Mounting hardware is loose
: Pull the hose (1) (protector for
shipping) off the shaft (2).
The nut (3), rider plate (4) and thrust
washer (5) are in the parts kit
supplied with the machine.
: Go to "Mounting the Mowing Head"
or "Mounting Metal Cutting Tools".
Mounting hardware is secured to
gearhead
: Go to "Removing Mounting
Hardware"
Mounting the Cutting Tools
002BA104 KN
2
002BA164 KN
1
3
4
5
