29FS 130, FS 130 R
English / USA

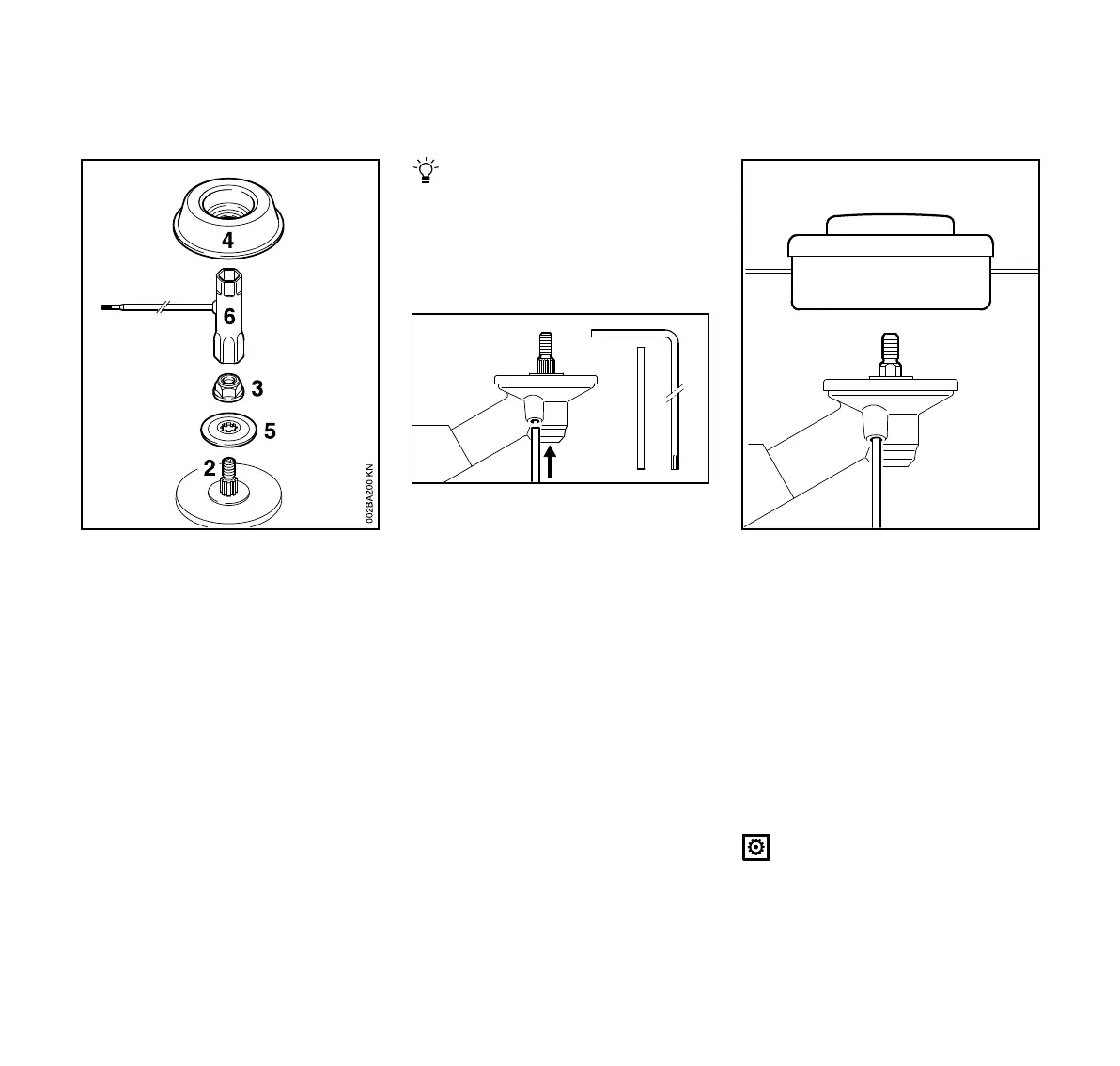

Removing Mounting Hardware
: Block the shaft – see next section
on "Blocking the Output Shaft".
: Use the combination wrench (6)
(supplied with machine or available
as special accessory) to unscrew
the nut (3) clockwise (left-hand
thread) from the shaft (2).
: Pull the thrust washer (5) off the
shaft (2).
The rider plate (4) is in the parts kit
supplied with the machine.
: Go to "Mounting the Mowing Head"
or "Mounting Metal Cutting Tools".
Blocking the Output Shaft
: Insert the stop pin or screwdriver (7)
(supplied with machine or available
as special accessories) in the hole
(8) in the gearhead as far as stop –
apply slight pressure.
: Rotate nut or cutting tool on the
shaft (2) until the stop pin slips into
position and blocks the shaft.
Mounting the mowing head
Keep instruction sheet for mowing head
in a safe place
: Screw the
STIHL SuperCut 20-2,
STIHL AutoCut 25-2, 30-2
STIHL TrimCut 30-2 or
STIHL PolyCut 20-3
counterclockwise onto the shaft (1)
as far as stop.
: Block the output shaft.
: Tighten down the mowing head.
Remove the stop pin.
7
8
2
002BA166 KN
7
1
002BA081 KN

Stihl FS 130 Specifications

General

Engine Type	4-MIX
Displacement	36.3 cc
Sound Power Level	109 dB(A)
Weight	5.9 kg
Fuel Capacity	0.53 liters
Cutting Diameter	420 mm
Maximum Recommended Cutting Diameter (with blade)	250 mm
Maximum Recommended Cutting Diameter (with line head)	420 mm
Engine Power	1.4 kW (1.9 bhp)
