Stihl FS 130 User Manual

30
English / USA
FS 130, FS 130 R

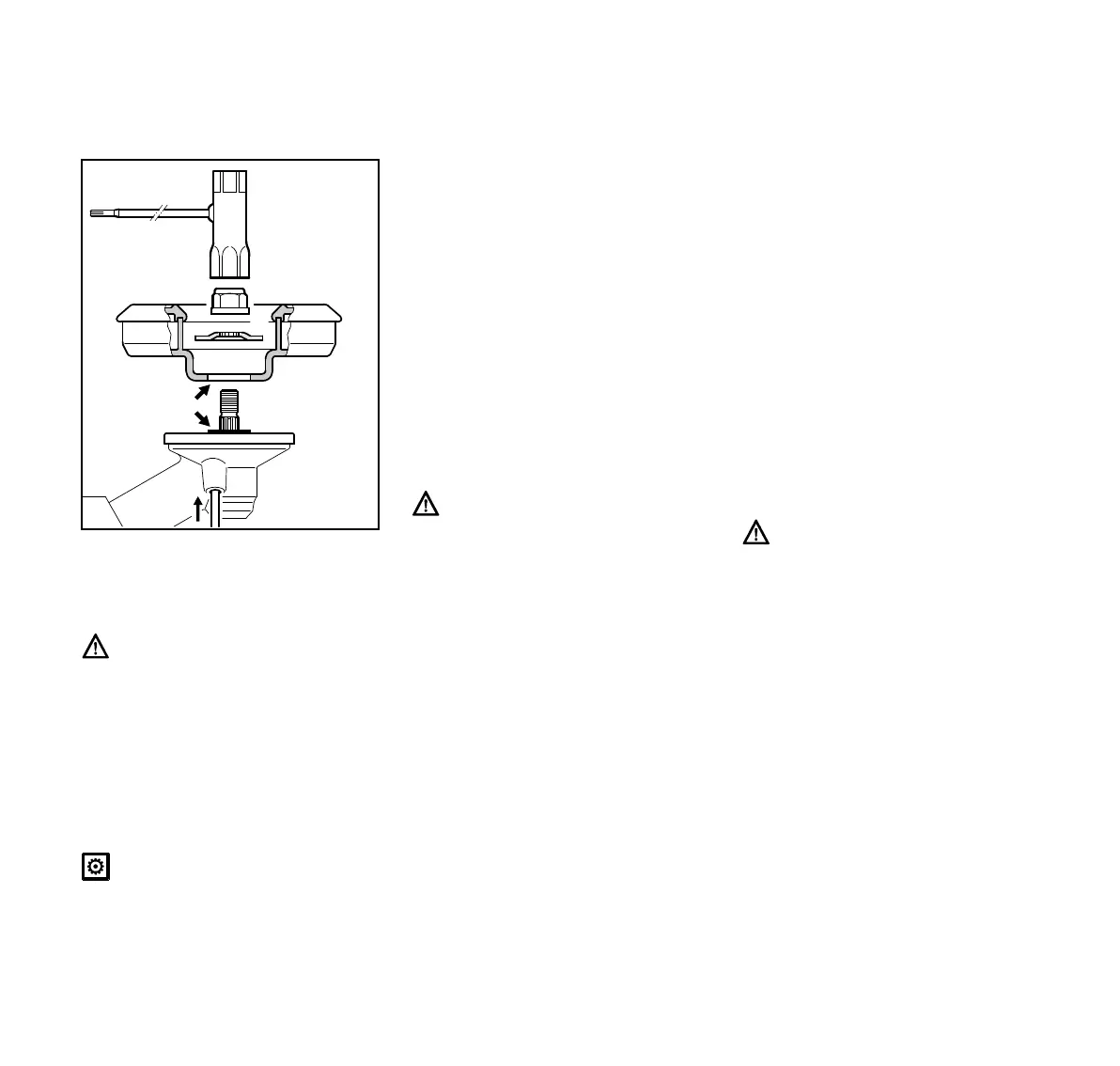

STIHL FixCut 25-2
: Place the mowing head on the
thrust plate (2)
Collar (see arrow) must locate in
mowing head’s mounting hole
Push the thrust washer (3) over the
shaft (1) so that it locates against
the base.
: Block the output shaft.
: Screw the mounting nut (4) with the
combination wrench (5)
counterclockwise on to the output
shaft and tighten down firmly
Remove the stop pin.
Removing the mowing head
: Block the output shaft.
STIHL SuperCut 20-2,
STIHL AutoCut 25-2, 30-2,
STIHL TrimCut 30-2,
STIHL PolyCut 20-3
: Unscrew the mowing head
clockwise.
STIHL FixCut 25-2
: Use the combination wrench to
unscrew the mounting nut clockwise
from the output shaft
If the mounting nut is too loose, fit a
new one
Adjusting nylon line
STIHL SuperCut
Fresh line is advanced automatically if
remaining line is still min. 2 1/2" (6 cm)
long. The blade in the deflector trims
surplus line to the correct length.
STIHL AutoCut
: Hold the rotating mowing head
above the ground – tap it on the
ground once – about 1 1/4"(3 cm)
fresh line is advanced.
The blade in the deflector trims surplus
line to the correct length – avoid tapping
head more than once at a time.
Line feed operates only if both lines
still have a minimum length of
1" (2.5 cm).
All other mowing heads
Refer to instructions supplied with the
mowing head.
To reduce the risk of injury, always
shut off the engine before adjusting
the nylon line by hand.
Replacing nylon line or PolyCut
blades
Refer to instructions supplied with the
mowing head.
3
1
2
4
681BA026 KN
5

Stihl FS 130 Specifications

General

Engine Type	4-MIX
Displacement	36.3 cc
Sound Power Level	109 dB(A)
Weight	5.9 kg
Fuel Capacity	0.53 liters
Cutting Diameter	420 mm
Maximum Recommended Cutting Diameter (with blade)	250 mm
Maximum Recommended Cutting Diameter (with line head)	420 mm
Engine Power	1.4 kW (1.9 bhp)
