31FS 130, FS 130 R
English / USA
Mounting Metal Cutting Tools
Remove the skirt and blade from
the mowing head deflector before
mounting

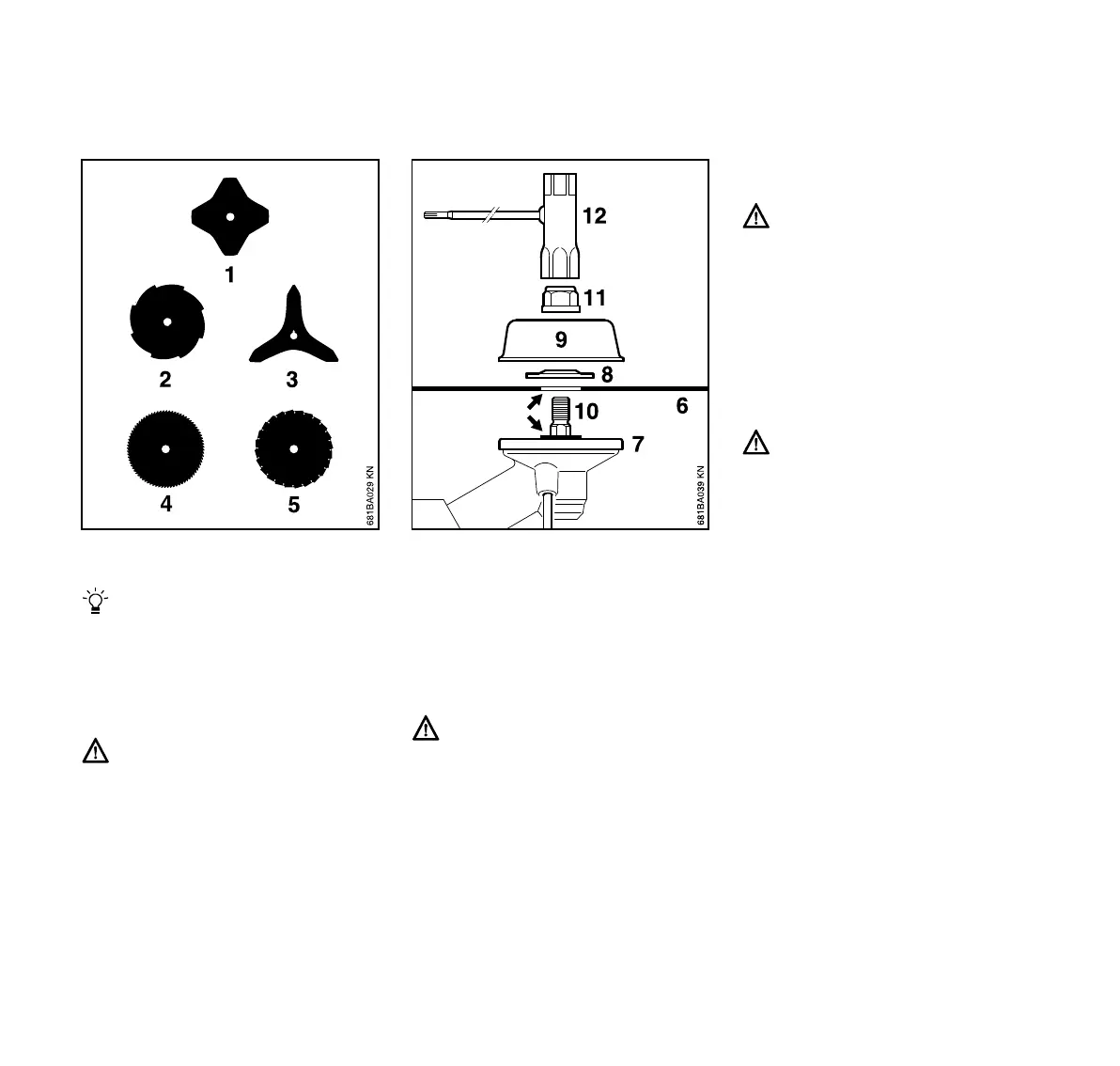

grass cutting blade 230-4 (1),
grass cutting blade 230-8 (2),
or brush knife (3) – see “Mounting
the Deflector”
Fit the appropriate limit stop before
mounting the circular saw blade 200
(4,5) – see “Mounting the Deflector”.
: Lay your machine on its back with
the gearhead facing upward.
Cutting edges of (1) and (3) may
point in either direction.
Cutting edges of (2), (4) and (5)
must point clockwise.
Direction of rotation is marked by
arrow on inside of cutting head
deflector or limit stop.
: Place the cutting tool (6) on the
thrust plate (7).
Collar (see arrows) must locate in
cutting tool’s mounting hole.
: Slip thrust washer (8) and rider
plate (9) over the output shaft (10).
: Block the output shaft and
: Screw the mounting nut (11) with
the combination wrench (12) onto
the output shaft counterclockwise
and tighten down firmly.
If the mounting nut is too loose,
fit a new one.
Removing cutting tool
: Block the output shaft.
: Unscrew the nut clockwise.
: Removing the cutting tool – do not
remove the thrust plate (7).
