Stihl FS 130 User Manual

34
English / USA
FS 130, FS 130 R

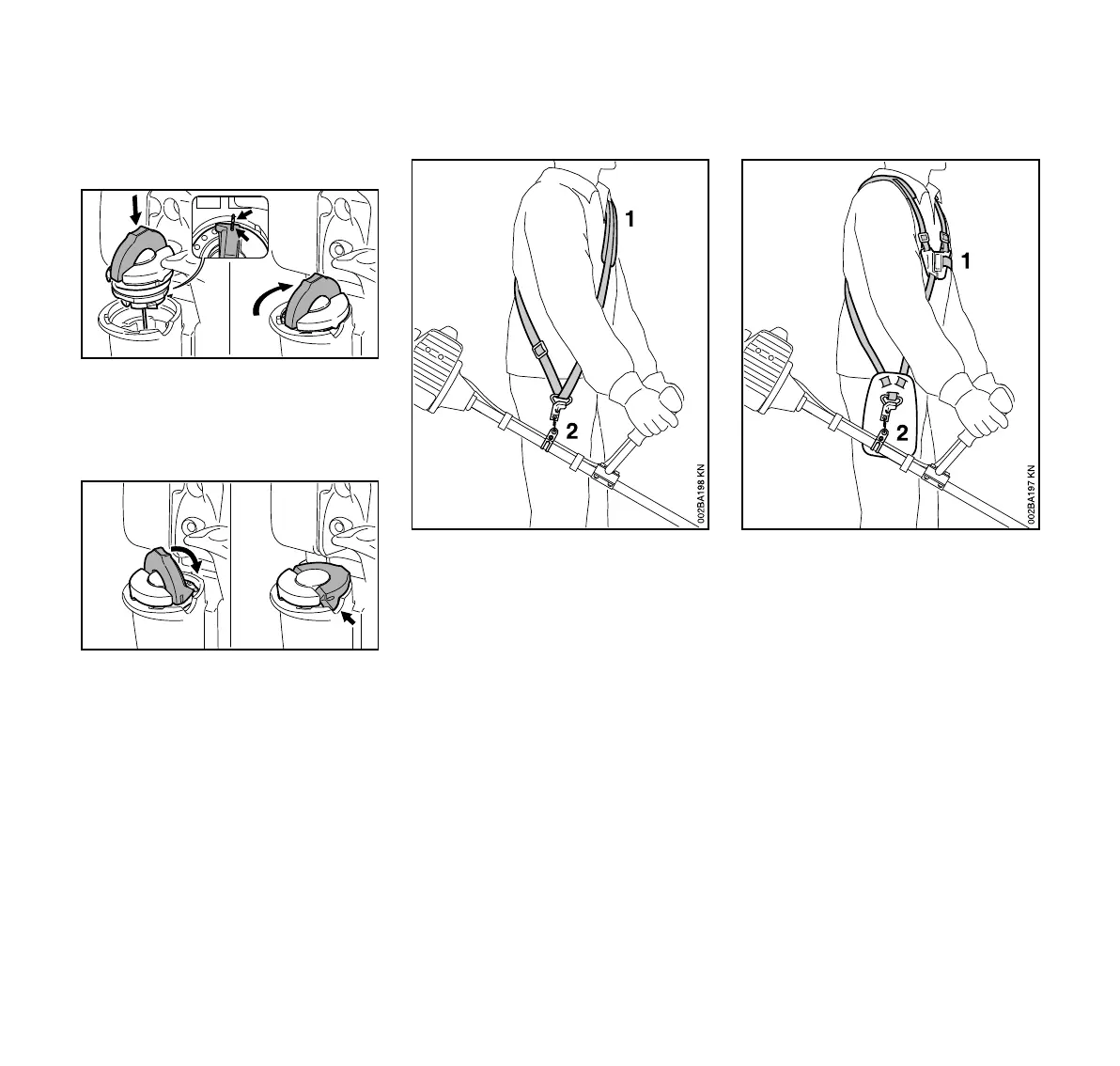

Closing the cap
: Fit the cap – grip upright –marks
must line up.
: Turn the cap clockwise as far as
stop (approx. a quarter turn).
: Fold the grip flush with the top of the
cap.
If the grip does not lie completely flush
with the cap and the detent on the grip
does not engage the recess in the filler
neck, the cap is not properly seated and
tightened and you must repeat the
above steps.
The type and style of harness depend on
the market.
Shoulder Strap
: Put on the shoulder strap (1).
: Adjust the length of the strap so that
the spring hook (2) is about a hand’s
width below your right hip.
: Balance the brushcutter.
The use of the harness is described in
chapter “Approved Combinations of
Cutting Tool, Deflector, Handle and
Harness”.
Full harness
: Put on the full harness (1).
: Adjust length until the spring hook
(2) is about a hand’s width below
your right hip.
: Balance the brushcutter.
The use of the harness is described in
chapter “Approved Combinations of
Cutting Tool, Deflector, Handle and
Harness”.
249BA055 KN
249BA056 KN
Fitting the Harness

Stihl FS 130 Specifications

General

Engine Type	4-MIX
Displacement	36.3 cc
Sound Power Level	109 dB(A)
Weight	5.9 kg
Fuel Capacity	0.53 liters
Cutting Diameter	420 mm
Maximum Recommended Cutting Diameter (with blade)	250 mm
Maximum Recommended Cutting Diameter (with line head)	420 mm
Engine Power	1.4 kW (1.9 bhp)
