Stihl FS 130 User Manual

35FS 130, FS 130 R
English / USA

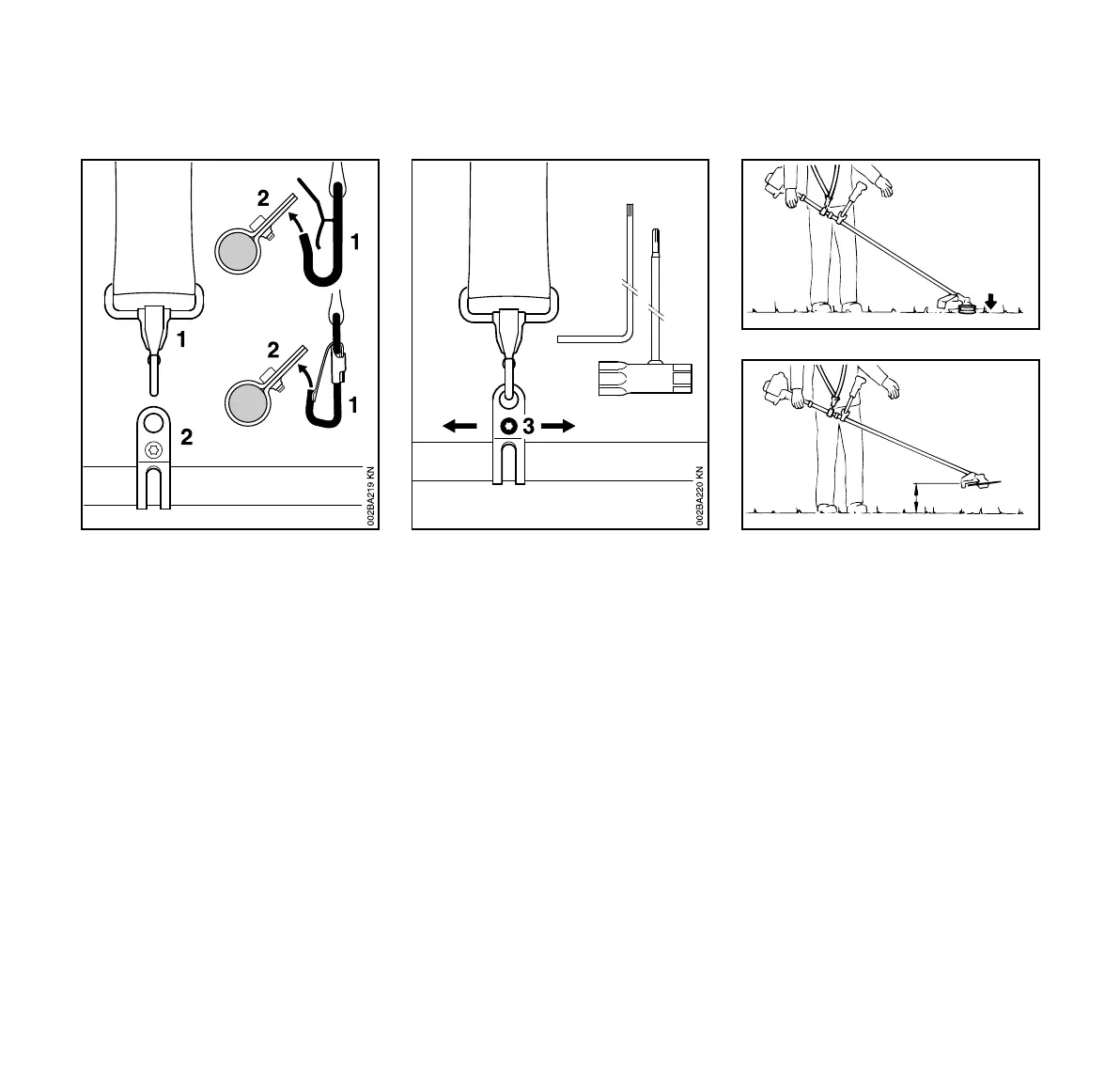

Attaching Harness to Brushcutter
: Attach the spring hook (1) to the
clamp (2) (carrying ring) on the drive
tube.
: Loosen the screw (3).
Balancing the Machine
The machine has to be balanced to suit
the cutting tool you are using.
Carry out the following steps to reach
the condition described under “Point of
balance”:
: Slide the clamp up or down the drive
tube. Tighten the screw moderately.
Let go of the machine and check to
see how it is balanced.
Point of balance
A Mowing tools
Mowing heads, grass cutting blades
and brush knife should just touch
the ground.
B Circular saw blades
should hover about 8 in (20 cm)
above the ground.
When the correct point of balance is
reached:
: Tighten down the clamp screw
firmly.
Balancing the Brushcutter
A
002BA034 KN
B
002BA035 KN

Stihl FS 130 Specifications

General

Engine Type	4-MIX
Displacement	36.3 cc
Sound Power Level	109 dB(A)
Weight	5.9 kg
Fuel Capacity	0.53 liters
Cutting Diameter	420 mm
Maximum Recommended Cutting Diameter (with blade)	250 mm
Maximum Recommended Cutting Diameter (with line head)	420 mm
Engine Power	1.4 kW (1.9 bhp)
