Stihl FS 130 User Manual

36
English / USA
FS 130, FS 130 R

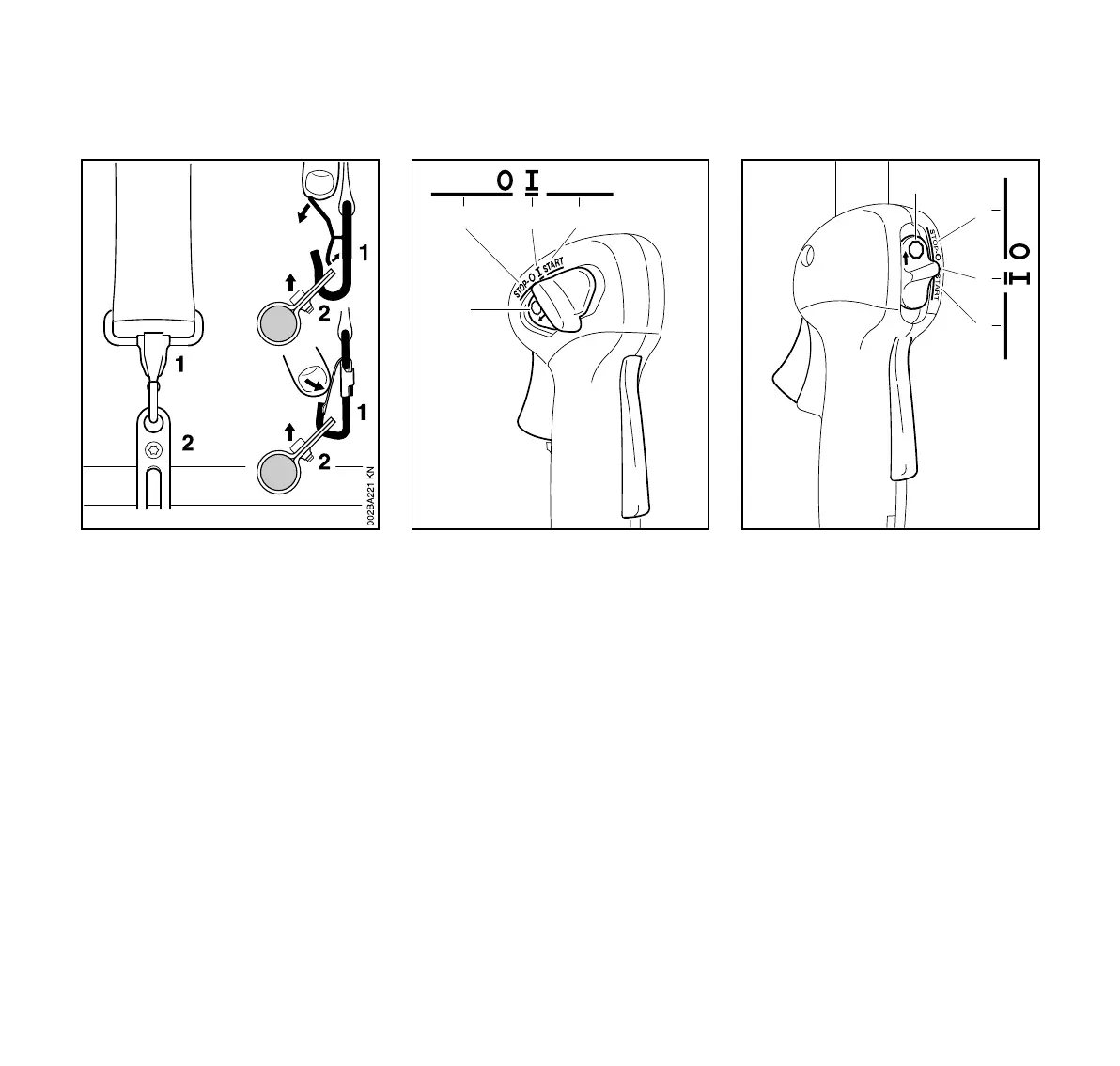

Disconnecting Brushcutter from
Harness
Depending on the type of spring hook
(carabiner):
: Press down the bar on the spring
hook (1) and take the clamp (2) off
the hook.
Controls
Control handle on bike handle
Throttle trigger interlock (1)
Throttle trigger (2)
Slide control (3)
Control handle on drive tube
Throttle trigger interlock (1)
Throttle trigger (2)
Slide control (3)
Positions of slide control
STOP-O (4) – engine off – the ignition is
switched off
# – normal run position (5) – the engine
is running or can start
START (6) - the ignition is switched on,
the engine can start
Starting / Stopping
the Engine
3
STOP
5 6
4
7
002BA182 KN
1
2
START
STOP-
3
STOP
2
5
6
4
7
002BA181 KN
START
STOP-
1

Stihl FS 130 Specifications

General

Engine Type	4-MIX
Displacement	36.3 cc
Sound Power Level	109 dB(A)
Weight	5.9 kg
Fuel Capacity	0.53 liters
Cutting Diameter	420 mm
Maximum Recommended Cutting Diameter (with blade)	250 mm
Maximum Recommended Cutting Diameter (with line head)	420 mm
Engine Power	1.4 kW (1.9 bhp)
