Stihl FS 130 User Manual

53FS 130, FS 130 R
English / USA

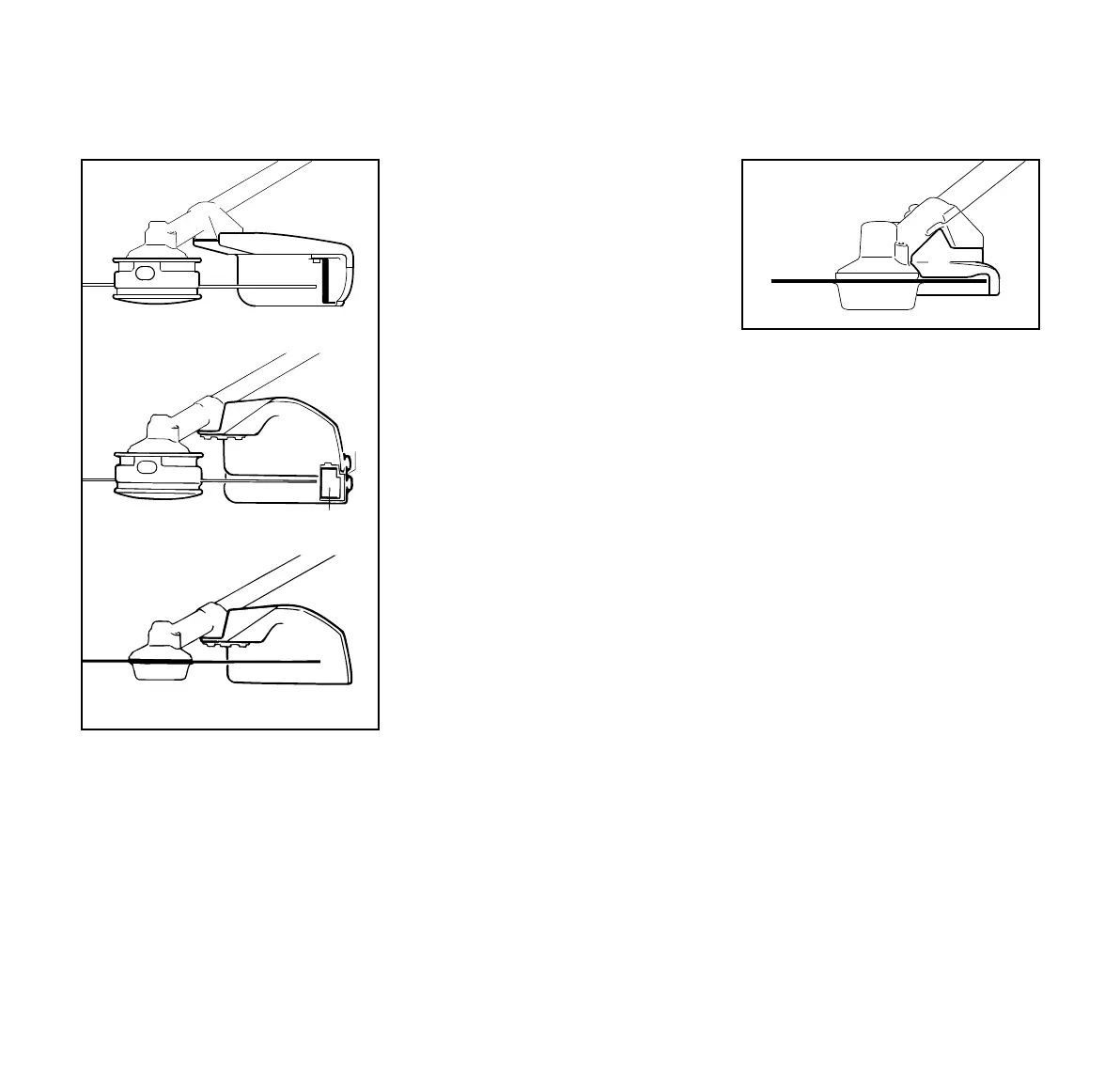

1 Mowing head
2 Deflector
(for mowing heads only)
3 Line limiting blade
4 Deflector with skirt
(for all cutting tools)
5 Skirt
6 Metal mowing tool
Definitions
1. Mowing head
The cutting attachment, i. e. mowing
head, for different purposes
(special accessory).
2. Deflector
The deflector is designed to reduce
the risk of injury from foreign objects
flung backwards toward the
operator by the cutting tool and from
contact with the cutting tool.
3. Line limiting blade
Metal blade at the deflector in order
to keep the line of the mowing head
at the proper length.
4. Deflector with skirt
The deflector is designed to reduce
the risk of injury from foreign objects
flung backwards toward the
operator by the cutting tool and from
contact with the cutting tool. Is not
designed to contain fragmented
metal blades.
5. Skirt
The skirt at the bottom of the
deflector must be adjusted as
described in the chapters on
mounting the various cutting tools.
6. Metal mowing tool
The cutting attachment, i. e. blade,
made from metal for different
purposes (special accessory).
7 Circular Saw Blade
8 Limit Stop (for circular saw blade
only)
Definitions
7. Circular Saw Blade
Cutting tool made of metal for
cutting wood.
8. Limit Stop
Is designed to position the
brushcutter steady against the
wood in order to reduce the risk of
injury from loss of control from
reactive forces such as thrust out.
002BA114 KN
1
3
4
5
3
6
4
1
2
002BA186 KN
8
7

Stihl FS 130 Specifications

General

Engine Type	4-MIX
Displacement	36.3 cc
Sound Power Level	109 dB(A)
Weight	5.9 kg
Fuel Capacity	0.53 liters
Cutting Diameter	420 mm
Maximum Recommended Cutting Diameter (with blade)	250 mm
Maximum Recommended Cutting Diameter (with line head)	420 mm
Engine Power	1.4 kW (1.9 bhp)
