FS 260 C, FS 360 C
English
18

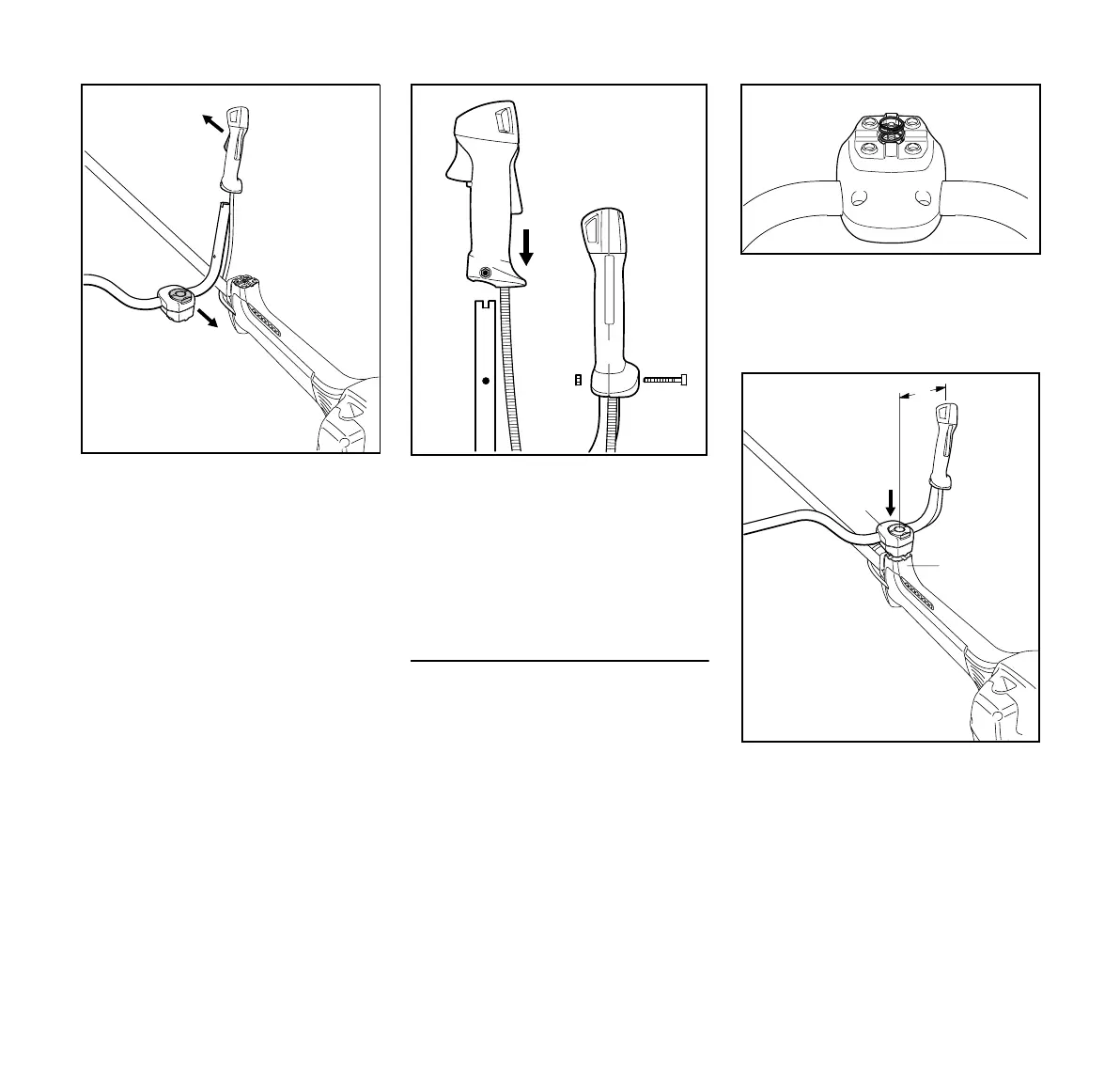

N Line up the control handle (5)
relative to the handlebar (2): The
throttle trigger (6) must point toward
the gearbox and the clamp
screw (7) toward the engine.
N Holding the control handle (5) in
that position, push it on to the end of
the handlebar (2) and line up the
holes (8).
N Fit the nut (4) in the control
handle (5), insert the screw (3) and
tighten it down firmly.
Assembling the handle support
Assembly of the swivelling handle
support involves equipping the clamp
moldings with a spring and mounting
them on the handle support.
N Use the spring (9) from the parts kit
supplied with the machine.
N Place the spring (9) in the lower
clamp molding (10).
N Position the clamp moldings (1) with
handlebar (2) on the handle
support (11).
7
5
6BA002 KN
6
2
8
6BA019 KN
2
8
3
5
4
6BA001 KN
9
10
11
1
6BA020 KN
2
A
