FS 160, FS 220, FS 280, FS 290
English
67
N Fit the center screw, but do not
tighten it down yet.
N Insert the two M5x20 screws
provided and tighten them down
firmly.

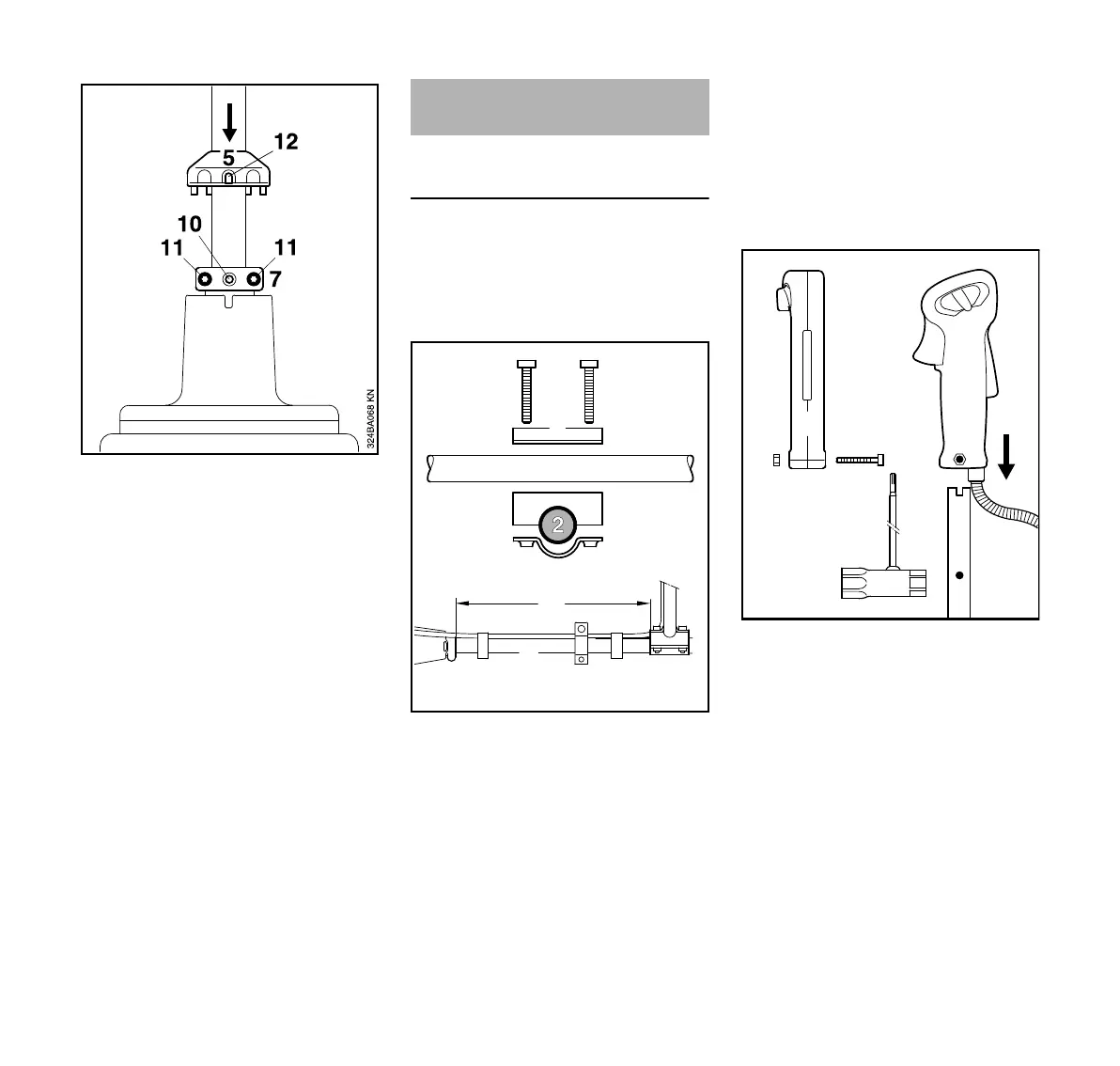

N Push the cap (5) over the sleeve so
that the opening (12) lines up with
the tapped hole (10) in the sleeve.
N Tighten down the center screw in
the sleeve (7) firmly.
FS 160 – Mounting bike handle with
fixed handle support
The fixed handle support is supplied
separately and must be mounted to the
drive tube.
Mounting the handlebar
N Mount the handlebar (1) on the
drive tube (2) about 40 cm (A)
forward of the engine housing.
N Place the clamp (3) and handle
support (4) against the drive tube.
N Fit the handlebar (1) in the handle
support – the rubber handle must be
on the left (viewed from the engine).
N Place the clamp (5) on the handle
support.
N Insert the screws (6) through the
holes in the parts and screw them
into the clamp (3) as far as stop.
N Line up the handlebar.
N Tighten down the screws firmly.
Mounting the control handle
N Take out the screw (7) – the nut (8)
remains in the control handle (9).
N Push the control handle onto the
handlebar (1) until the holes (11)
line up – the throttle trigger (10)
must point towards the gearbox.
N Insert screw and tighten it down
firmly.
Mounting the Bike Handle
