FS 160, FS 220, FS 280, FS 290
English
76

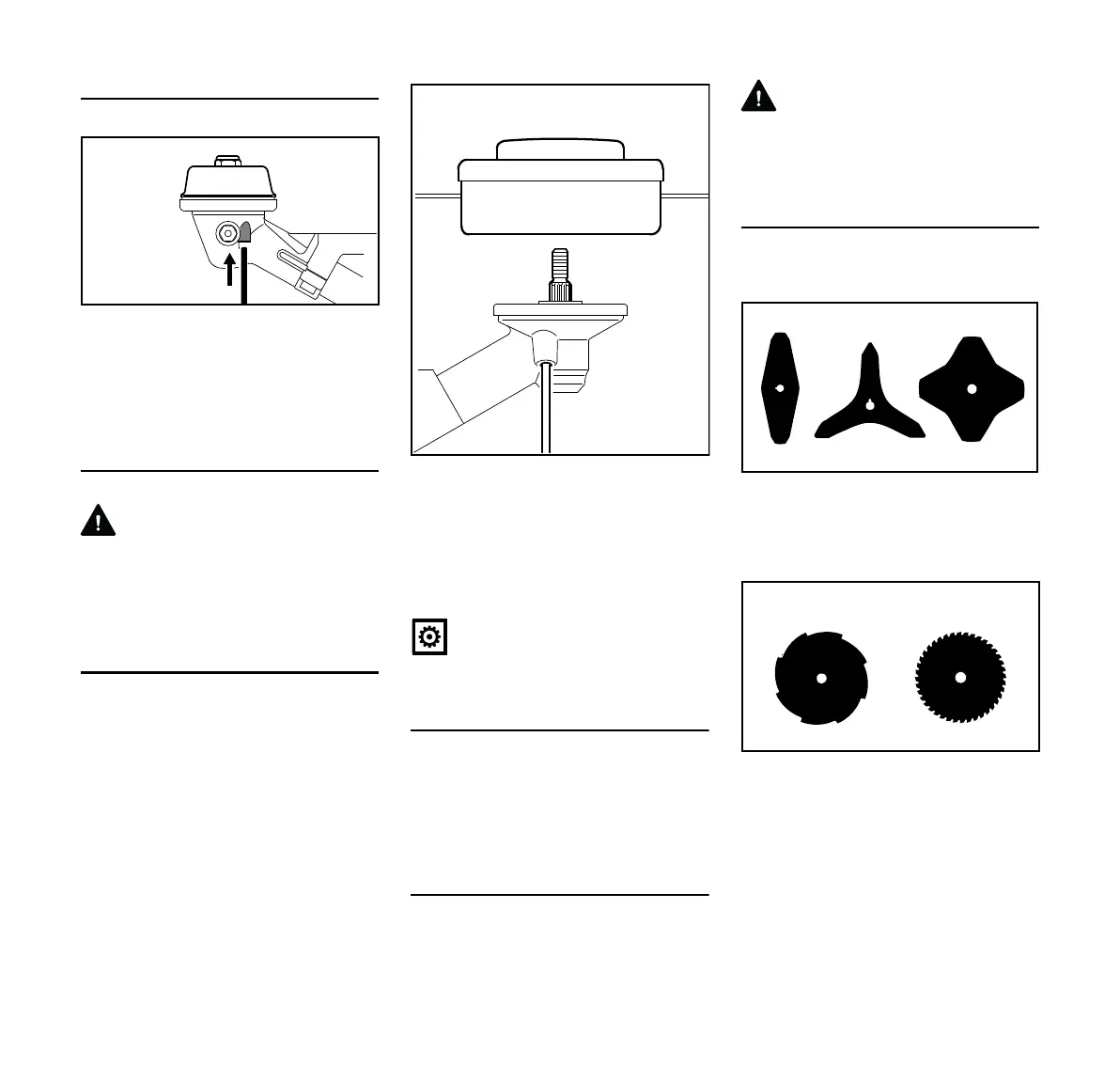

Block the shaft.
N Insert the stop pin (1) in the bore (2)
in the gearbox as far as stop, apply
slight pressure.
N Rotate the shaft until the stop pin
slips into position.
Mount the cutting attachment.
WARNING
Use a deflector that matches the cutting
attachment – see "Mounting the
Deflector".
Fitting Mowing Head with Screw
Mounting
Keep the instruction leaflet for the
mowing head in a safe place.
N Screw the mowing head
counterclockwise on to the shaft (1)
as far as stop.
N Block the shaft.
N Tighten down the mowing head
firmly.
NOTICE
Remove the tool used to block the shaft.
Removing the Mowing Head
N Block the shaft.
N Unscrew the mowing head
clockwise.
Removing and Installing Metal Cutting
Attachments
Before removing and installing metal
cutting attachments:
WARNING
Wear protective gloves to reduce the
risk of direct contact with the sharp
cutting edges.
Grass Cutting Blades, Brush Knives
Aligning the cutting attachment
Cutting attachments with 2, 3 or 4 teeth
may point in either direction – these
cutting attachments must be turned over
regularly to help avoid one-sided wear.
The cutting edges of the grass cutting
blades 255-8 (1) and 250-40 Spezial (2)
must point clockwise.
Mounting the cutting attachment
N Fit the guard ring for mowing
applications.
