Stihl FS 300 Instruction Manual

FS 300, FS 350, FS 400, FS 450, FS 480
English
14

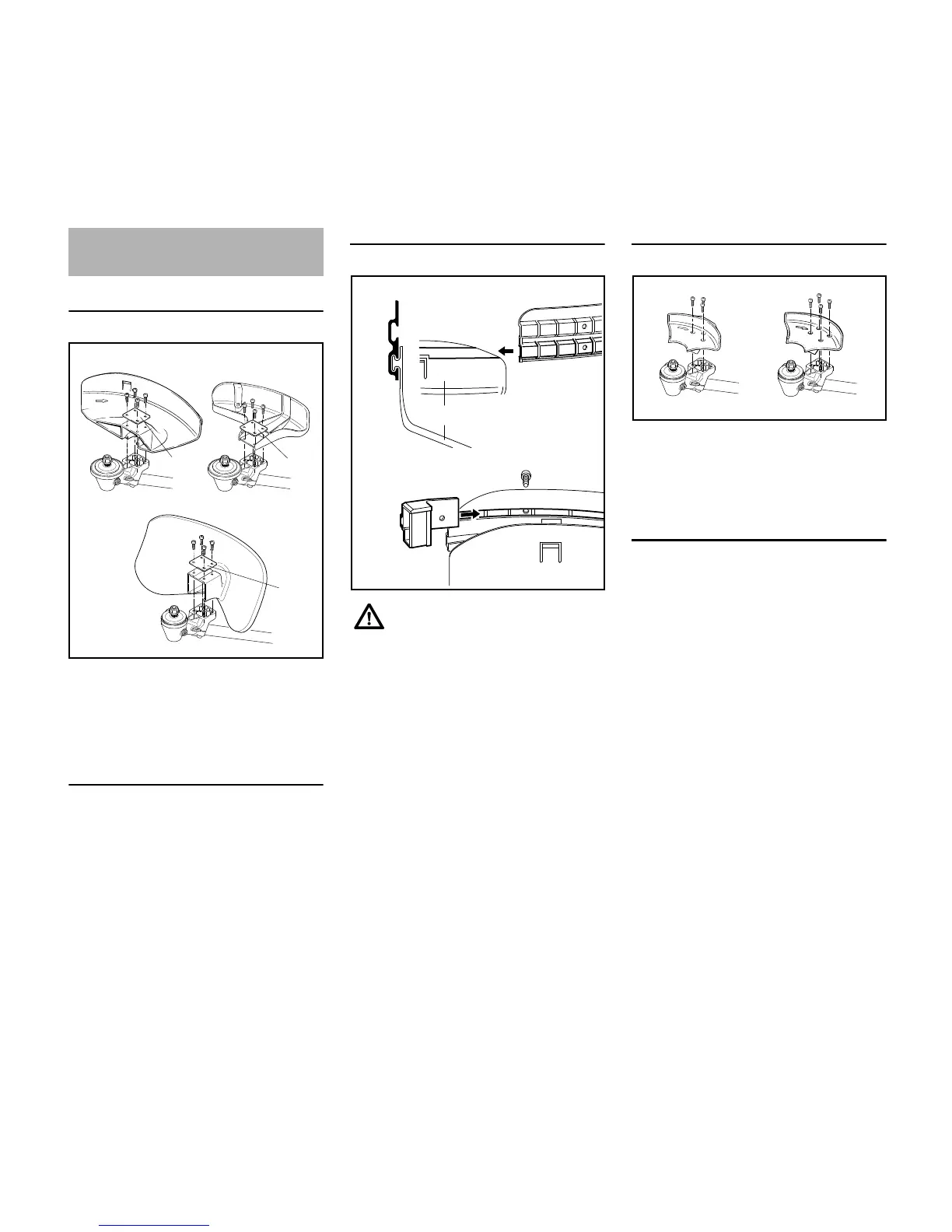

Deflector
1 Deflector for mowing tools
2 Deflector for mowing heads
3 Deflector for shredder blade
4 Plate
Mounting the deflector
N Place the deflector and plate in
position.
N Insert the screws and tighten them
down firmly.
Fitting the skirt and blade
N Slide the skirt (2) onto the
deflector (1) – use guide slot (4) for
all nylon line mowing heads.
N Push the blade (3) into the upper
guide slot on the skirt and line it up
with the first hole.
N Insert the screw and tighten it down
firmly.
PolyCut 40-3 mowing head
N Slide the skirt into guide slot (5) for
the PolyCut 40-3.
Limit stop
1 Limit stop for circular saw blades
200
2 Limit stop for circular saw blades
225
Mounting the limit stop
N Place the limit stop in position.
N Insert the screws and tighten them
down firmly.
Mounting the Deflector
256BA082 KN
1
2
3
4
4
4
These parts must be fitted to the
deflector (1) when you use a
mowing head.
1
4
5
2
3
002BA293 KN
002BA339 KN
1
2

Stihl FS 300 Specifications

General

Engine Type	2-stroke
Shaft Type	Straight
Sound Pressure Level	98 dB(A)
Sound Power Level	109 dB(A)
Displacement	30.8 cc
Fuel Tank Volume	0.64 l
Cutting Attachment	Metal blade
