Stihl FS 300


Remove the ignition module -
see 5.3.2 and 5.3.3.

Remove clutch housing -
see 9.1 and 11.2.
FS 120...350, FR 350
•
Pull short circuit wire out of
grommet.
•
Remove short circuit wire from
retainers.
FS 400/450, FR 450

Remove the fuel tank - see 8.5.

Remove the muffler - see 4.1.
•
Push out the outer grommet (1).
•
Pull short circuit wire out of
housing bore and remove
grommet.
•
Push out the grommet (1).
•
Pull short circuit wire (2) out of
housing bore, remove it from
the retainers and pull off the
grommet.
All models
•
Take out the screw (1).
•
Remove top of cable guide (2).
•
Lift the throttle cable (1) a little.
•
Remove short circuit wire
connector (2) from base of cable
guide.
Assemble in the reverse
sequence.

Check and adjust throttle
cable - see 7.5.2.

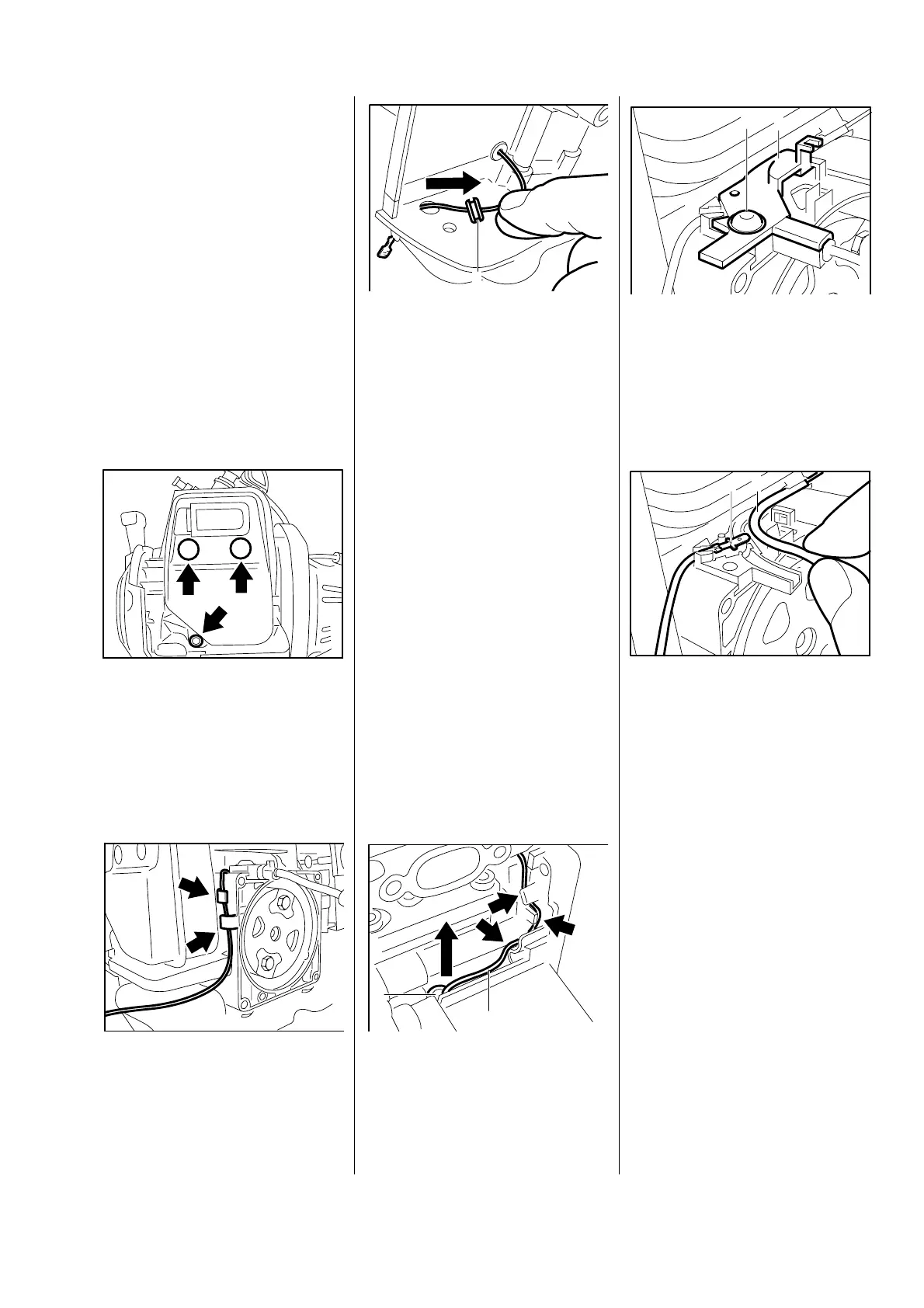

5.5 Short Circuit Wire
