Stihl FS 300

Removal
Troubleshooting chart - see
"Standard Repairs, Trouble-
shooting" handbook.


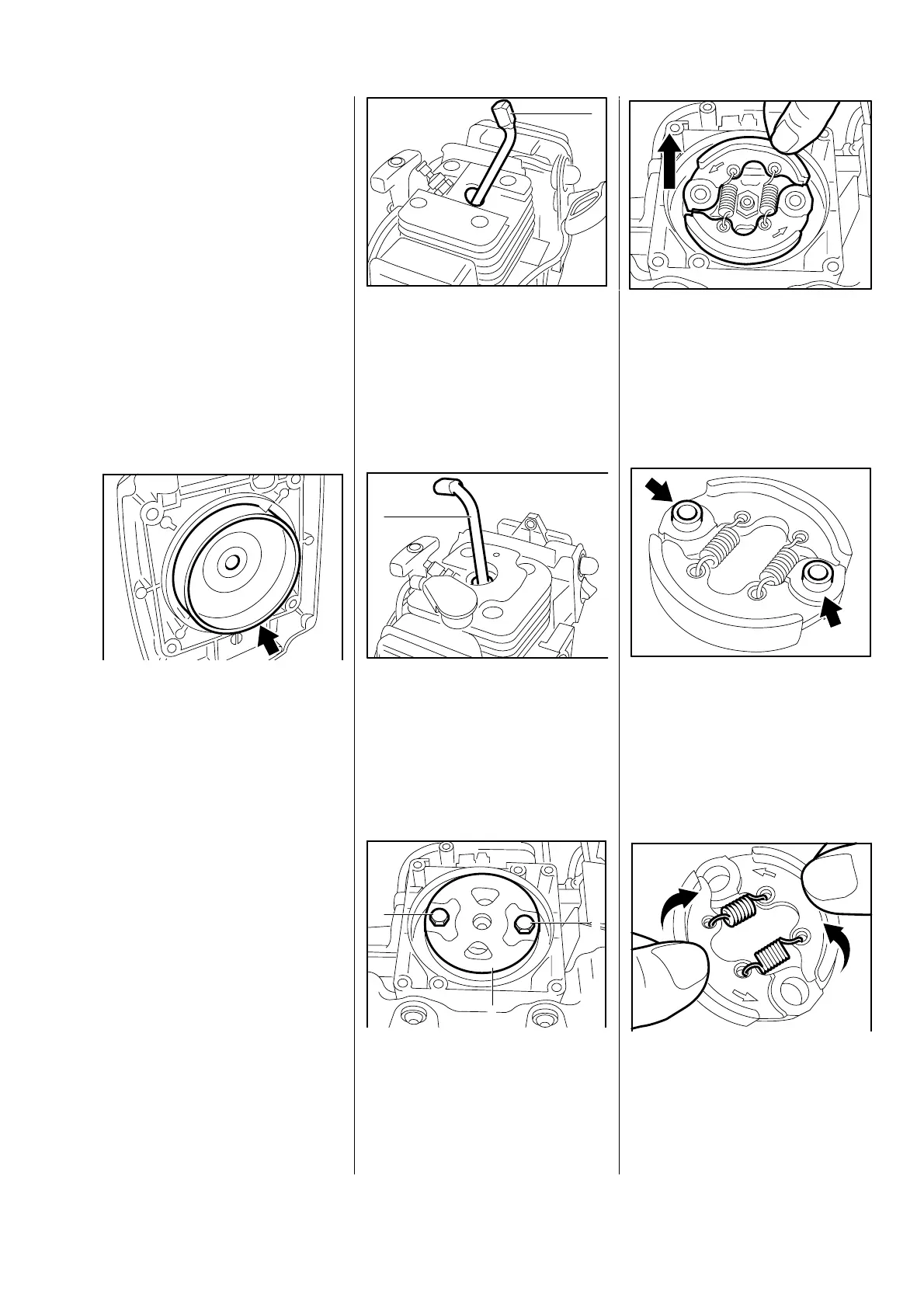

Remove clutch housing -
see 9.1 or 11.2.
All models
•
Inspect clutch drum. There
should be no scores or signs of
excessive wear.
Important: If there are signs of
serious wear on the inside
diameter, fit a new clutch drum -
see 11.2.

Remove the shroud - see 4.1.

Pull off the spark plug boot.
 Unscrew the spark plug.
FS 120...350, FR 350
•
Fit locking strip (1)
0000 893 5903.
FS 400/450, FR 450
•
Fit locking strip (1)
4221 893 5900.
•
Take out screws (1).
•
Remove cover (2).
•
Remove clutch shoes with
bushings.
•
Take bushings out of the clutch
shoes.
•
Twist the clutch shoes and
detach the springs.
Important: Clutch shoes and
springs must always be replaced
in pairs.
3. CLUTCH
3.1 Removing and Installing
250RA001
1
VA
250RA002
1
VA
250RA004
1
1
2
VA
250RA003
VA
250RA005
VA
250RA230
VA
250RA229
VA
