Stihl FS 55 - Mounting the Bike Handle

FS 55, FS 55 C, FS 55 R, FS 55 RC
English
17
6 STIHL PolyCut 20-3
Metal mowing attachments
7 Grass cutting blade 230-4
8 Grass cutting blade 230-8
Deflectors
9 Deflectoronly for mowing heads
10 Deflector with
11 Skirt and blade for all mowing heads
12 Deflector without skirt and blade for
all metal mowing attachments
Handles
13 Loop handle
14 Loop handlewith
15 Barrier bar
16 Bike handle
Harnesses
17 Shoulder strap may be used
18 Shoulder strap must be used
19 Full harness may be used
Equipment
Among other parts, the complete unit in
includes:
– Cutting attachment
– Deflector
– Handle
– Harness (only with bike handle)

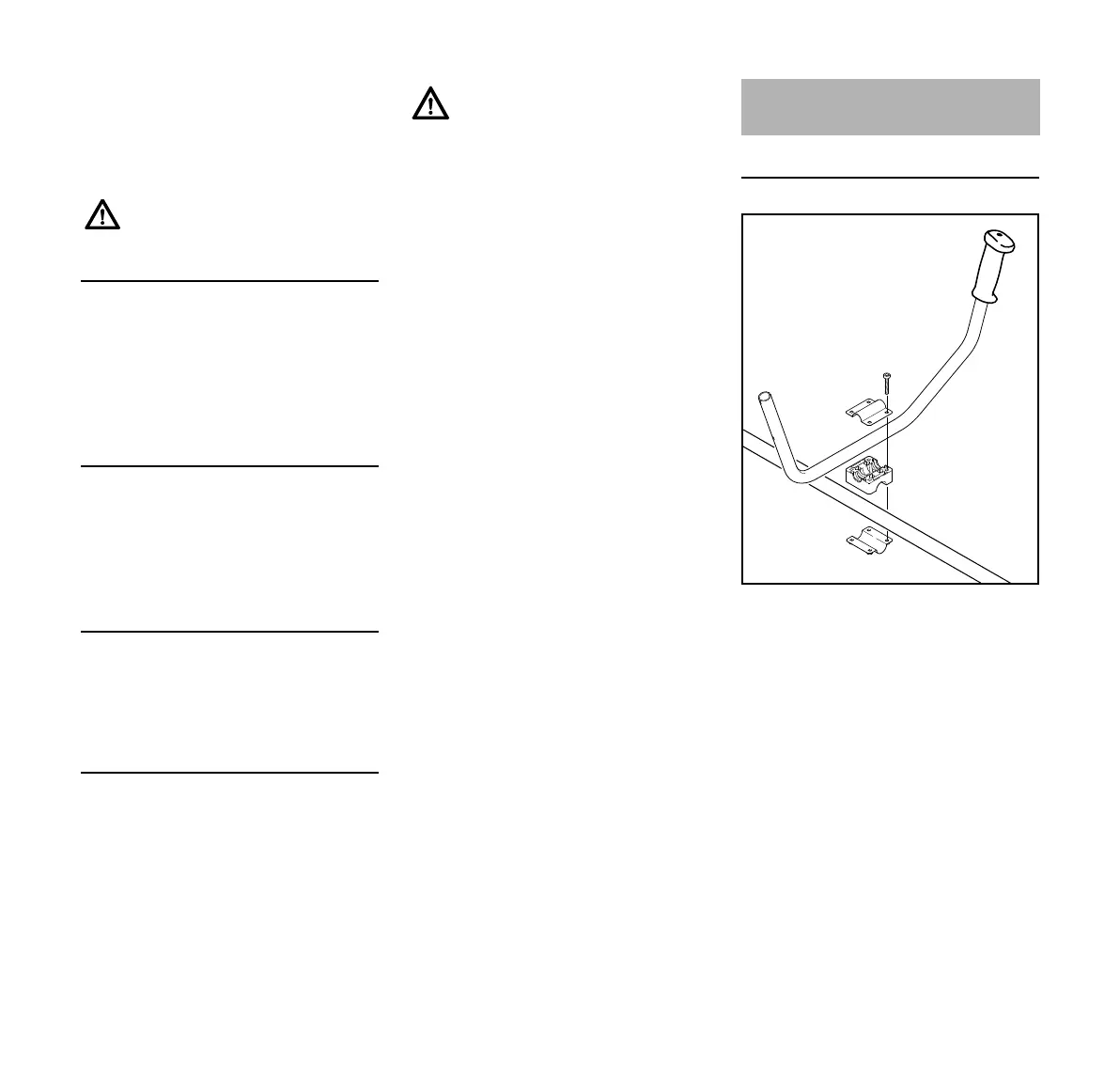

Mounting the handlebar
N Place the clamp (1) and handle
support (2) against the drive
tube (3).
N Fit the handlebar (4) in the handle
support – the rubber handle (5)
must be on the left (viewed from the
engine).
N Place the clamp (6) on the handle
support.
N Insert the screws (7) through the
holes in the parts and screw them
into the clamp (6) as far as stop.
Non-metal grass cutting blades
are not approved.
Warning!
Based on the cutting attachment being
used:
Choose the proper deflector in order to
reduce the risk of injury from thrown
objects and contact with the cutting
attachment.
Make sure your unit is equipped with the
proper handle and harness in order to
reduce the risk of injury from loss of con-
trol and contact with the cutting
attachment: use grass cutting metal
blades on this unit only if equipped with
a bike handle or a loop handle with bar-
rier bar.
Do not use rigid plastic blades, brush
knifes or circular saw blades on this unit.
Mounting the Bike Handle
1
3
2
5
7
6
4
233BA025 KN
