Stihl FS 55 - Mounting the Loop Handle

FS 55, FS 55 C, FS 55 R, FS 55 RC
English
19
Mounting the Loop Handle with
Barrier Bar
N Fit the square nuts (1) in the barrier
bar (2); the holes must line up.
N Place the clamp (3) in the loop
handle (4) and position them both
against the drive tube (5).
N Place the clamp (6) against the
drive tube.
N Place the barrier bar (2) in position
as shown.
N Line up the holes.
N Insert the screws (7) and tighten
them down moderately against the
barrier bar.
N Go to "Securing the Loop Handle".
Mounting the Loop Handle without
Barrier Bar
N Place the clamp (3) in the loop
handle (4) and position them both
against the drive tube (5).
N Place the clamp (6) against the
drive tube.
N Line up the holes.
N Fit washers (7) on the screws (8)
and insert the screws in the holes.
Fit the square nuts (1) and screw
them down as far as stop.
N Go to "Securing the Loop Handle".

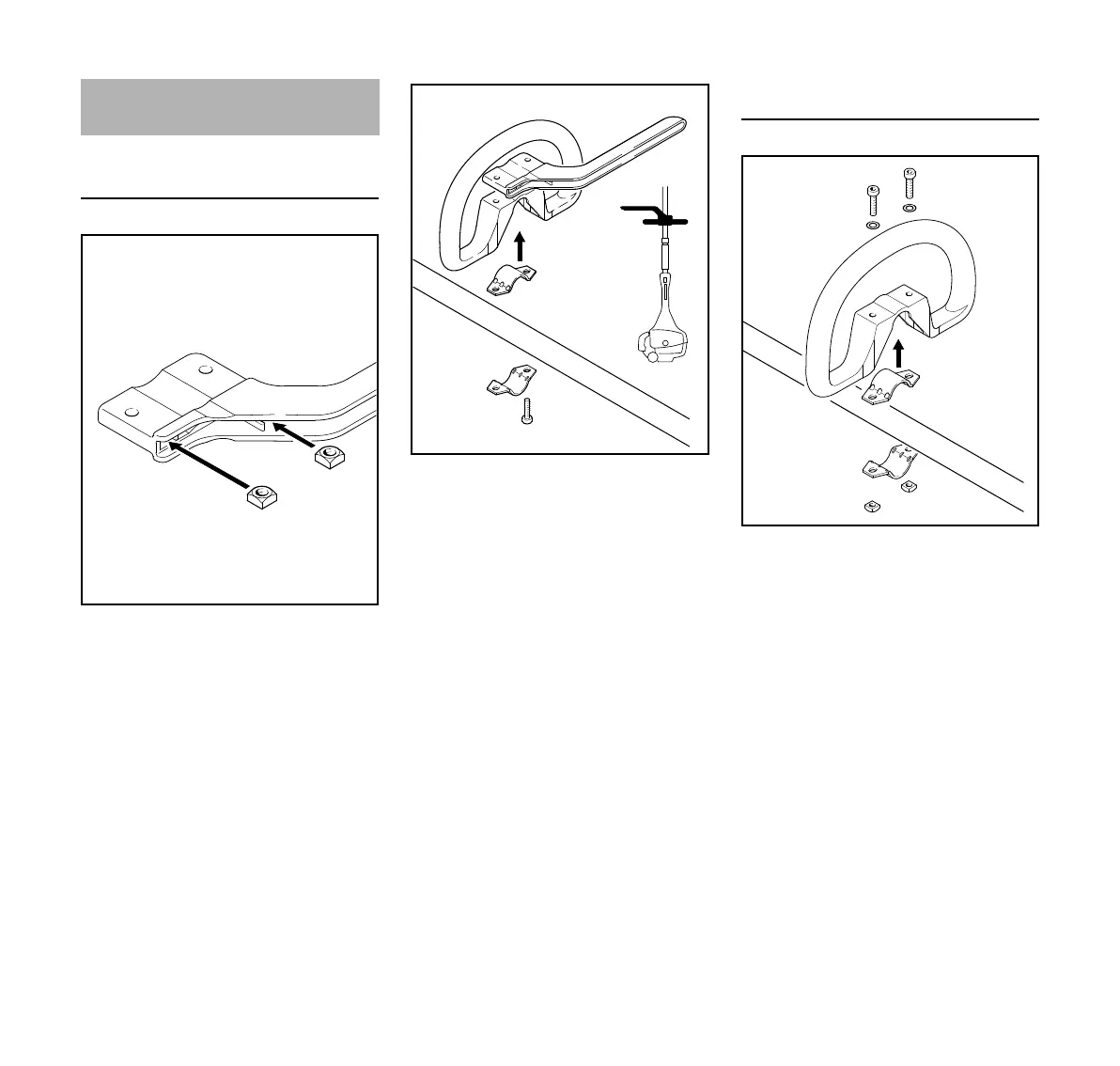

Mounting the Loop Handle
