FS 55, FS 55 C, FS 55 R, FS 55 RC
English
39

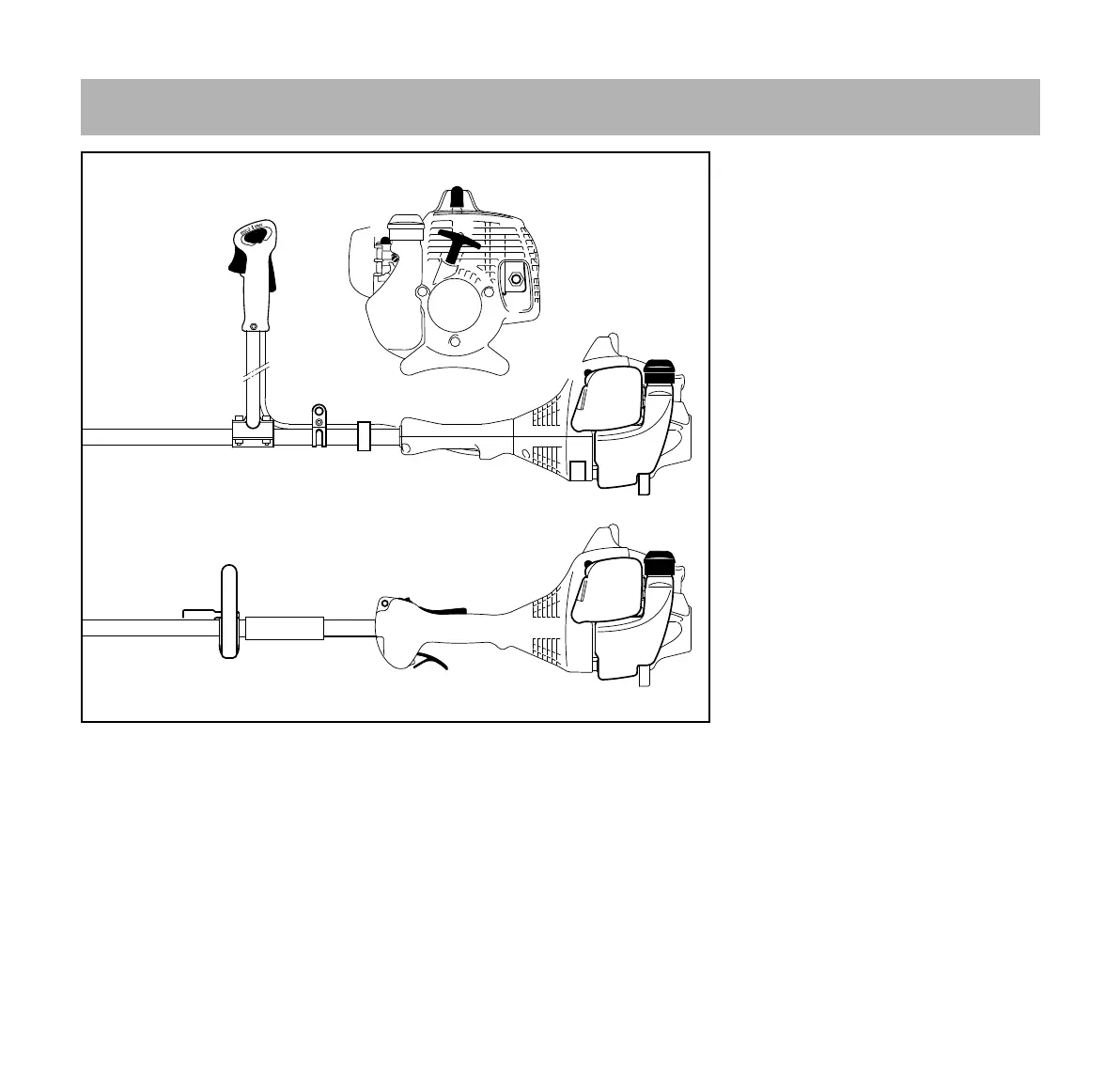

1 Fuel Pump
2 Carburetor Adjusting Screws
3 Spark Plug Boot
4 Starter Grip
5 Muffler with Spark Arresting Screen
6 Throttle Trigger
7 Slide Control
8 Throttle Trigger Lockout
9 Bike Handle
10 Handle Support
11 Carrying Ring
12 Throttle Cable Retainer
13 Choke Lever
14 Air Filter Cover
15 Fuel Filler Cap
16 Fuel Tank
17 Machine Support
18 Loop Handle
19 Barrier Bar
20 Drive Tube
21 Stop Switch
# Serial Number
Main Parts
20
7
8
6
233BA042 KN
18
21
1
5
4
9
10
11
12
13
14
15
16
2
3
17
20
#
11
19
6
8
