FS 70 RC
English
18

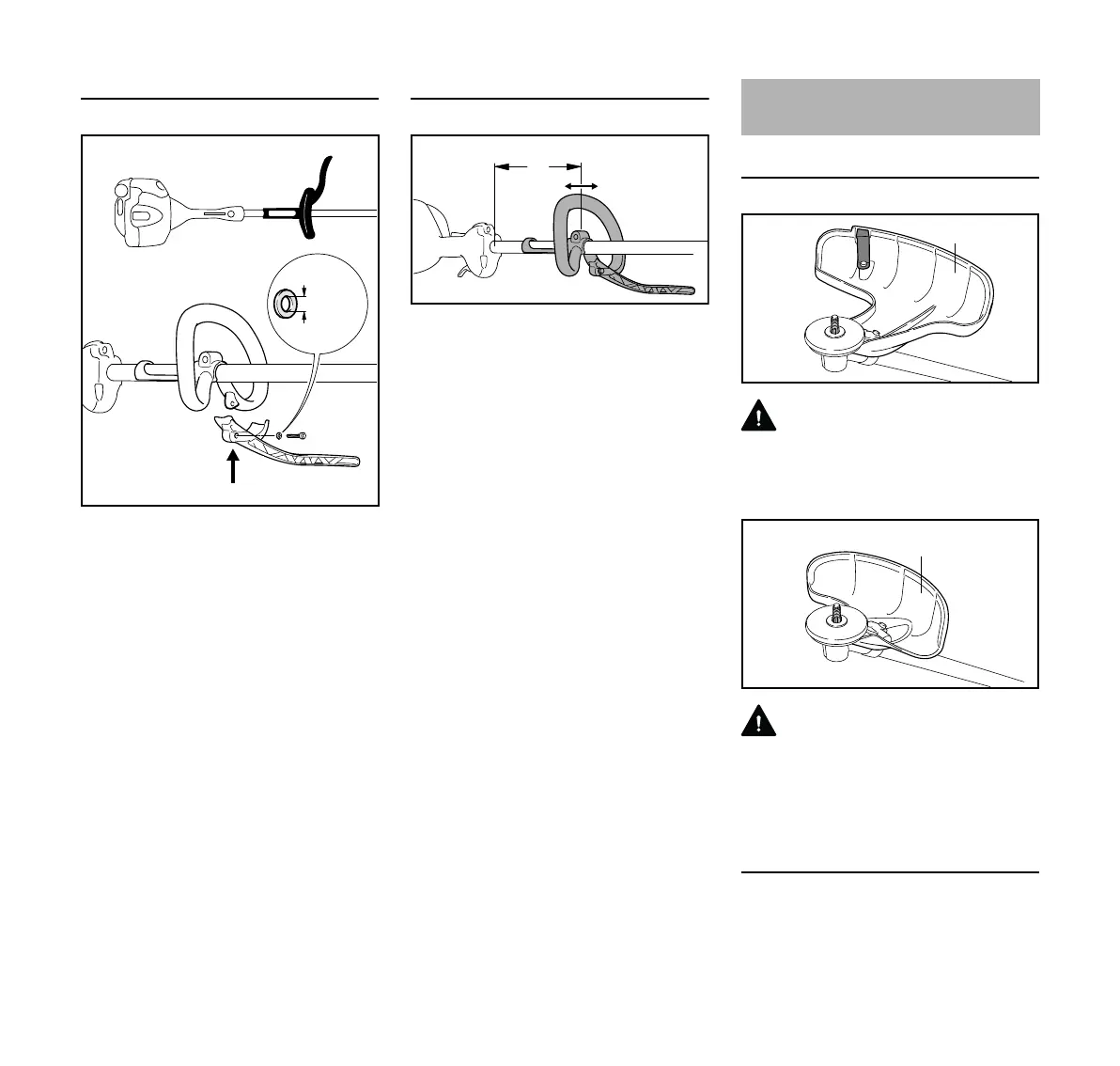

Mounting the barrier bar
N Fit the washer (1) on the M5x23
screw (2).
N Hold the barrier bar (3) against the
loop handle and insert the screw
with washer.
N Tighten down the screw (2) firmly.
Leave the barrier bar permanently
mounted to the loop handle.
Adjusting and securing the loop handle
The loop handle can be adjusted to suit
the height and reach of the operator and
the application by changing
distance (A).
Recommended distance (A): about
14 in (35 cm)
N Loosen the screw on the handle.
N Slide the handle to the required
position.
N Tighten down the screw so that the
handle cannot be rotated on the
drive tube.
Use the right deflector
WARNING
Deflector (1) is approved for mowing
heads only and must therefore be
mounted before fitting a mowing head
WARNING
Deflector (2) is approved for grass
cutting blades only and must therefore
be mounted before fitting a grass cutting
blade.
Mounting the Deflector
Deflectors (1) and (2) are both mounted
to the gearbox in the same way.
(5,3 mm)
547BA031 KN
1
2
3
0.2 in
547BA007 KN
A
Mounting the Deflector
002BA262 KN
1
002BA263 KN
2

Stihl FS 70 Specifications

General

Engine Displacement	27.2 cc
Engine Type	2-stroke
Shaft Type	Straight
Fuel Capacity	0.34 l
Engine Power	1.2 bhp
Overall Length	1.7 m
Starter System	Recoil
Power Output	0.9 kW
