FS 70 RC
English
19

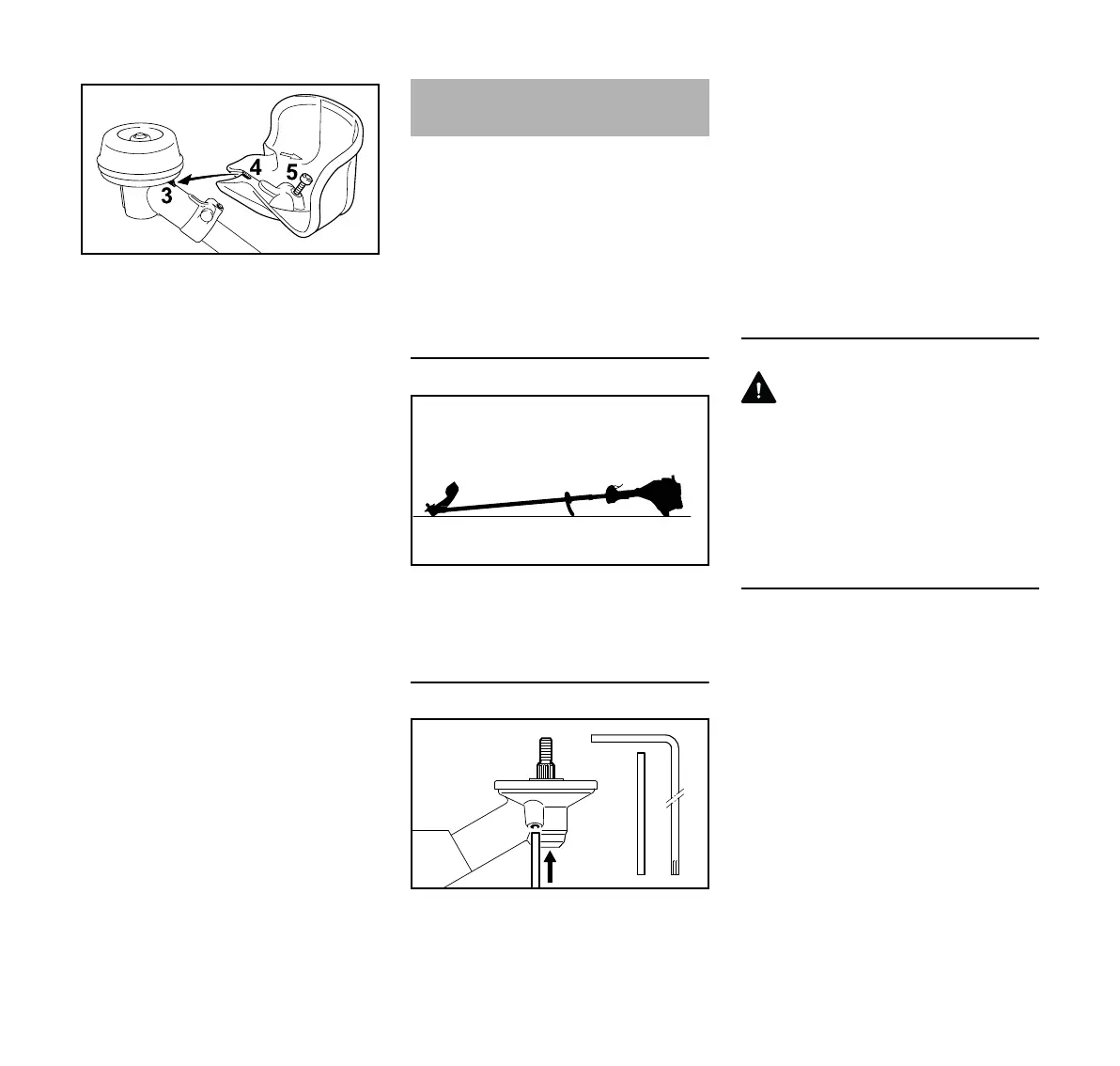

N Position the deflector against the
gearbox so that the lug (3) engages
the recess (4) in the deflector.
N Insert the screw (5) and tighten it
down firmly.
The new machine comes from the
factory wirth the cutting attachment
already mounted.
Note the following points when mounting
other approved cutting attachments –
see "Approved Combinations of Cutting
Attachment, Deflector, Handle,
Harness":
Preparations
N Lay your brushcutter on its back so
that the cutting attachment
mounting face is facing up.
Block the shaft.
The output shaft (1) must be blocked
with the stop pin (2) or screwdriver (2) to
mount or remove cutting attachments.
The stop pin or screwdriver (2) are either
supplied with the machine or available
as special accessories.
N Insert the stop pin (2) or
screwdriver (2) in the hole (3) in the
gearbox as far as stop – and apply
slight pressure.
N Rotate nut or cutting attachment on
the shaft until the stop pin slips into
position and blocks the shaft.
Mounting the cutting attachment
WARNING
Use a deflector that matches the cutting
attachment – see "Mounting the
Deflector".
N Go to "Mounting the Mowing Head"
or "Mounting the Metal Cutting
Attachment".
Mounting the mowing head
Keep the instruction sheet for the
mowing head in a safe place.
STIHL SuperCut 20-2,
STIHL AutoCut 25-2,
STIHL AutoCut C 25-2,
0414BA007 KN
Mounting the Cutting
Attachment
002BA342 KN
2
3
1
002BA346 KN
2
