FS 70 RC
English
25

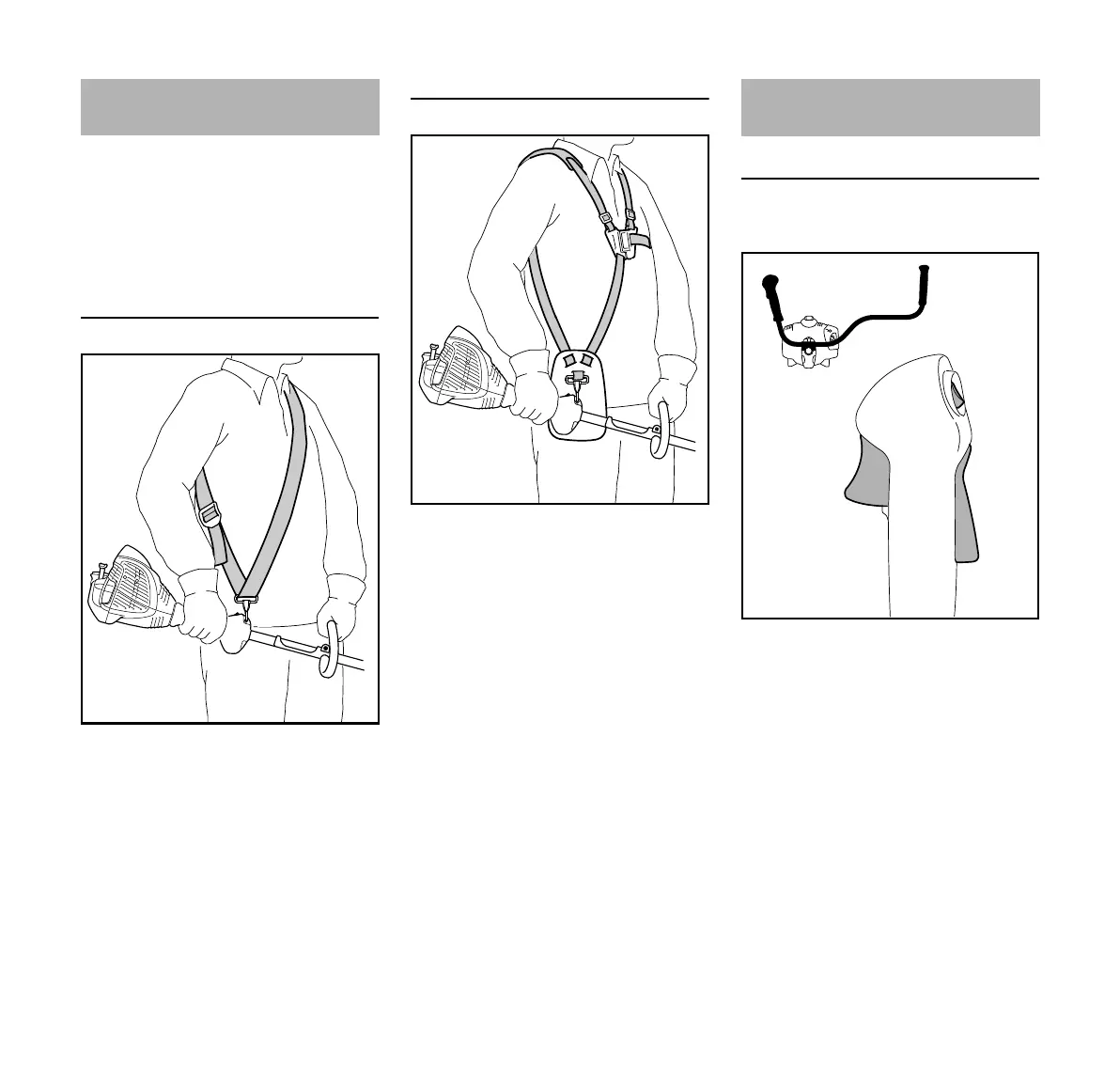

The type and style of the harness
depend on the market.
The use of the harness is described in
the chapter on "Approved Combinations
of Cutting Attachment, Deflector, Handle
and Harness".
Shoulder Strap
N Put on the shoulder strap (1).
N Adjust the length of the strap so that
the carabiner (2) is about a hand’s
width below your right hip.
Harness
N Put on the full harness (1).
N Adjust the length of the strap so that
the carabiner (2) is about a hand’s
width below your right hip.
Controls
Version with Bike Handle
1 Throttle trigger lockout
2 Throttle trigger
3 Stop switch with Run and 0 =Stop
positions.
Fitting the Harness
0414BA009 KN
1
2
0414BA010 KN
1
2
Starting / Stopping the
Engine
1
002BA268 KN
2
3
