50
English / USA
FS 90, FS 90 R

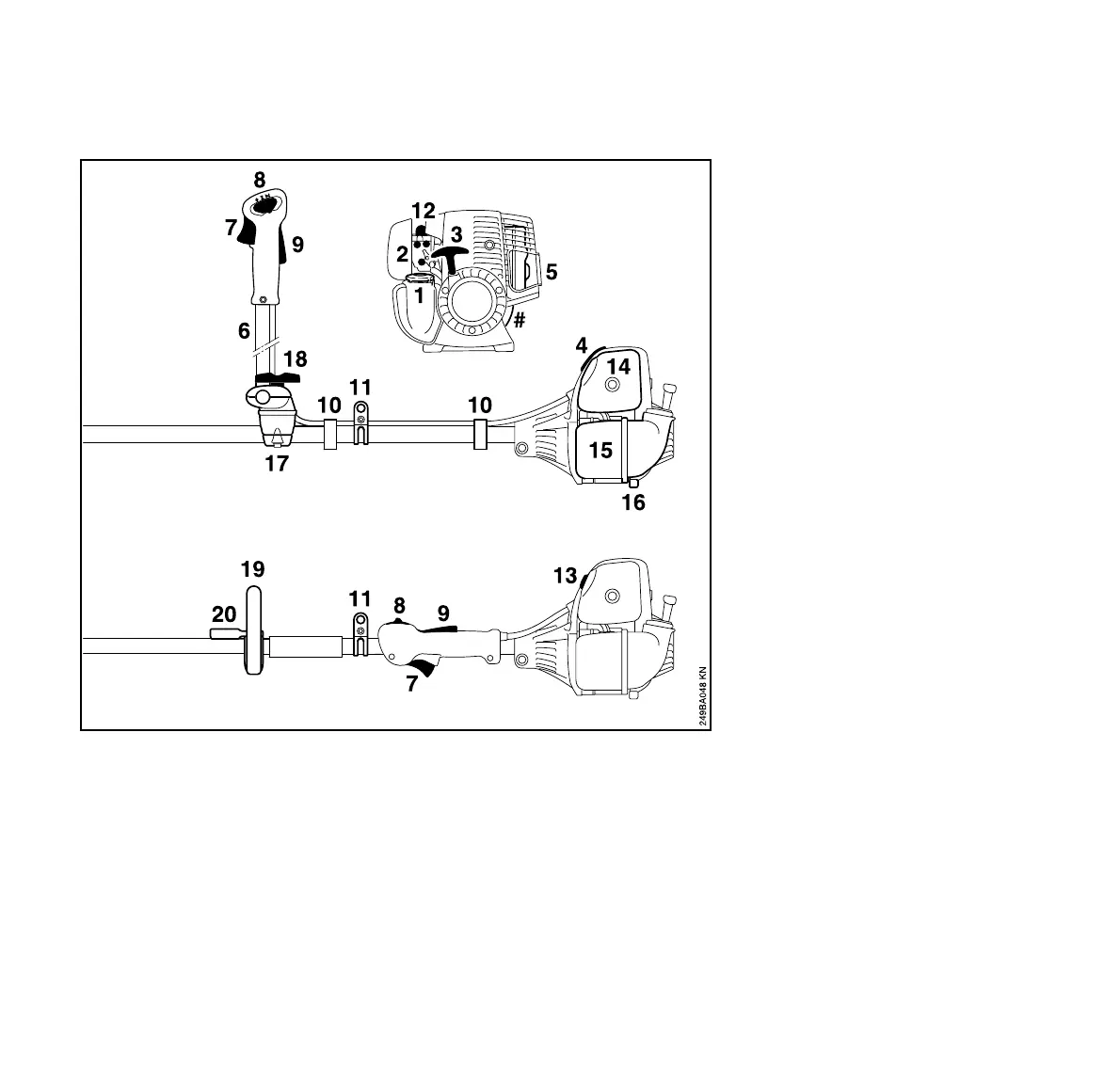

1 Fuel Filler Cap
2 Carburetor Adjusting Screws
3 Starter Grip
4 Spark Plug Boot
5 Muffler
(with spark arresting screen*)
6 Bike Handle
7 Throttle Trigger
8 Slide Control
9 Throttle Trigger Interlock
10 Throttle Cable Retainer
11 Carrying Ring
12 Fuel Pump
13 Choke Knob
14 Air Filter Cover
15 Fuel Tank
16 Machine Support
17 Handle Support
18 Wing Screw
19 Loop Handle
20 Barrier Bar
# Serial number
* see "Guide to Using this Manual"
Parts and Controls
