FS
English
47

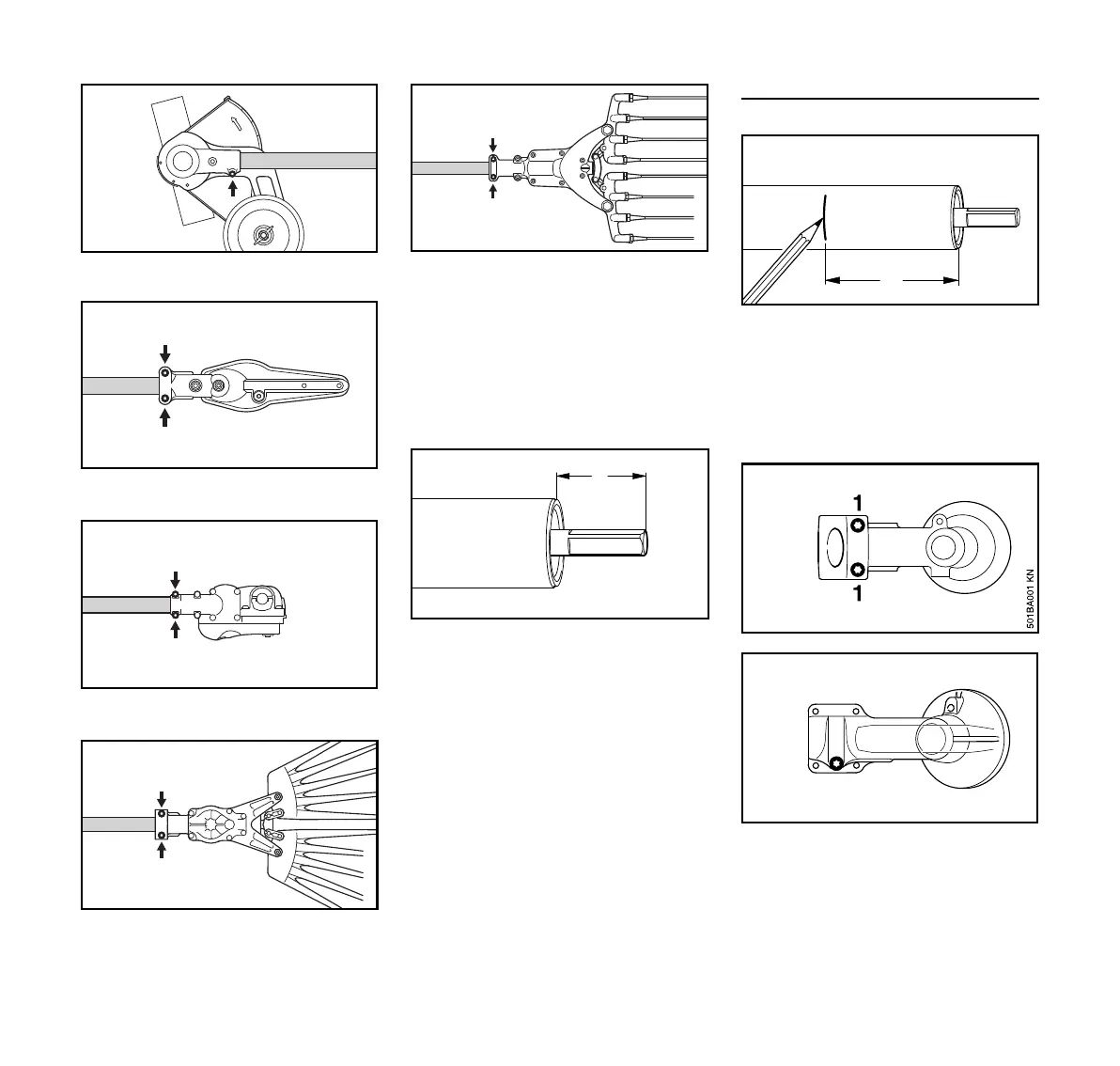

N Loosen the clamp screws (arrows)
on the gearbox housing – do not
remove them.
N Pull the gearbox off the drive tube.
If the drive shaft slips out of the tube
when you pull off the gearbox:
N Push the drive shaft into the tube.
The drive shaft must not project from the
tube more than L = 22 mm (7/8 in).
If dimension (L) is not correct:
N Apply slight pressure to the drive
shaft and rotate it slowly at the same
time until it can be pushed in to the
specified length.
Mounting the Gearbox
N Apply a mark (with pencil or felt-tip
pen) at distance A (40 mm/1.6 in)
from the end of the drive tube.
N Place the power tool on the ground
so that it rests on the machine
support.
N Loosen the clamp screws (1) on the
gearbox – do not remove them.
228BA091 KN
FCS
FH/HL
228BA081 KN
HT
228BA082 KN
SP
228BA084 KN
228BA085 KN
SP 10
381BA015 KN
L
413BA015 KN
A
1
228BA087 KN
