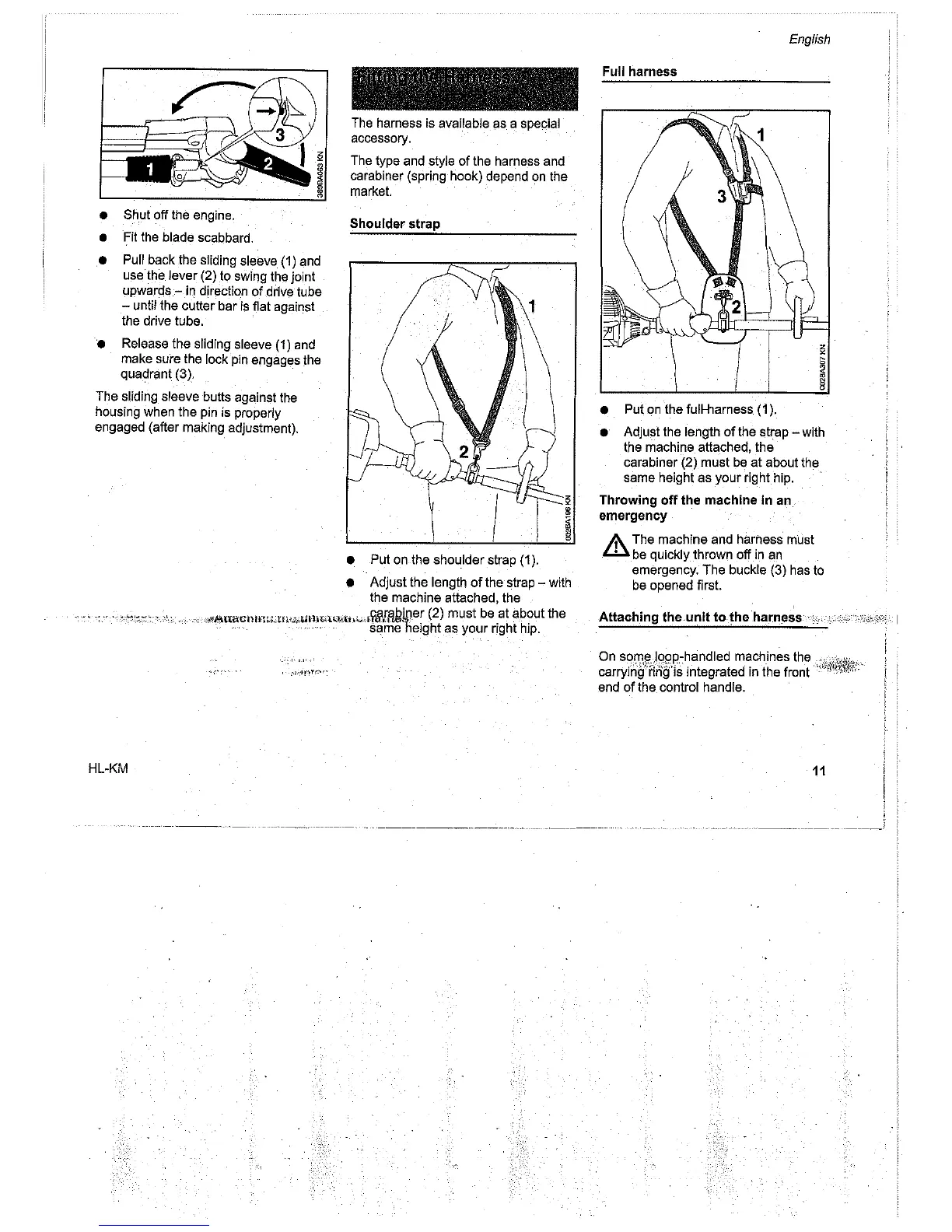

• Shut off the engine.
• Fit the blade scabbard.
• Pull back the sliding sleeve (1) and
use the lever (2) to swing the jOint
upwards - in direction
of
drive tube
- until the cutter bar
is
fiat against
the drive tube.
.•
Release the sliding sleeve (1) and
make sure the lock pin engages the
quadrant (3).
The
sliding sleeve butts against the
housing when the pin is properly
engaged (after making adjustment).
The
harness is available as a special
accessory.
The type and style
of
the harness and
carabiner (spring hook) depend
on
the
market.
Shoulder strap
• Put
on
the shoulder strap (1).
• Adjust the length
of
the strap - with
the machine attached, the
"'
",
..
"acn"I~'m",,"I1I""O*<""'fl'.llfilllirer
(2) must be athab
h
" out the
"
"...
same nelght
as
your
rrg
tip.
HL-KM
English
Full harness
• Put
on
the fulHharness (1).
• Adjust the length
of
the strap - with
the machine attached, the
carabiner (2)
must be
at
about the
same height
as
your right hip.
Throwing off the machine
In
an
emergency
l'
The machine and harness must
Lll
be quickly thrown off in
an
emergency. The buckle (3) has to
be opened
fi
rst.
Attaching
the unit to the harness . "·c.,,,,;
On som.e)99P-handled machines the
"'%i\i~!:I;'
carrying'fing',s integrated in the
front"
end
of
the control handle.
11
To Next Page
