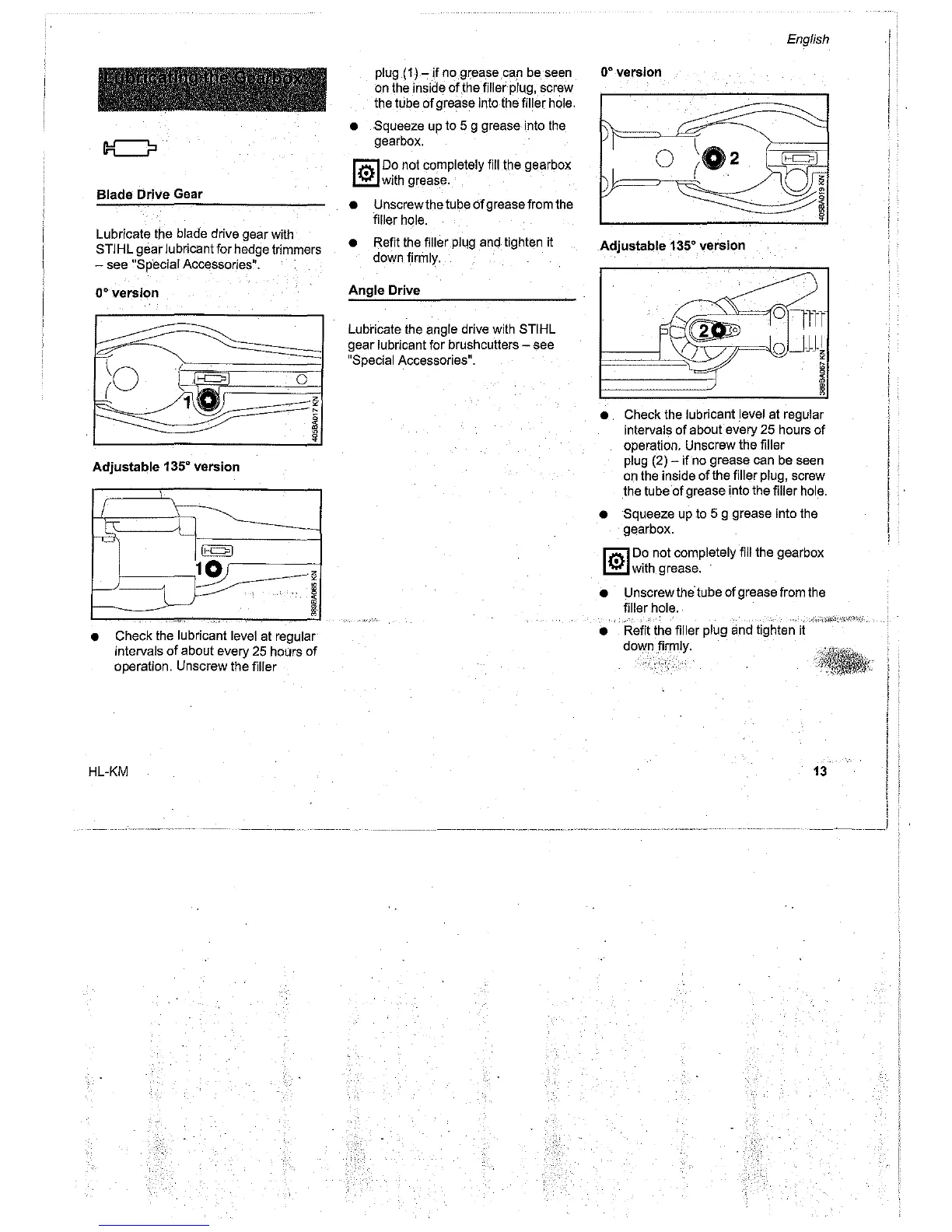

Blade Drive Gear
Lubricate the blade drive gear with
STIHL
gear
lubricant for hedge trimmers
- see
"Sp'ecial
Accessories".
0° version
;0
Adjustable 135" version
I
I
-
-,
1r=1
10
z
<
1
.
,
.
I
,,"'"
•
Check the lubricant level at regular
intervals
of
about every 25 hours
of
operation. Unscrew the filler
HL-KM
plug
(1)-
if no grease can be seen
on the inside
of
the filler plug, screw
the
tube
of
grease into the filler hole.
• Squeeze up to 5 g grease into the
gearbox.
I~IDO
not completely fill the gearbox
~
with
grease.
• Unscrew the tube
of
grease from the
filler hole.
• Refit the filler plug and tighten it
down firmly.
Angle Drive
Lubricate the angle drive with STIHL
gear lubricant for brush cutters - see
"Special
Accessories".
English
0° version
Adjustable 135" version
• Check the lubricant level at regular
intervals
of
about every
25
hours
of
operation. Unscrew the filler
plug
(2) - if no grease can be seen
on the inside
of
the filler plug, screw
the tube
of
grease into the filler hole.
• Squeeze up to 5 g grease into the
gearbox.
1,0:0.100
not completely fill the gearbox
»;£
with grease.
• Unscrew the' tube
of
grease from the
filler hole.
·";,:;'.:i(.!;:~'(""·'~'i.'·
•
Refit the filler plug and tighten it
down firmly.
