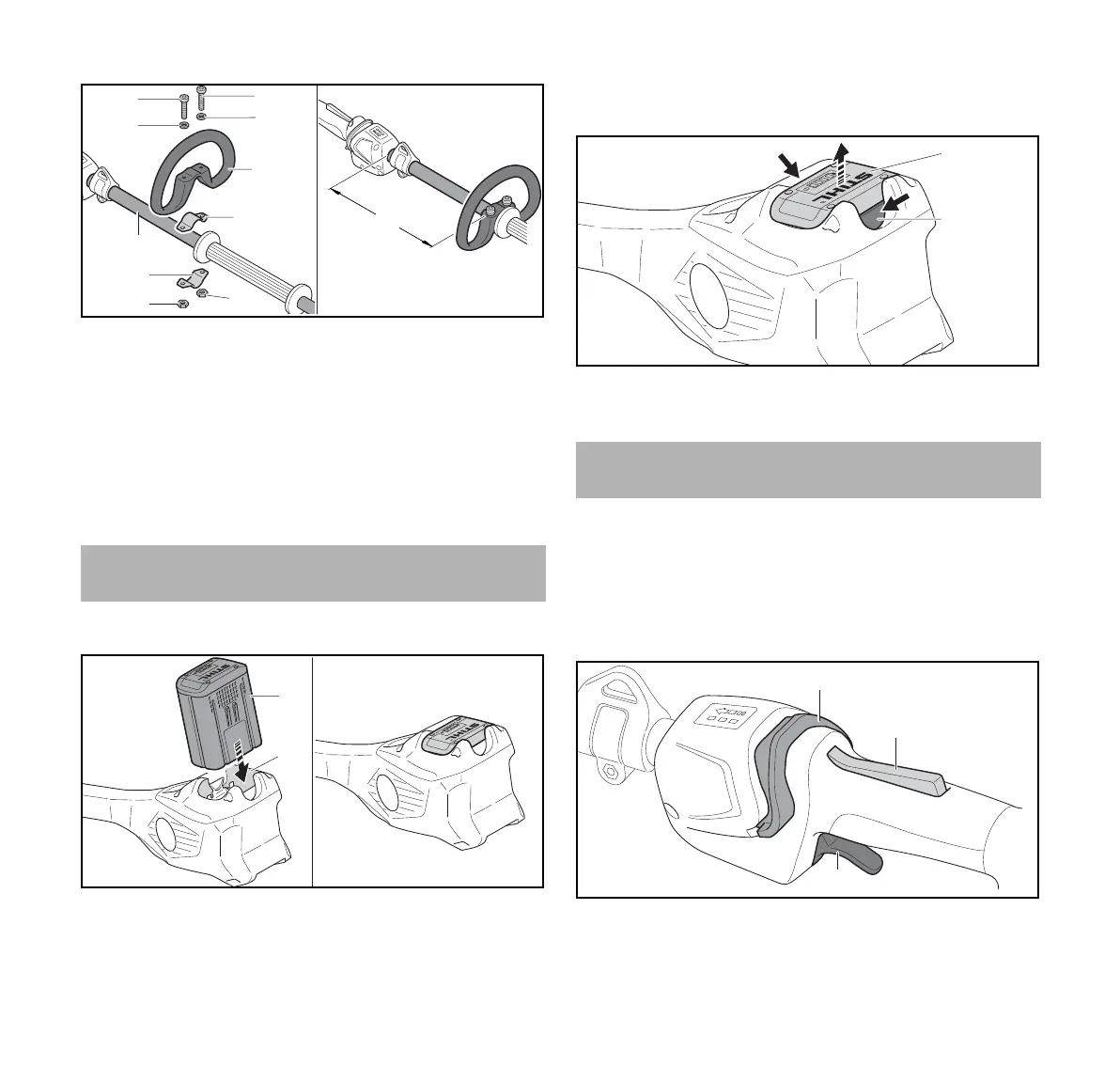

8 Removing and Fitting the Battery
► Fit the clamp (4) in the loop handle (3).
► Place the loop handle (3) with clamp (4) on the shaft (5).
► Fit the washers (2) on the screws (1).
► Press the clamp (6) against the shaft (5).
► Insert the screws (1) through holes in the loop handle (3)
and clamps (4 and 6).
► Slide the loop handle (3) until the distance (a) is 20 cm.
► Fit and tighten down the nuts (7) firmly.
8.1 Inserting the Battery
► Insert the battery (1) up to the limit stop into the battery
compartment (2).
The battery (1) engages with a click and is now locked.
8.2 Removing the Battery
► Stand the hedge trimmer on a level surface.
► Press both locking levers (1).
The battery (2) is released and can be removed.
9.1 Switching on the long-reach hedge trimmer
► Hold the long-reach hedge trimmer with one hand on the
control handle - wrap your thumb around the handle.
► Hold the long-reach hedge trimmer firmly with your other
hand on the loop handle or handle hose - wrap your thumb
around the loop handle or handle hose.
► Depress the trigger lockout (1) with your hand and keep it
pressed.
8 Removing and Fitting the Battery
7
4
6
5
1
1
2
2
3
7
a
0000097311_001
1
2
0000097033-001
9 Switching the Hedge Trimmer On/Off
2
1
0000097034-001
