Stihl HSE 42 - Main Parts

HSE 42, HSE 52
English
12
1 Power cord
2 Strain relief (cord retainer)
3 Lock for strain relief
4 Trigger
5 Trigger switch lockout
6 Switch lever
7 Loop handle
8 Hand guard
9 Cutting blades (HSE 42) – see
"Specifications"
10 Cutting blades (HSE 52) – see
"Specifications"
11 Blade scabbard
12 Blunt projection (integral cutter
guard)
13 Tip guard (HSE 52 only)
# Serial number

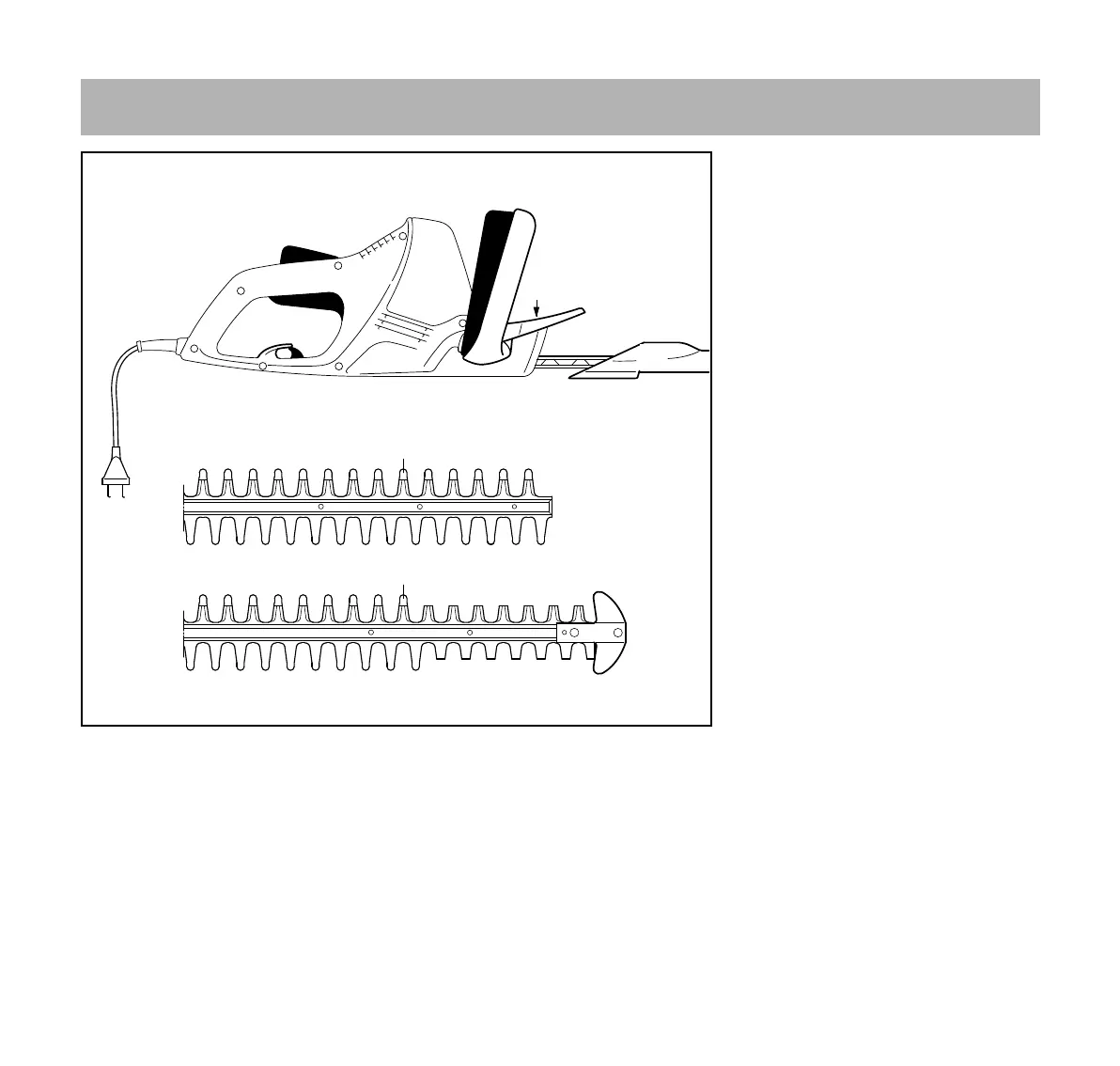

Main Parts
12
12
8
5
2
3
9930BA010 KN
1
4
6
7
9
10
11
#
13
9, 10
