Stihl HT 101 Instruction Manual

HT 100, HT 101, HT 130, HT 131
English
22
NOTICE
A full chain oil tank is sufficient for only
half a tankful of fuel. Check the oil level
regularly during cutting work. Never
allow the oil tank to run dry.
Preparations
N Thoroughly clean the oil filler cap
and the area around it to ensure that
no dirt falls into the tank.
N Position the machine so that the
filler cap faces up.
Opening
N Raise the grip until it is upright.
N Turn the cap counterclockwise
(about a quarter turn).
Marks on filler cap and oil tank must line
up.
N Remove the cap.
Filling up with chain oil
N Filling up with chain oil
Take care not to spill chain oil while
refilling and do not overfill the tank.
Closing
Grip must be vertical:
N Fit the cap – marks on filler cap and
oil tank must line up.
N Press the cap down as far as stop.

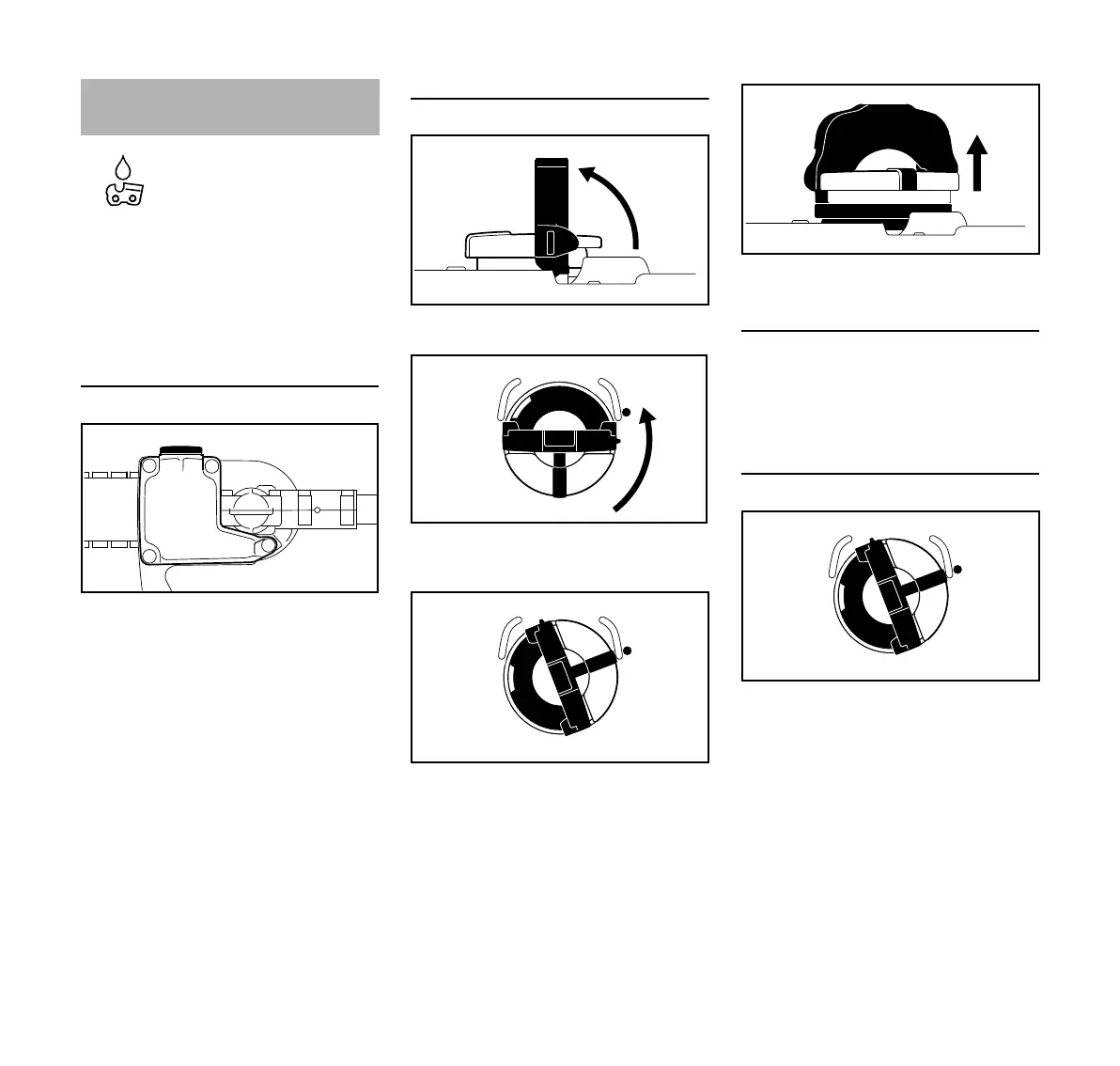

Filling Chain Oil Tank
390BA047 KN
002BA575 KN
002BA576 KN
002BA577 KN
002BA578 KN
002BA577 KN

Stihl HT 101 Specifications

General

Engine Type	2-stroke
Displacement	31.4 cc
Power Output	1.05 kW
Overall Length	270 cm
Vibration Level Left/Right	4.5/4.5 m/s²
Guide Bar Length	30 cm
Powerhead Weight	6.6 kg
Fuel Tank Capacity	530 cc
Oil Tank Capacity	0.2 liters
