Stihl HT 101 Instruction Manual

HT 100, HT 101, HT 130, HT 131
English
41

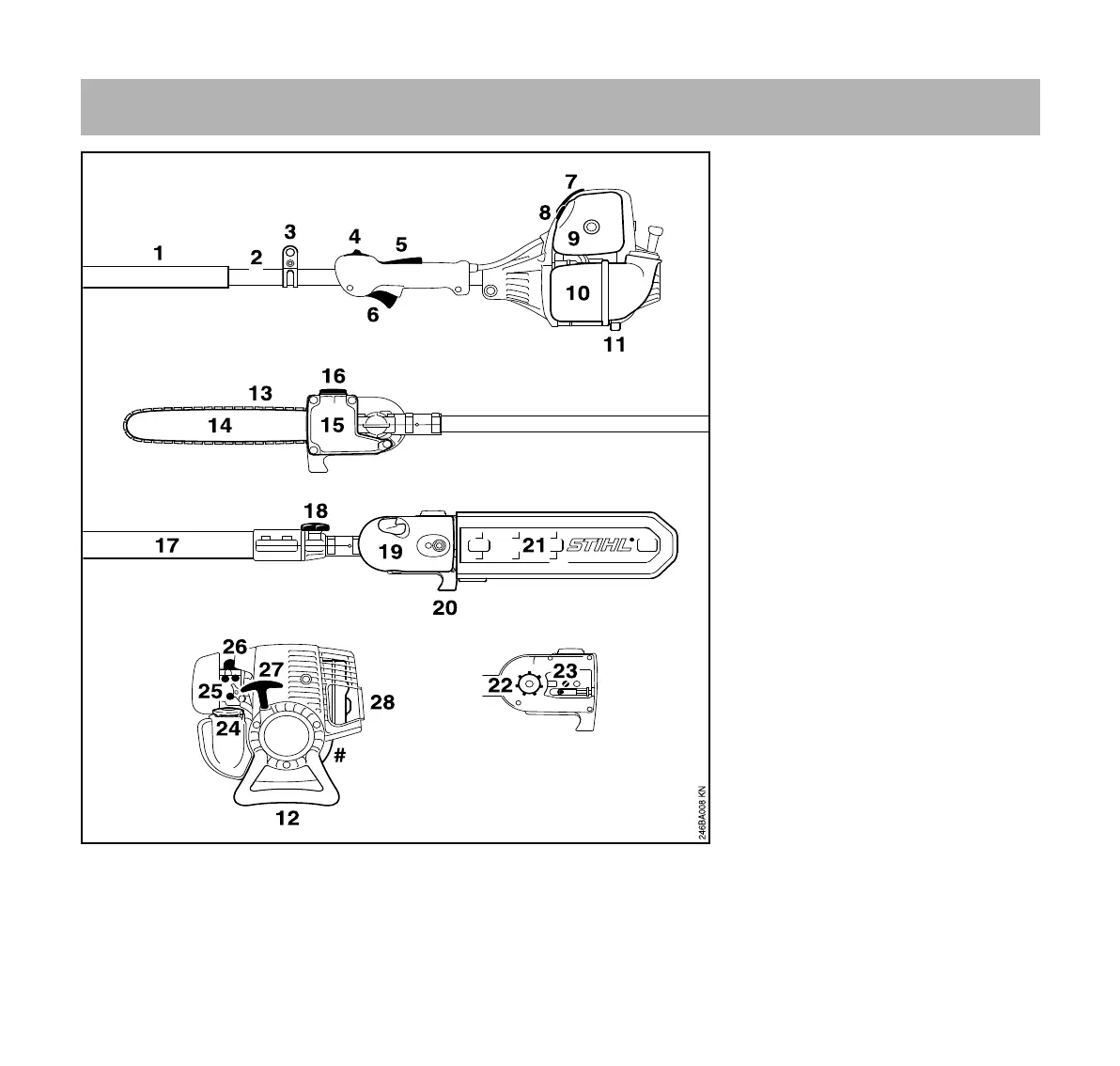

1 Handle Hose (HT 100, HT 130)
2 Fixed Drive Tube (HT 100, HT 130)
3 Carrying Ring
4 Slide Control
5 Throttle Trigger Lockout
6 Throttle Trigger
7 Spark Plug Boot
8 Choke Knob
9 Air Filter Cover
10 Fuel Tank
11 Machine Support
12 Machine Support (HT 130, HT 131)
13 Oilomatic Saw Chain
14 Guide Bar
15 Oil Tank
16 Oil Filler Cap
17 Telescopic Drive Tube (Shaft)
(HT 101, HT 131)
18 Clamp Screw (HT 101, HT 131)
19 Chain Sprocket Cover
20 Hook
21 Chain Guard (Scabbard)
22 Chain Sprocket
23 Chain Tensioner
24 Fuel Filler Cap
25 Carburetor Adjusting Screws
26 Manual Fuel Pump
27 Starter Grip
28 Muffler (with Spark Arresting
Screen)
# Serial Number
Main Parts

Stihl HT 101 Specifications

General

Engine Type	2-stroke
Displacement	31.4 cc
Power Output	1.05 kW
Overall Length	270 cm
Vibration Level Left/Right	4.5/4.5 m/s²
Guide Bar Length	30 cm
Powerhead Weight	6.6 kg
Fuel Tank Capacity	530 cc
Oil Tank Capacity	0.2 liters
