16 Series 4180 Powerhead

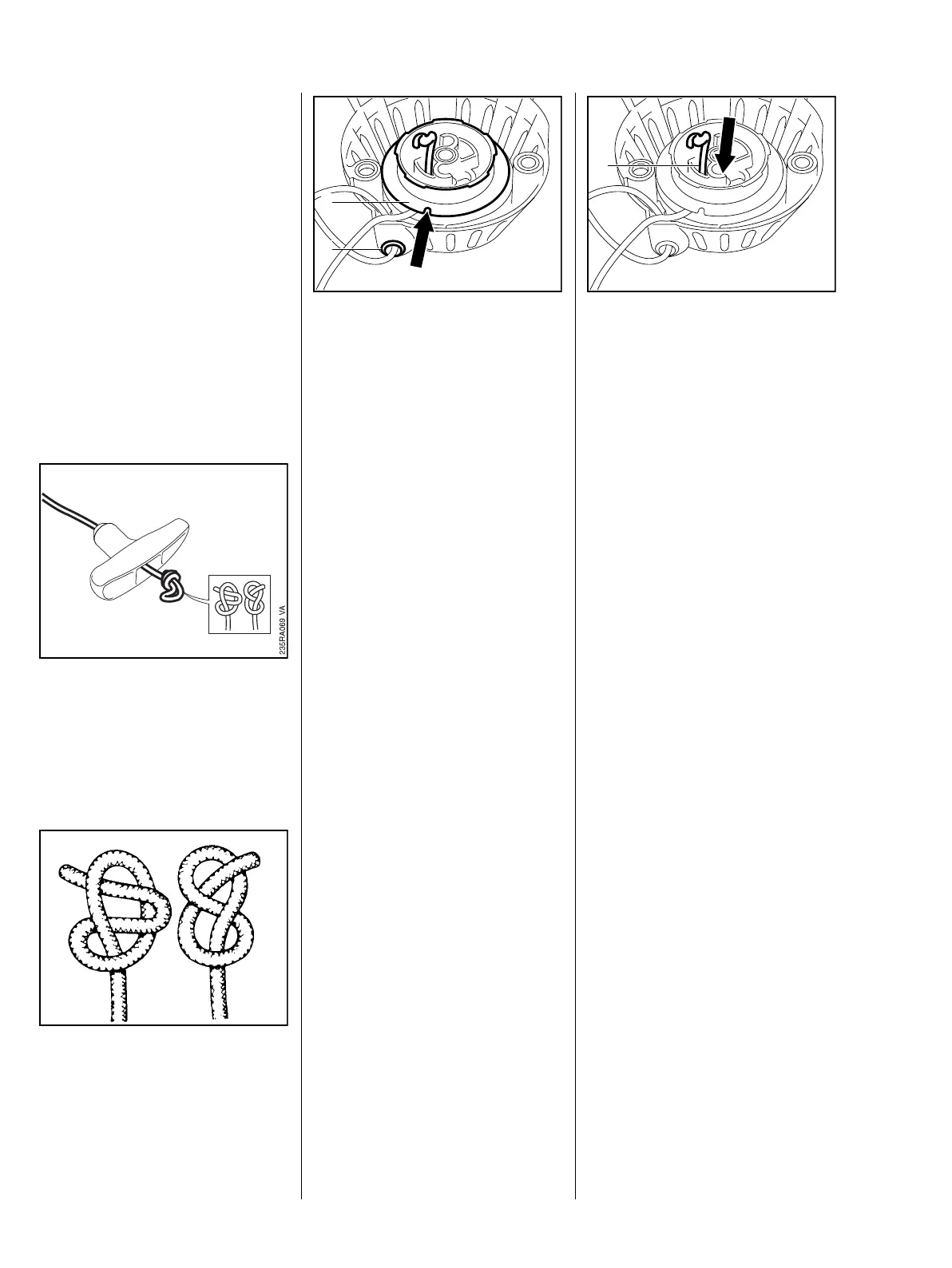

– Remove the rewind starter,
b 5.2
– Remove remaining rope from the
rope rotor and starter grip.
: Thread end of new rope through
the underside of the starter grip
and pull it out.
: Secure the end of the rope with
one of special knots shown.
– Pull the rope back into the starter
grip.
VA
982RA036
– Thread the other end of the rope
through the guide bush (2) from
outside.
– Thread the rope through the hole
in the side of the rope rotor (1).
: Pull out the rope and secure it
VA
249RA028
1
2
with a simple overhand knot.
: Pull the rope back into the rotor
so that the knot locates in the
recess (1).
– Tension the rewind spring,
b 5.4.1
1
VA
249RA029
5.4 Starter Rope

Stihl HT 101 Specifications

General

Engine Type	2-stroke
Displacement	31.4 cc
Power Output	1.05 kW
Overall Length	270 cm
Vibration Level Left/Right	4.5/4.5 m/s²
Guide Bar Length	30 cm
Powerhead Weight	6.6 kg
Fuel Tank Capacity	530 cc
Oil Tank Capacity	0.2 liters
