Stihl HT 101 User Manual

38 Series 4180 Powerhead

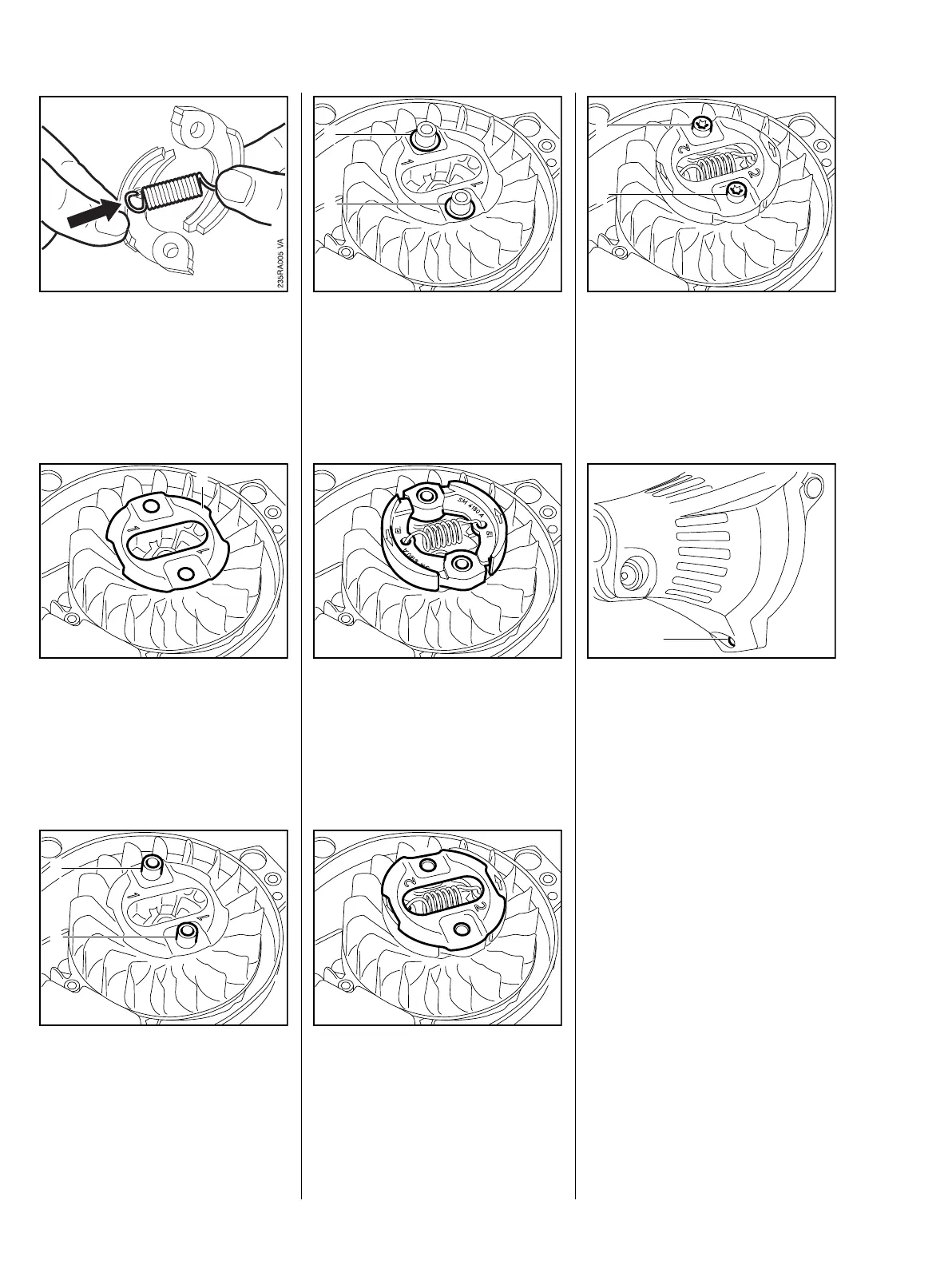

: Attach spring to clutch shoes.
: Place cover plate (1), with "1"
facing up, on the flywheel.
VA
249RA065
1
: Fit sleeves (1 and 2) on cover
plate and press into the flywheel
VA
249RA066
1
2
: Fit corrugated washers (1 and 2).
VA
249RA067
1
2
: Fit clutch shoes with lettering
facing up.
VA
249RA068
: Fit the cover plate with "2" facing
up.
VA
249RA069
: Fit screws (1 and 2) and tighten
them down firmly,
b 3.4
VA
249RA070
2
1
– Fit the fan housing on the engine.
: Tighten down the screw (1)
firmly, b 3.4
VA
249RA060
1
7.6.2 Assembling and
Installing

Stihl HT 101 Specifications

General

Engine Type	2-stroke
Displacement	31.4 cc
Power Output	1.05 kW
Overall Length	270 cm
Vibration Level Left/Right	4.5/4.5 m/s²
Guide Bar Length	30 cm
Powerhead Weight	6.6 kg
Fuel Tank Capacity	530 cc
Oil Tank Capacity	0.2 liters
