13KM 85, KM 85 R
english / USA
: On the control handle, check that
the slide (arrow) in the slot below
the throttle trigger interlock is at the
bottom of the slot.
If the slide is not at the end of the slot:
: Use a screwdriver to push the slide
to the bottom of the slot (see
illustration).
1)
On bike-handled versions only
* see "Guide to Using this Manual"
: Press down the trigger interlock (1)
and squeeze the throttle trigger (2)
(full throttle) – this sets the throttle
cable correctly.
This setting procedure causes the slide
to move away from the end of the slot.
Loop handle with barrier bar
: Insert square nuts (1) in the
barrier bar (2).
: Line up the holes.

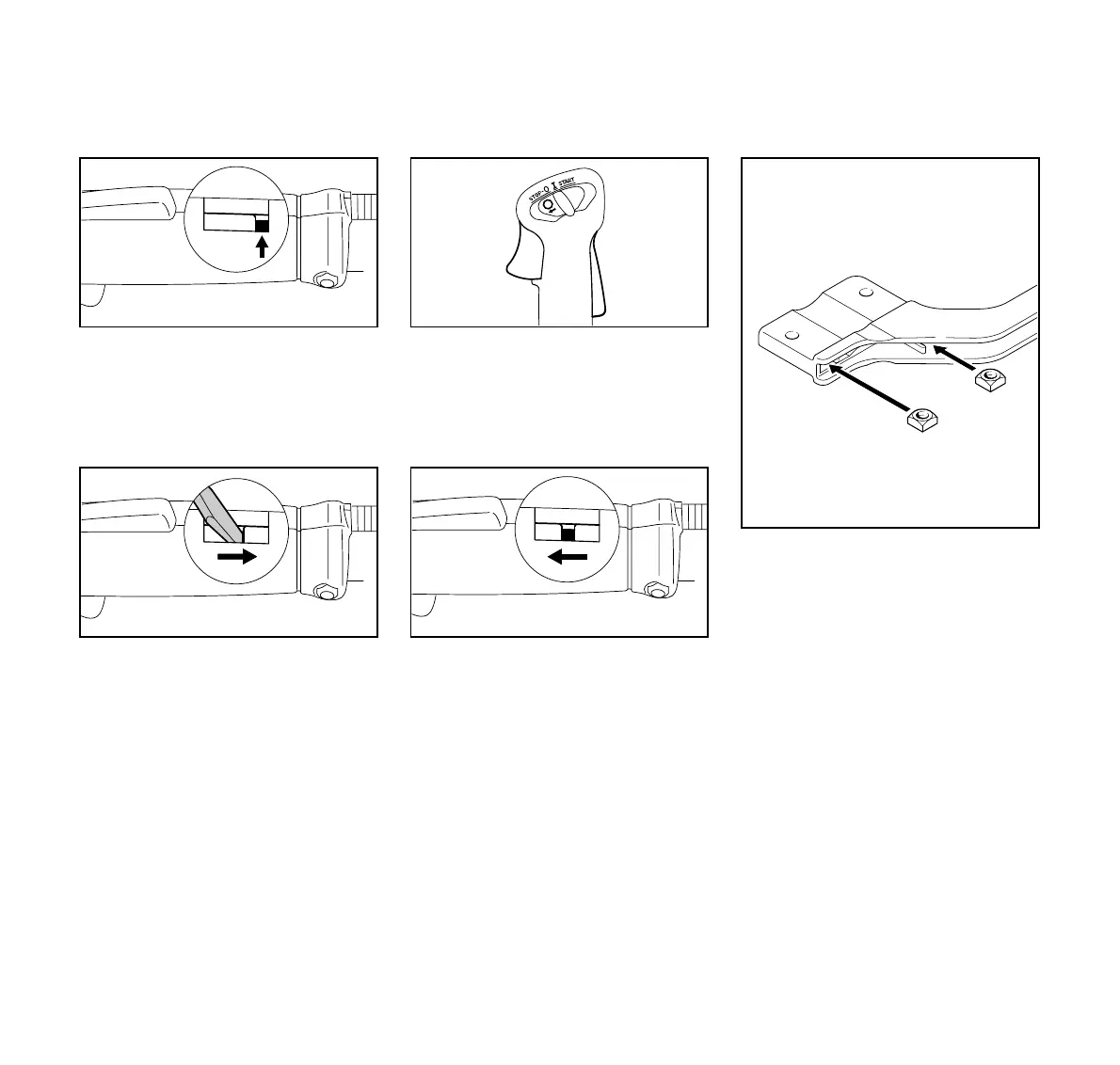

Adjusting the Throttle Cable
Control Handle
1)
with Slide*
002BA162 KN002BA163 KN
S
T
O
P
249BA017 KN
1
2
002BA160 KN
Mounting the Loop Handle
2
002BA098 KN
1
1
