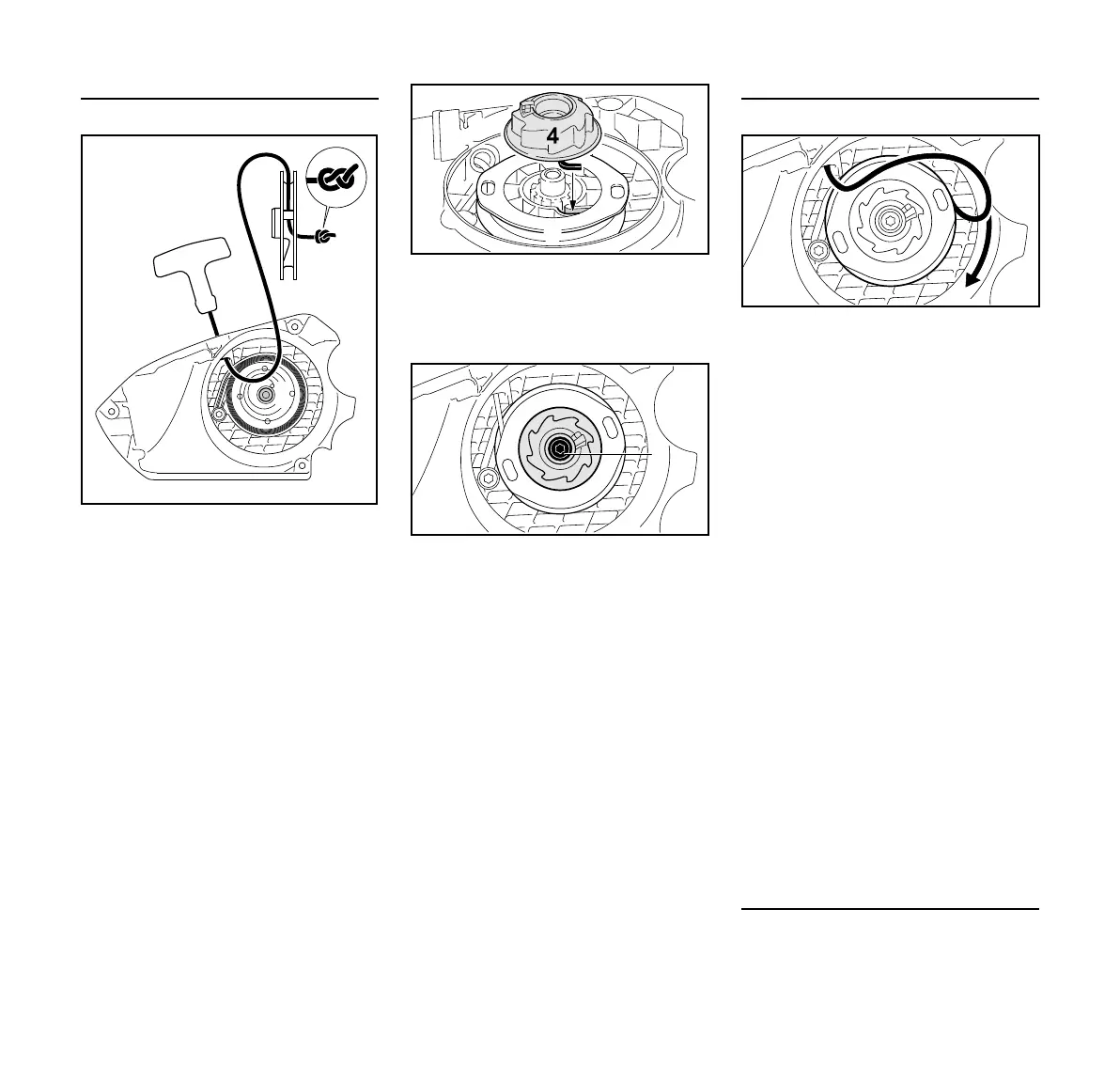

Installing the Rope Rotor
N Thread the end of the rope through
the top of the guide bushing (1) and
rope rotor (2) and secure it with the
special knot shown.
N Coat the rope rotor bearing bore
with non-resinous oil.
N Fit the rope rotor on the starter
post (3).
N Fit the carrier (4) on the rope rotor,
making sure the spring loop
engages the recess in the rope
rotor°(2).
N Insert and tighten down the
screw (5).
Tensioning the Rewind Spring
N Make a loop in the unwound starter
rope and use it to turn the rope rotor
six full revolutions in the direction of
the arrow.
N Hold the rotor steady. Pull out and
straighten the twisted rope.
N Release the rope rotor.
N Release the rope slowly so that it
winds onto the rotor.
The starter grip must locate firmly in the
guide bushing. If the grip droops to one
side: Add one more turn on the rope
rotor to increase spring tension.
NOTICE
When the starter rope is fully extended it
must still be possible to rotate the rotor
another half turn. If this is not the case,
the spring is overtensioned and could
break.
N Take one turn of the rope off the
rotor.
N Fit the fan housing on the engine
housing.
Replacing a Broken Rewind Spring
N Removing the Rope Rotor
1
2011BA035 KN
2
3
2011BA036 KN
2
5
2011BA037 KN
2011BA038 KN
