Stihl Ms 201

MS 201, MS 201 C
English
33

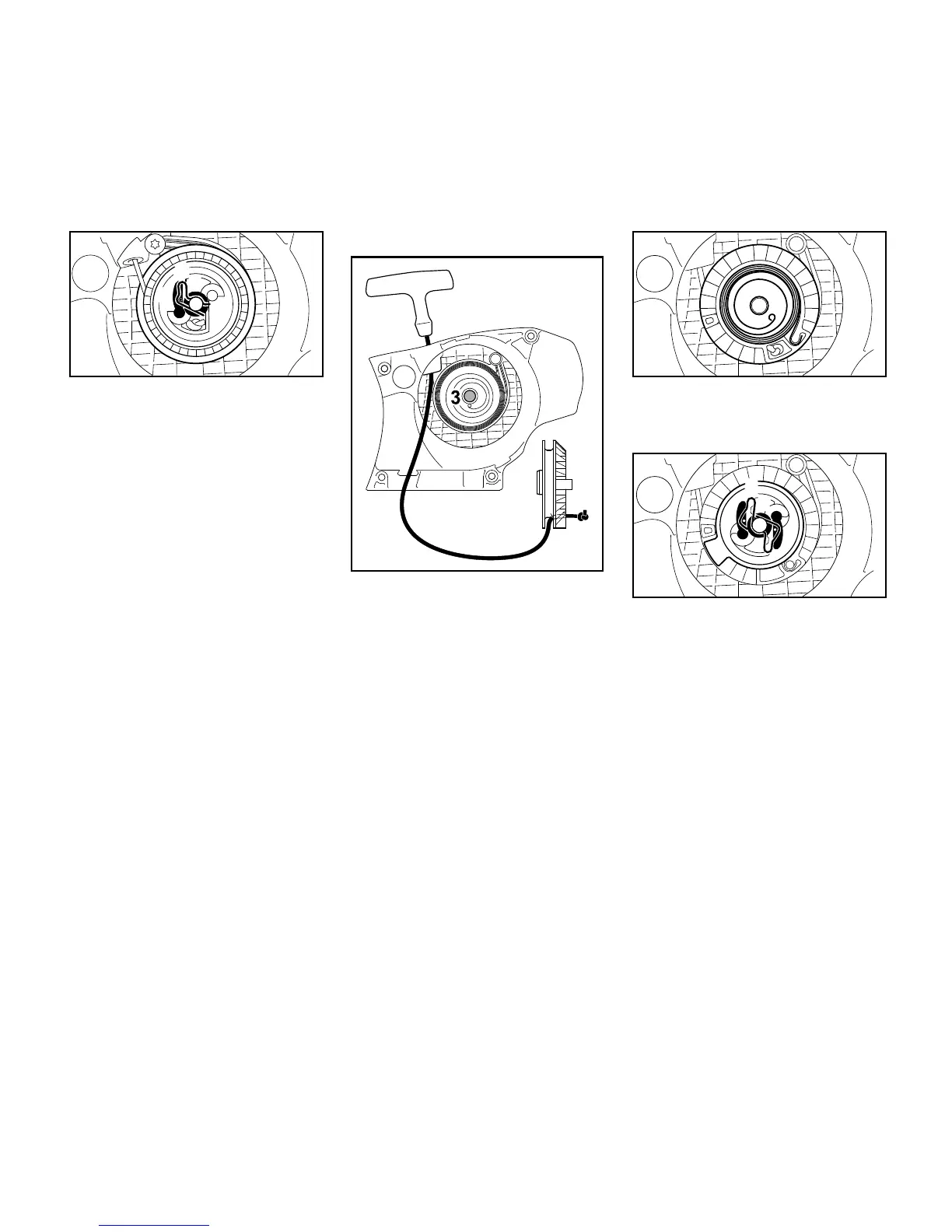

N Refit the pawl (4) in the rotor and
slip the washer (5) over the starter
post
N Press the spring clip (6) on to the
starter post and over the pegs of the
pawl with a screwdriver or suitable
pliers – the spring clip must point in
the clockwise direction – as shown
in the picture
Version with ErgoStart
N Thread the rope from above through
the rope guide bush (1) and rope
rotor (2) and secure with a simple
overhand knot
N Coat the bearing bore in the rope
rotor with non-resinous oil
N Slip the rope rotor onto the starter
post (3) – turn it back and forth a
little until the anchor loop of the
rewind spring engages
N Push the carrier onto the post until
the anchor loop of the spring
engages
N Refit the pawls (4) in the carrier and
slip the washer (5) over the starter
post
N Press the spring clip (6) on to the
starter post and over the pegs of the
pawl with a screwdriver or suitable
pliers – the spring clip must point in
the clockwise direction – as shown
in the picture
5
4
6
0011BA026 KN
1
0011BA027 KN
2
0011BA028 KN
5
4
6
4
0011BA029 KN
