Stihl MS 210 C User Manual

MS 210, MS 210 C, MS 230, MS 230 C, MS 250, MS 250 C
English
31
Depending on the version, your unit may
be equipped with a filler cap and fuel
tank with or without symbols.

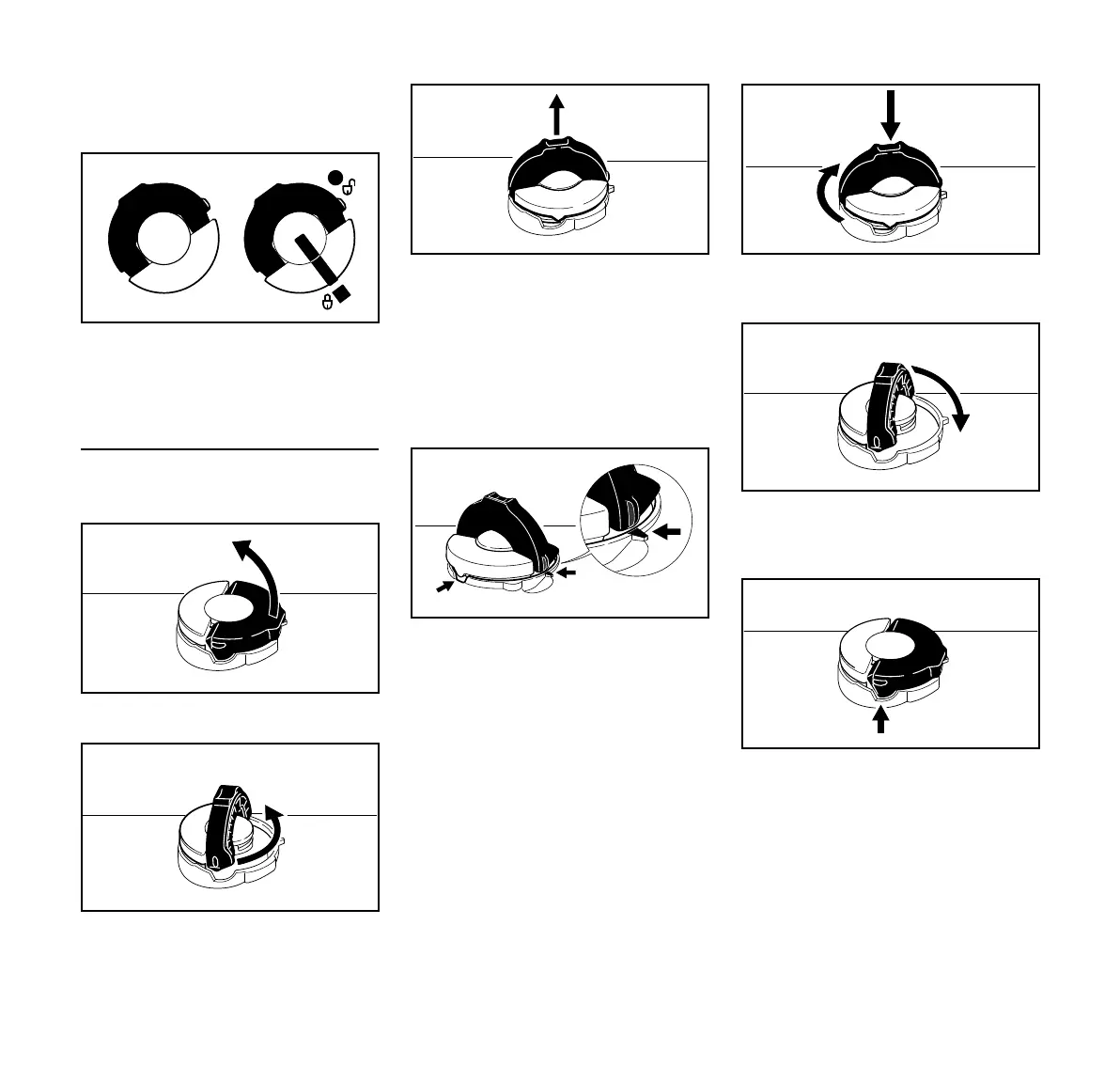

Filler cap without symbols
Opening
N Raise handle.
N Twist filler cap counterclockwise
(approx. 1/4 turn).
N Remove the filler cap.
Refueling
Take care not to spill fuel while fueling
and do not overfill the tank – leave
approx. 1/2" (13 mm) air space.
Closing
Handle is in an upright position:
N Insert the cap – positioning marks
on the cap and the fuel tank opening
must line up.
N The cap should drop fully into the
opening in this position.
N Push the filler cap down and twist it
clockwise until it engages.
N Flip the handle down.
Checking for proper closure
N The lug on the grip must engage
entirely in the recess (arrow), and
the grip must lie completely flush
with the top of the cap.
Left: Filler cap without symbols.
Right: Filler cap with markings and
symbols on cap and tank.
001BA240 KN
001BA218 KN
001BA219 KN
001BA224 KN
001BA220 KN
001BA221 KN
001BA222 KN
001BA223 KN

Stihl MS 210 C Specifications

General

Displacement	35.2 cm³
Weight	4.6 kg
Weight (without cutting equipment)	4.6 kg
Chain pitch	3/8" P
Guide Bar Length	35-40 cm
Bar length (recommended)	35-40 cm
