Stihl MS 210 C User Manual

MS 210, MS 210 C, MS 230, MS 230 C, MS 250, MS 250 C
English
49

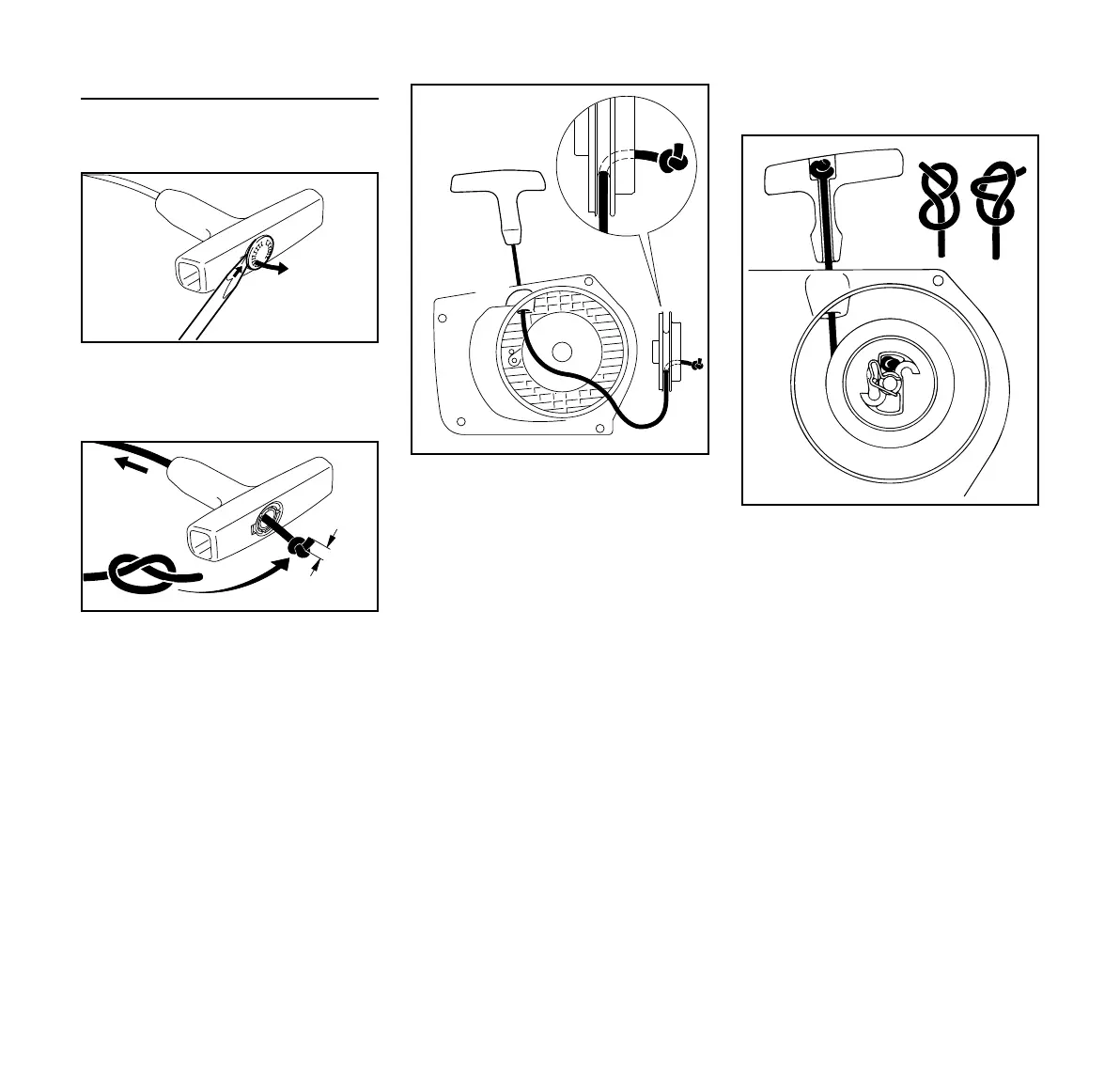

Replacing the Starter Rope
Models with ElastoStart
N Pry the cap (10) out of the grip.
N Remove the remaining rope from
the rotor and starter grip.
N Thread the new rope through the
starter grip and tie a simple
overhand knot. Dimension "a"
should be about 0.16 in (4 mm) to
0.23 in (7 mm).
N Pull the knot back into the grip.
N Refit the cap in the grip.
Thread the end of the rope
N through the top of the guide
bushing (11) and rope rotor (12)
and secure it with a simple
overhand knot.
N Go to "Installing the Rope Rotor".
Models without ElastoStart and models
with Easy2Start
N Remove the remaining rope from
the rotor and starter grip.
N Thread the new starter rope through
the rotor and secure it with a simple
overhand knot.
N Thread the other end of the rope
through the rope guide bushing
(from inside) and the underside of
the starter grip and secure it with
one of the special knots shown – do
not wind the rope onto the rotor.
10
208BA014 KN
a
135BA036 KN
12
11
108BA015 KN
135BA032 LÄ

Stihl MS 210 C Specifications

General

Displacement	35.2 cm³
Weight	4.6 kg
Weight (without cutting equipment)	4.6 kg
Chain pitch	3/8" P
Guide Bar Length	35-40 cm
Bar length (recommended)	35-40 cm
