Installing the Rope Rotor
Standard versions
N Coat the rope rotor bearing bore
with non-resinous oil.
N Slip the rotor over the starter post –
turn it back and forth to engage the
anchor loop of the rewind spring.
N Refit the pawl (9) in the rotor.
N Fit the washer (8) on the starter
post.
N Use a screwdriver or suitable pliers
to install the spring clip (7) on the
starter post and engage it on the
pawl's peg – the spring clip must
point clockwise as shown in the
illustration.
Versions with Easy2Start
N Coat the rope rotor bearing bore
with non-resinous oil.
N Slip the rotor over the starter post –
turn it back and forth to engage the
anchor loop of the rewind spring.
N Refit the pawls (9) in the rotor.
N Fit the washer (8) on the starter
post.
N Use a screwdriver or suitable pliers
to install the spring clip (7) on the
starter post and engage it on the
pawl's peg – the spring clip must
point clockwise as shown in the
illustration.
Tensioning the Rewind Spring
N Make a loop in the starter rope and
use it to turn the rope rotor six full
revolutions in the direction of the
arrow.
N Hold the rotor steady. Pull out and
straighten the twisted rope.
N Release the rope rotor.
N Release the rope slowly so that it
winds onto the rotor.
The starter grip must sit firmly in the rope
bushing. If the grip droops to one side:
Add one more turn on the rope rotor to
increase spring tension.

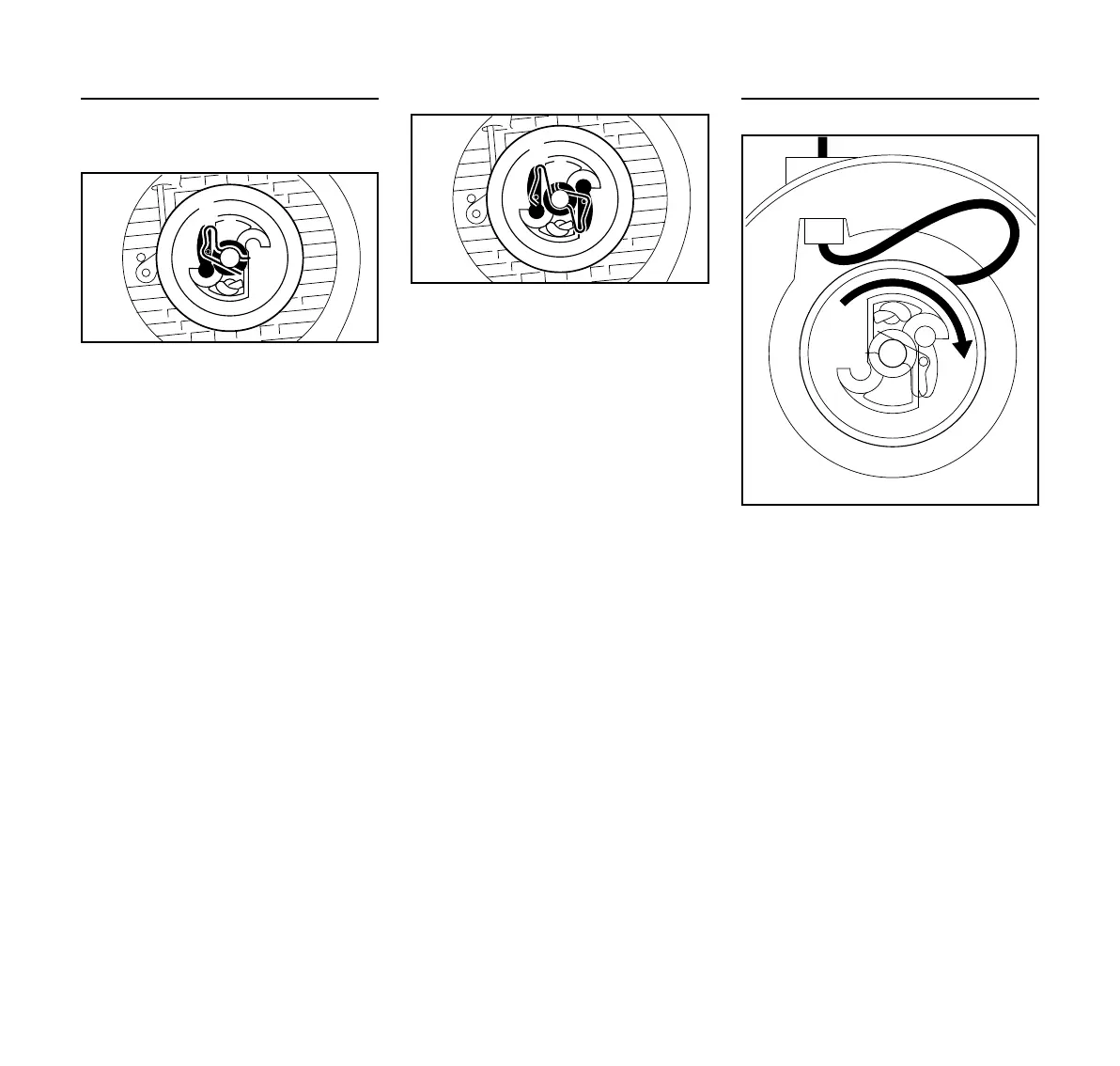

7
8
9
208BA013 KN
7
8
9
208BA017 KN
9
108BA014 KN

Stihl MS 210 C Specifications

General

Displacement	35.2 cm³
Weight	4.6 kg
Weight (without cutting equipment)	4.6 kg
Chain pitch	3/8" P
Guide Bar Length	35-40 cm
Bar length (recommended)	35-40 cm
