Stihl MS 230 Service Manual

65MS 210, MS 230, MS 250
Easy start machines only:

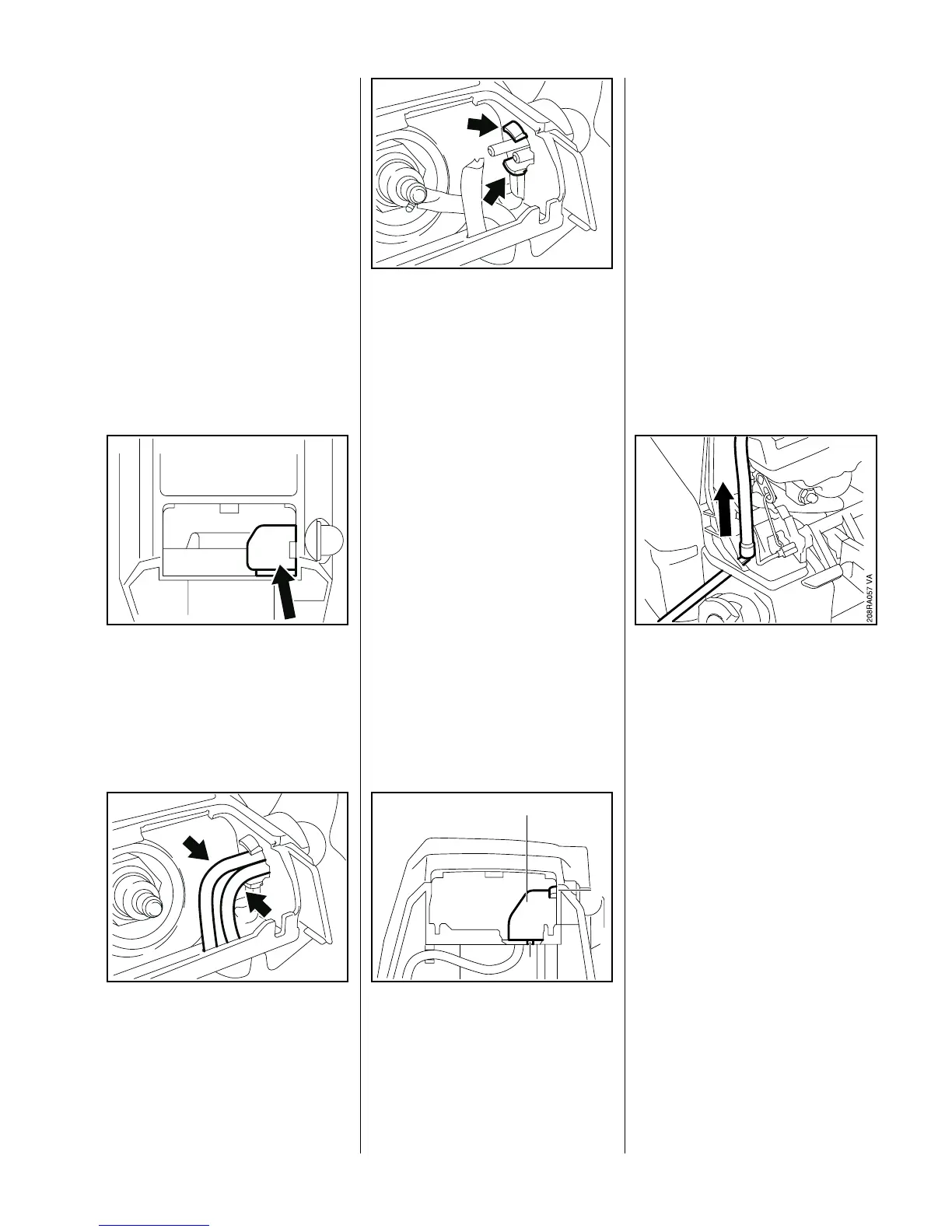

– Remove the air filter – b 11.1.
– Remove the shutter – b 8.
– Remove the spark plug boot.
: Carefully push cover, if fitted, with
thumb in direction of arrow until it
is released from its seat.
– Remove the cover.
VA
135RA219
: Disconnect hoses from the
connectors.
VA
135RA220
: Carefully squeeze the retaining
tabs together.
– Pump the fuel pump out of its
seat in the handle housing.
Reassemble in the reverse
sequence.
VA
135RA221
– Push home the fuel pump (short
intake stub facing the air filter)
until retaining tabs snap into
position.
– Connect suction hose from
carburetor to the short stub on
right.
– Connect hose from connector to
long stub on left.
The hoses must not be
interchanged.
: Push the cover (1) under the
upper retaining tab (2) and push
the pin (3) into the bore in the
handle housing.
VA
208RA041
1
3
2
The hoses for the tank vent and fuel
supply must not be damaged in any
way. Replace them if necessary.
– Remove the filter housing –
b 11.2.2.
Machines without manual fuel
pump:
: Remove vent hose from tank.
