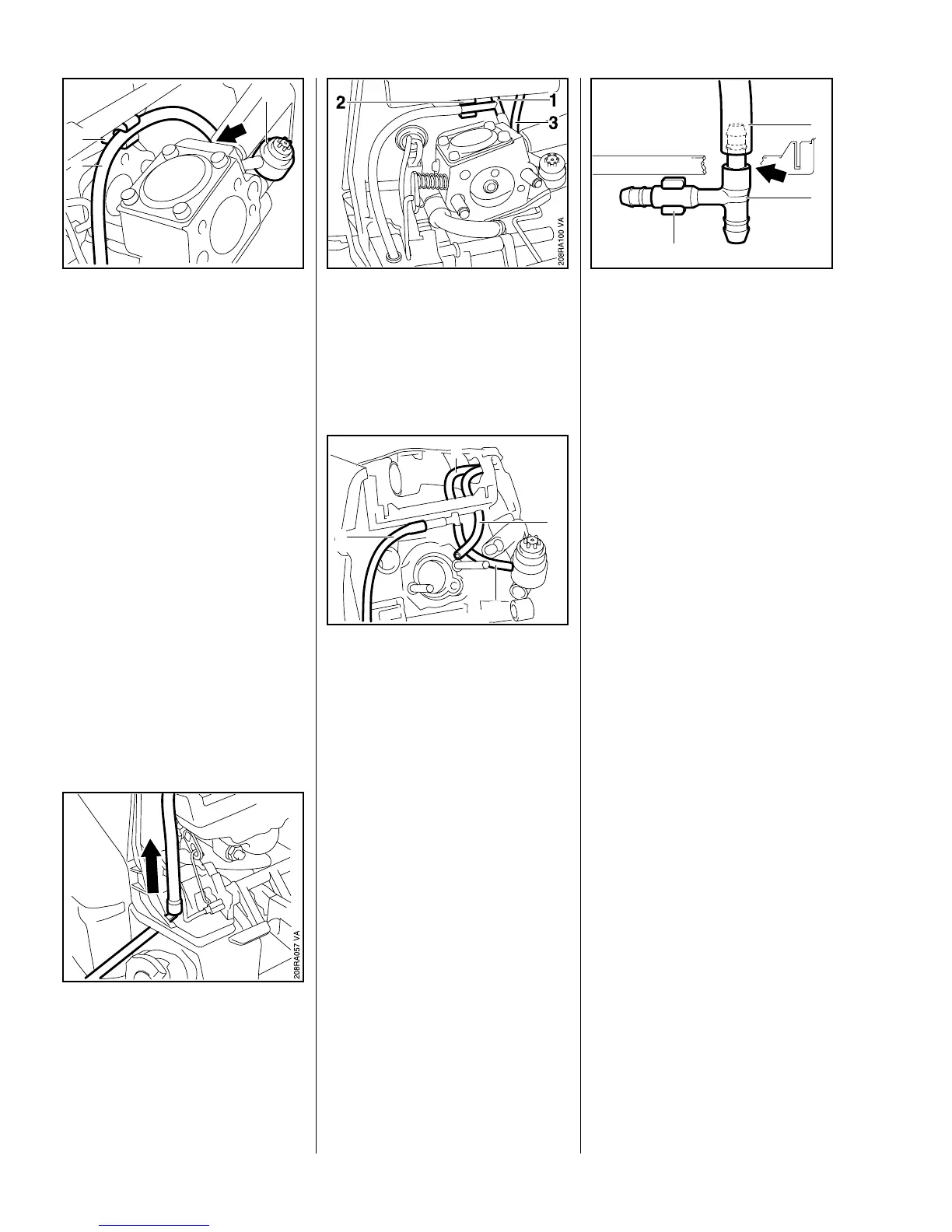

66 MS 210, MS 230, MS 250
: Detach suction hose (2) from
retainer (3) on handle housing.
: Pull suction hose (2) off the stub
on the tank vent (1).
Remove the carburetor –
b 11.2.
VA
208RA108
1
3
2
If hose is damaged, install a new
one of the following size:
5.7x3.1x166 mm
Reassemble in the reverse
sequence.
Machines with manual fuel pump:
: Remove the vent hose from the
tank.
: Pull the connector (1) out of the
retainer (2).
Pull hose (3) off carburetor stub.
Remove the carburetor –
b 11.2.
If hoses are damaged, install new
ones of the following size:
Hose (1): 5.7x3.1x106 mm
Hose (2): 5.4x2.2x38 mm
Hose (3): 5.7x3.1x51 mm
Hose (4): 5.4x2.2x65 mm
VA
208RA096
2
1
3
4
On non-EU version:
Hose (4): 5.4x2.2x100 mm
Reassemble in the reverse
sequence.
: When assembling, connect the
hose (1) to the thin stub (arrow) of
the connector (2) and the manual
fuel pump to the long left-hand
stub.
: Push the connector (2) with hose
upwards into the handle housing.
VA
208RA092
3
2
1
Engage the connector (2) in the
retainer (3) on the handle
housing.
Reassemble all other parts in the
reverse sequence.
